Name: Chauvin Arnoux C113 Clamp meter adapter A/AC reading range: 0.1 - 1200 A
Brand: Chauvin Arnoux
SKU: 2199882
Availability: SoldOut

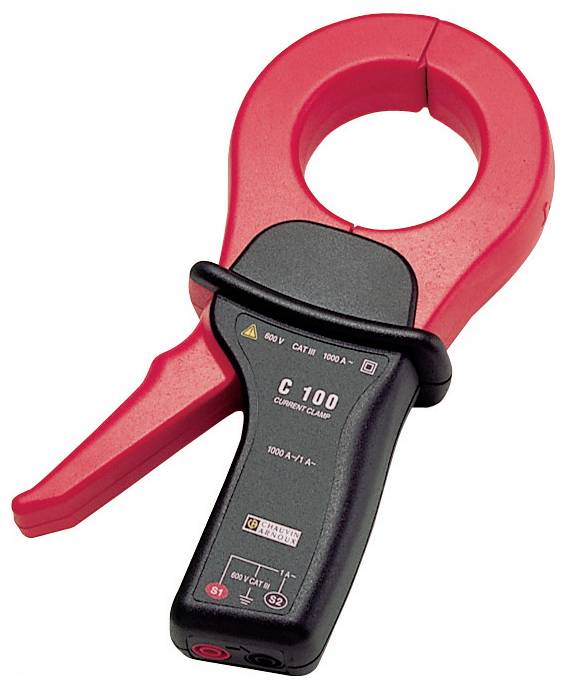

A red clamp ammeter, model 'C 100', for measuring electric current. Displays scales for current strengths up to 1000 A.

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 505.00 / piece)

€ 505.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

C-pliers - powerful clamp transformer for 1000 A !

N/A
Opening range of current clamps 53 mm

Technical specifications

Transmission ratio (input/output): 1000/1

Opening range of current clamps: 53 mm

Product type: Clamp meter adapter

Type B: 4 mm plug

: Manufacturer's standards (no certificate)

A AC reading range (min.): 0.1 A

Amperage reading range AC (max.): 1200 A

Basic accuracy: 0.3 %

Dim: (L x W x H) 45 x 216 x 111 mm

Current reading: AC

Reading category: CAT III 600 V
CAT IV 300 V

Weight: 550 g

Output signal (max.): 1 A

Max. frequency: 10 kHz

Width: 216 mm

Height: 111 mm

Length: 45 mm

Variants(All information include VAT, plus shipping costs)

A AC reading range (min.)

Amperage reading range AC (max.)

Calibrated to

Current reading

Reading category

Type B

Chauvin Arnoux C113 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199882

Unavailable

Conrad Electronic

This article

0.1 A

1200 A

Manufacturer's standards (no certificate)

CAT III 600 V

4 mm plug

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 505.00^*

Chauvin Arnoux C100 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199893

Dispatches on Mon 9 Nov

Conrad Electronic

0.1 A

1200 A

Manufacturer's standards (no certificate)

CAT III 600 V

4 mm socket

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 419.00^*

Chauvin Arnoux C102 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199915

Dispatches on Thu 5 Nov

Conrad Electronic

0.1 A

1200 A

Manufacturer's standards (no certificate)

CAT III 600 V

4 mm socket

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 445.00^*

Chauvin Arnoux C103 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199931

Dispatches on Thu 5 Nov

Conrad Electronic

0.1 A

1200 A

Manufacturer's standards (no certificate)

CAT III 600 V

4 mm plug

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 465.00^*

Chauvin Arnoux C106 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199908

Dispatches on Tue 3 Nov

6 Piece(s)Conrad Electronic

0.1 A

1200 A

Manufacturer's standards (no certificate)

CAT III 600 V

4 mm socket

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 535.00^*

Chauvin Arnoux C107 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199925

Dispatches on Thu 5 Nov

Conrad Electronic

0.1 A

1200 A

Manufacturer's standards (no certificate)

CAT III 600 V

4 mm plug

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 549.00^*

Chauvin Arnoux C112 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199911

Dispatches on Tue 3 Nov

29 Piece(s)Conrad Electronic

0.1 A

1200 A

Manufacturer's standards (no certificate)

CAT III 600 V

4 mm socket

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 605.00^*

Chauvin Arnoux C122 Clamp meter adapter A/AC reading range: 1 - 1200 A

Item no:2199884

Dispatches on Thu 5 Nov

Conrad Electronic

1 A

1200 A

Manufacturer's standards (no certificate)

CAT III 600 V

4 mm socket

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 535.00^*

Chauvin Arnoux C148 Clamp meter adapter A/AC reading range: 1 - 1200 A

Item no:2199926

Dispatches on Fri 6 Nov

Conrad Electronic

1 A

1200 A

Manufacturer's standards (no certificate)

CAT III 600 V

4 mm socket

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 749.00^*

Chauvin Arnoux D30CN Clamp meter adapter A/AC reading range: 1 - 3600 A

Item no:2199864

Dispatches on Thu 5 Nov

Conrad Electronic

1 A

3600 A

Manufacturer's standards (no certificate)

CAT III 600 V

4 mm plug

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 685.00^*

Documents & Downloads

Datasheet

Datasheet 2199882 Chauvin Arnoux C113 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

User & Safety Instructions

User & Safety Instructions 2199882 Chauvin Arnoux C113 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Description

The "C" series contains powerful clamp transformer for 1000 A. The round shape of the jaws and the uniform winding of the coil guarantee a high accuracy and minimum phase shift.
The optimum adjustment of the magnetic circuit through a pendulum-joint system and a patented support system for the progressive opening of the jaw plates facilitate the operation.
The 52mm diameter of the wrap allows CAT III 600V measurements to be made on most industrial and office building conductors.
Due to the low phase shift and the high linearity, this clamp transformer equipped with a core made of µ-metal is excellently suitable for power measurements.
