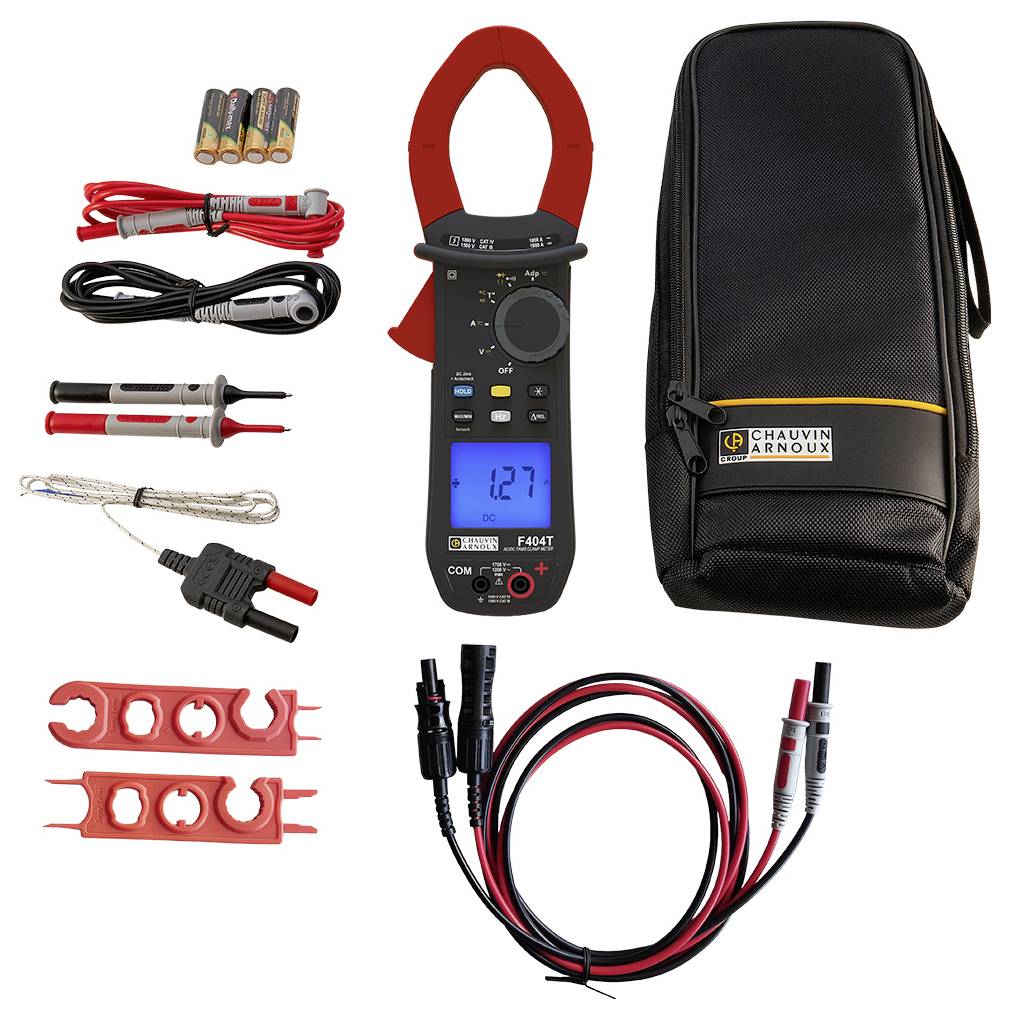

Chauvin Arnoux F404T Clamp meter Digital incl. bag CAT III 1500 V, CAT IV 1000 V Display (counts): 10000

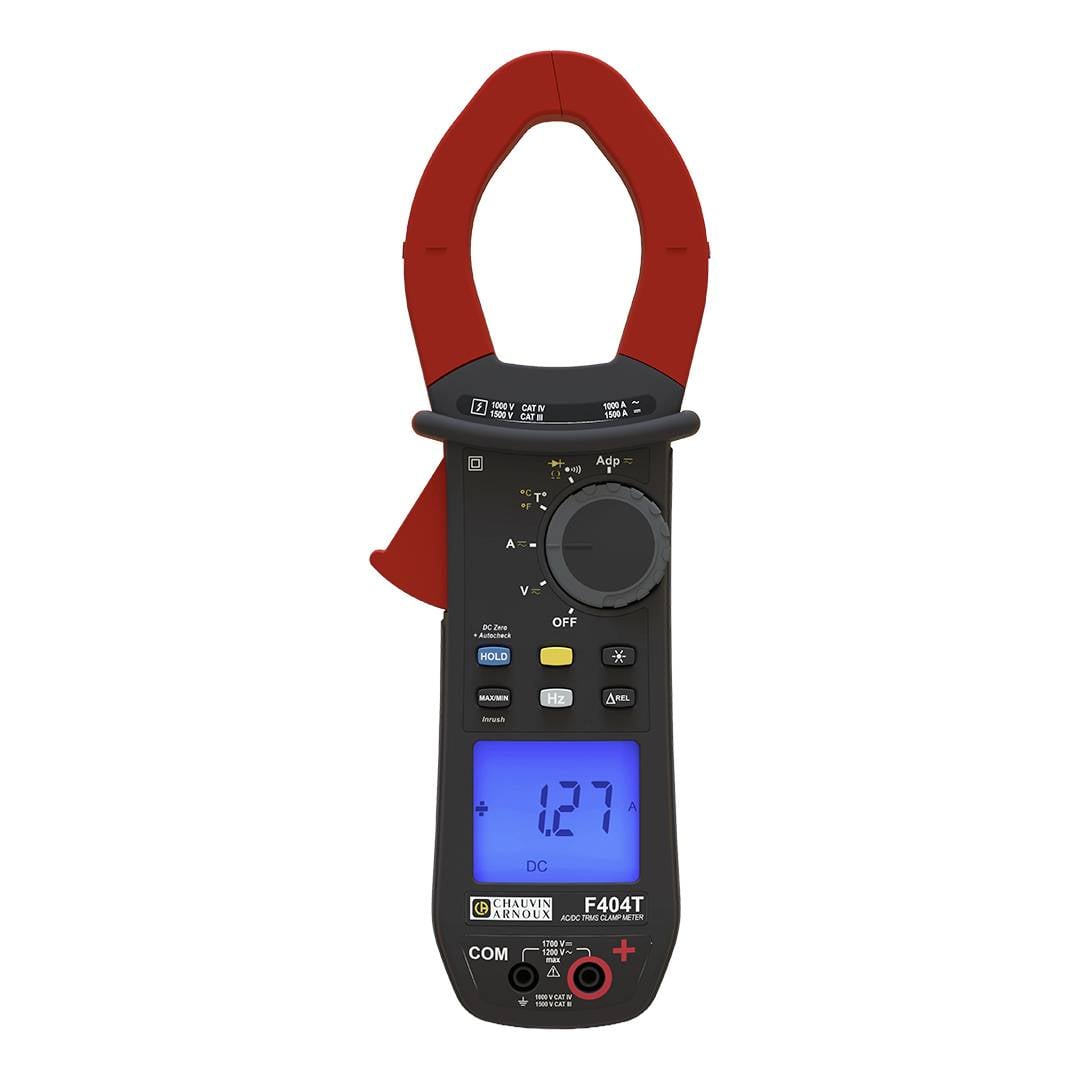

F404T - AC/DC High Measurement Clamp for Photovoltaic Systems with Patented Autocheck Function
The F404T is an AC/DC High Measurement Tool specially developed for working on photovoltaic systems. It enables reliable verification of the absence of DC current in module strings and thus provides the basis for safe working before any intervention at the system. The most important feature: Thanks to the patented auto-check function, the meter can automatically test the functionality before performing the actual current free testing.

When a string is opened that permanently carries direct current, there is a risk of an arc that could endanger people and cause serious damage to property. An incorrectly configured or faulty standard clamp-on ammeter can incorrectly indicate zero current and thus represent an additional source of risk. The F404T meets this risk with a built-in self-test function, which confirms proper operation of the pliers in three easy steps before each test. In addition, it covers a 12-bit TRMS recording method for a wide measurement spectrum for AC and DC currents and voltages and supports the point temperature monitoring of photovoltaic modules with a type K thermo element.

Your benefits at a glance
· Patented autocheck function for reliable checking of current freedom before each operation
· Auto check function confirms the correct function of the clamp before each measurement and makes the current free testing of PV strings reliable
· DC measurement ranges up to 1700 V and 1500 A reliably cover the requirements of modern photovoltaic systems
· Safety category 1000 V CAT IV / 1500 V CAT III fulfills the highest requirements
· High accuracy by quick digital 12-Bit TRMS-recording even in case of strongly distorted signals
· Robust housing with IP54 and standard fall strength from 2 meters height is also suitable for demanding field conditions
· Type K thermo element enables point temperature control at photovoltaic modules without additional device

Typical areas of application:

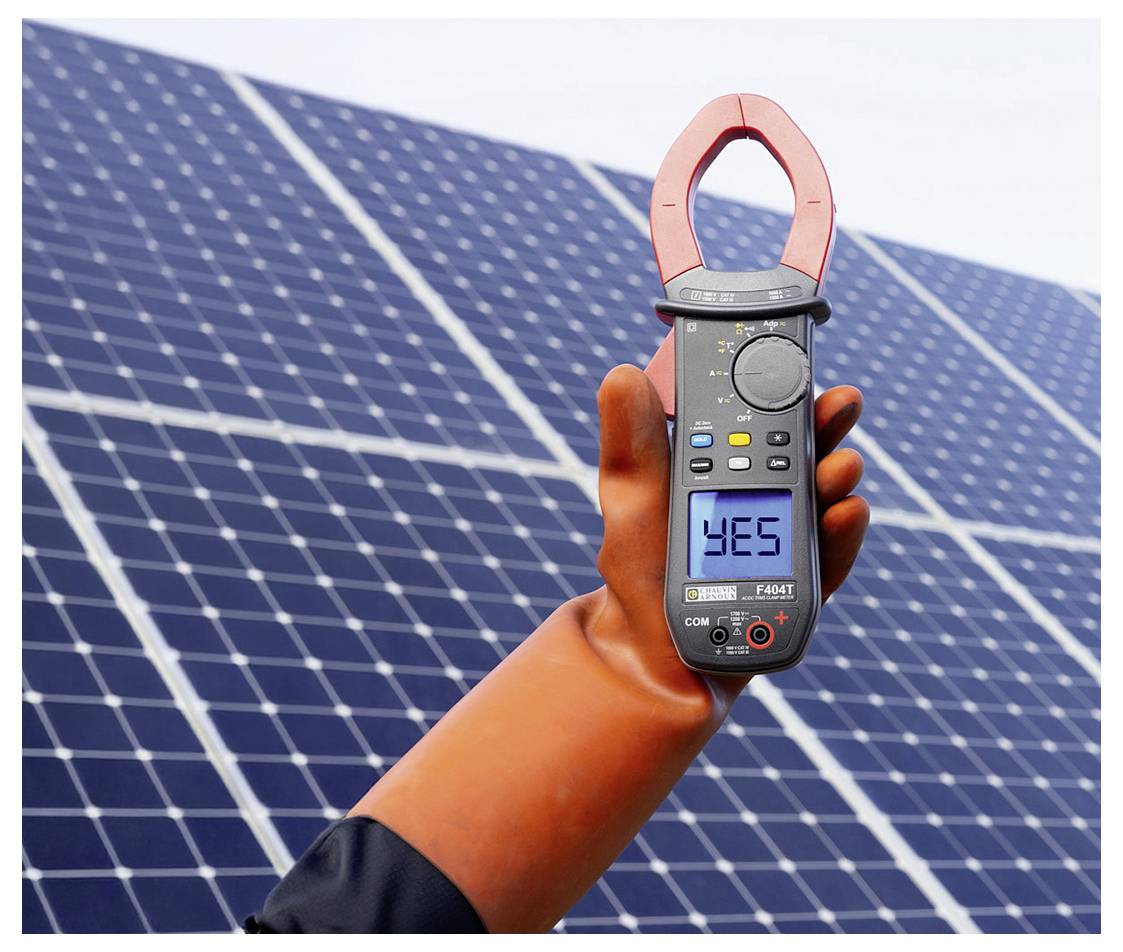

· Testing of DC current freedom before maintenance and repair work at photovoltaic systems
· Replacement of modules, connectors or defective cables in PV strings
· Work on the inverter or on fuses of solar systems
· Monitoring the functionality of a photovoltaic system during operation
· Temperature control on the back of photovoltaic modules

Technical highlights
· DC current range up to 1500 A, AC current range up to 1000 A (1500 A peak)
· DC voltage range to 1700 V, AC voltage range to 1200 V (1700 V peak)
· Protection class IP54, wrap diameter 48 mm
· Temperature measurement type K from -60.0 °C to +1000 °C.
· Additional functions Min / Max, ΔREL, True Inrush, Adapter function and automatic switch-off
