Chauvin Arnoux Network diagnostics 3-phase Clamp meter, Data logger

This educational package includes a mains analyzer C.A 8336, 4 suitable current transformers MN93A as well as a textbook: Training system network analysis. The textbook is intended for teachers and learners to introduce the topic of network analysis and to gain a basic understanding of network effects. It is suitable as an introduction to the topic and highly practice-oriented - it includes practical tests with tasks and solutions.

More information on the C.A 8336 network analyzer:

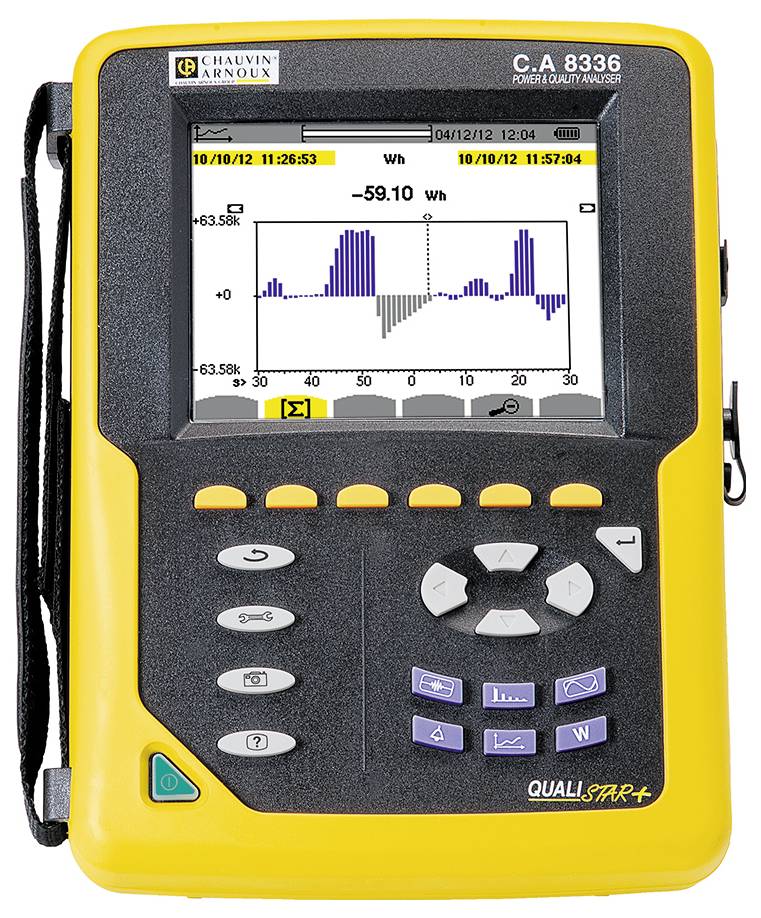

The Qualistar+ C.A 8336 is particularly suitable for maintenance and testing services in industrial and commercial plants. It provides an immediate image of the most important power quality parameters. With its functions, this analyzer is particularly suitable for maintenance and repair. The complete energy balance of a plant can be created.
The C.A 8336 has the functions Inrush and TrueInrush for dimensioning electrical systems and detecting switching errors.

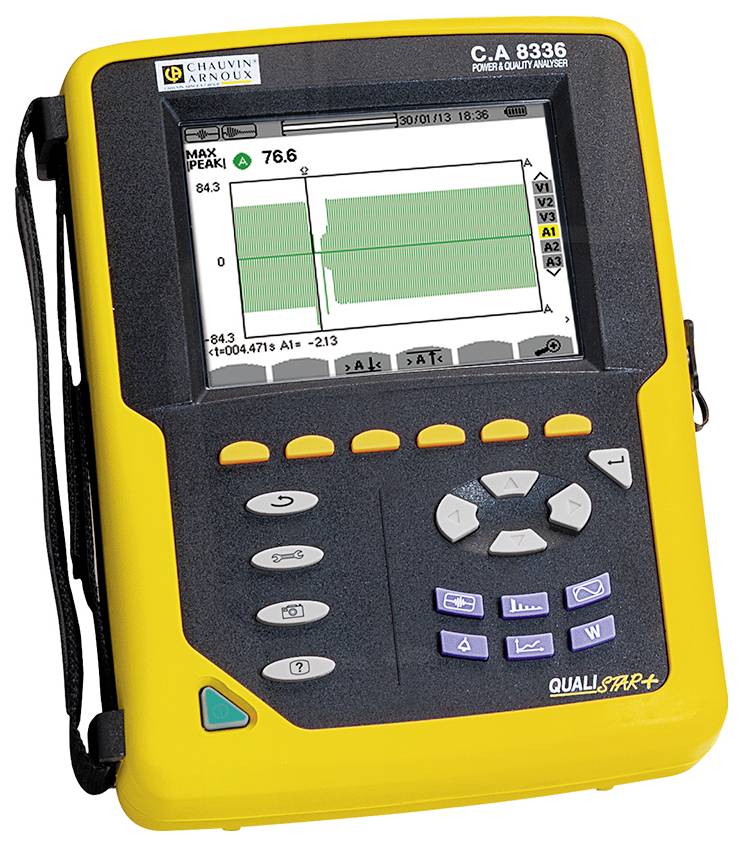

The compact, handy device offers additional calculation and operating functions. The C.A 8336 has 4 voltage and current measuring channels each. With the C.A 8336 all parameters, transients, alarms and waveforms are recorded and stored simultaneously.

The current transformers used are automatically recognized by the C.A 8336 when connected. Various current transformers can be connected and the setting of the transmission ratio allows direct reading of the measured values.

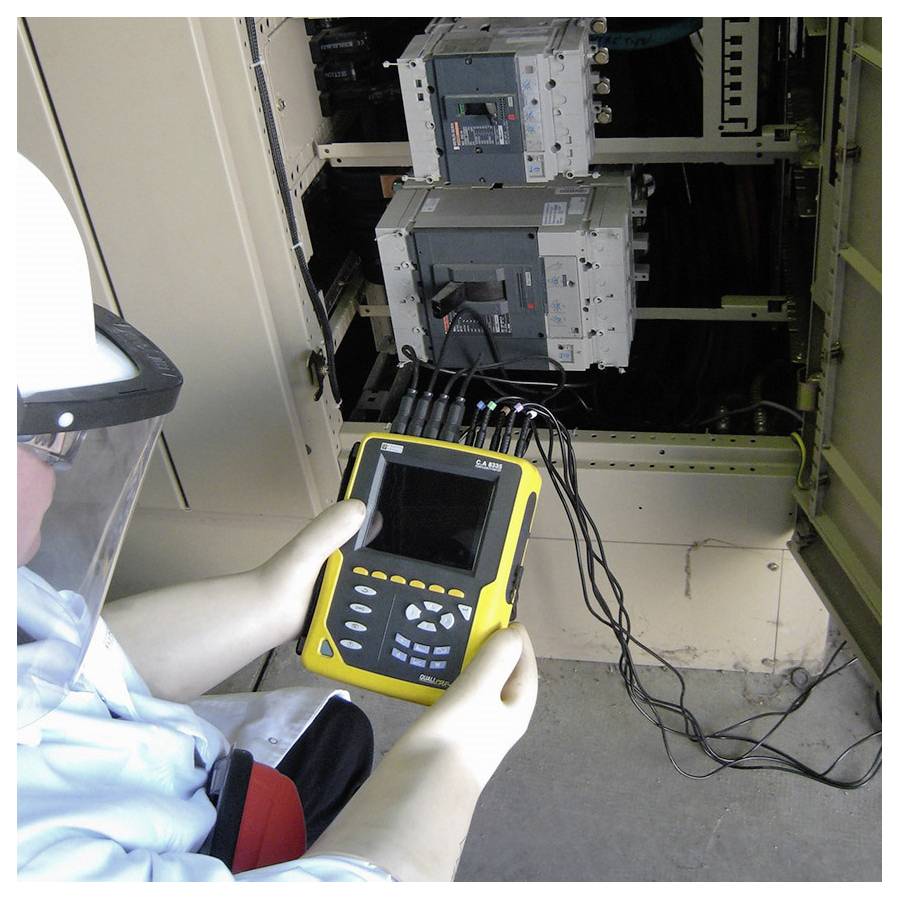

The device is designed for on-site work:
Direct access to the most important functions (settings, etc.)
Direct access to measurement functions (harmonics, flicker, etc.)
Voltage and current inputs with color markings
Excellent readable, large TFT color screen
Mains-independant for 13 hours

The Qualistar+ C.A 8336 can be used in a variety of ways due to its multitude of functions. It can be used in cat III to 1000 V and cat IV to 600 V systems.

Software
The PAT software and DataView® software are available as standard for processing the values measured with the Qualistar. They enable settings, data transfer and processing, and analysis. DataView® can also be used to generate standard test reports on the voltage quality characteristics.

Special accessories
The ESSAILEC test lead can be used to perform tests on counters, on built-in protective relays or on secondary circuits of voltage or current transformers without disturbing or interrupting the power supply.

Reeling box
This practical cable-rolling box has a magnetic adhesive and has the Multifix-holder system. In the removable box, the user can roll in test leads with banana plugs for voltage measurements or the cables of the MiniFlex® MA193-250 for current measurements and unwind in the length as required - thus the test leads are always well cleaned.

Power adapter PA31ER
With it, the Qualistar+ can be directly supplied with power via a mains phase conductor with 100 V to 1000 V, AC or DC. It is connected to the voltage inputs and has the following technical data: IP53, IEC 61010 cat III 1000 V / cat IV 600 V.

All Qualistar+ are equipped with a set of colored rings and pins for easier detection of test leads and inputs and for color identification according to country specifications.
Wide range of current transformers for currents from 5 mA to 10 kA

This text is machine translated.
