Name: Cimco Gürteltasche Solar inkl. 5 Tlg 170475 Electrical contractor, Trades person Tool bumbag (+ tools) 6-piece
Brand: Cimco
SKU: 2827129
Availability: InStock

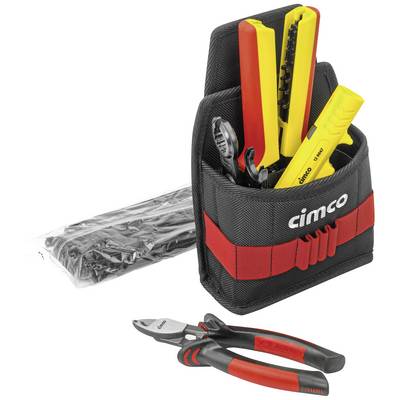

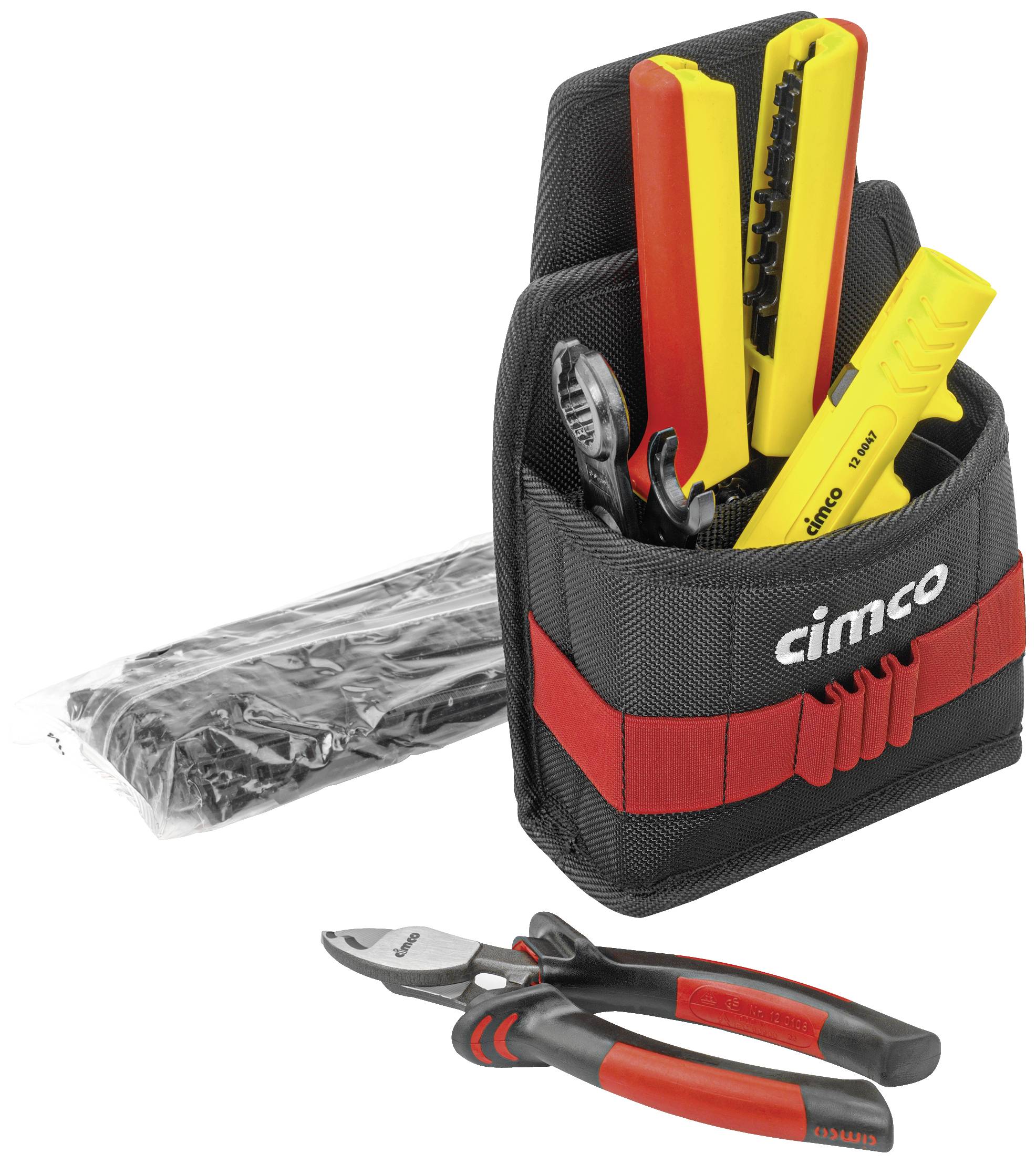

'Tool bag with a spanner, yellow wire strippers and cable ties. A side cutter is positioned to the side.'

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 3 Nov

81 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 315.00 / piece)

€ 315.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Belt bag Wave Solar

Built-in vibration function keeps the pouch in balance at all timesIdeal for work on roof, ladder or other inclined work placesWith belt attachment and numerous straps and straps

Technical specifications

Product type: Tool bumbag (+ tools)

Range of uses: Electrical contractor
Trades person

Factory colour: Black
Red

Length: 170 mm

Width: 70 mm

Height: 225 mm

Dim: (L x W x H) 170 x 70 x 225 mm

Weight: 1250 g

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2827129 Cimco Gürteltasche Solar inkl. 5 Tlg 170475 Electrical contractor, Trades person Tool bumbag (+ tools) 6-piece

User & Safety Instructions

User & Safety Instructions 2827129 Cimco Gürteltasche Solar inkl. 5 Tlg 170475 Electrical contractor, Trades person Tool bumbag (+ tools) 6-piece

Description

Solar Wave XL belt pouch with vibration function and 5 tools.

This text is machine translated.

Features

Click 'n' crimp PV MC 4Solar crimping pliers for all common MC4 solar connectors 2.5 – 6 mm²Ratchet mechanism with forced release for consistently high crimp qualityHigh leverage for low force requiredErgonomic 2-component grip sleevesProfile insert can be changed without tools1,000 V VDE CABLE SHEARS DUOCUTCable shears for copper and aluminum cableLarge blade for sheath cables up to max. 10 mm øSmall cutter for single wires up to max. 4 mm øVDE/GS tested, according to IEC 60900 and VDE 0682/Part 201Longitudinal cut possibleSTRIPPER PV-STRIPFor PV-lines, power and safety cables of 2.5 - 6 mm²Length stop 8.5 and 15 mm, for connection of popular PV plugsBlades do not have to be adjusted to cut depthBy fastenerPhoto photovoltaic MC4 unlocking toolUnlocking tool for releasing the connectors of photovoltaic connectorsCABLE TIES, UV -RESISTANT, BLACKUV-resistant cable ties made of PA 6.6 with up to 10 times longer life than standard cable tiesCold resistant up to -40°C, Ideal for outdoor useSelf-extinguishing, flammability class UL 94 V-2Temperature resistance -40 °C to +85 °C

Scope of delivery

1x belt pouch WAVE 17 04761x click'n'crimp PV MC4 10 60341x cable shears DUOCUT 12 01081x Stripper PV-STRIP 12 00471x Photovoltaic-MC 4 Unlocking tool 18 00041x VPE (100 pieces) 4.5 x 200 mm cable ties, UV and cold resistant 18 1722

Description

Solar Wave XL belt pouch with vibration function and 5 tools.

This text is machine translated.

Features

Click 'n' crimp PV MC 4Solar crimping pliers for all common MC4 solar connectors 2.5 – 6 mm²Ratchet mechanism with forced release for consistently high crimp qualityHigh leverage for low force requiredErgonomic 2-component grip sleevesProfile insert can be changed without tools1,000 V VDE CABLE SHEARS DUOCUTCable shears for copper and aluminum cableLarge blade for sheath cables up to max. 10 mm øSmall cutter for single wires up to max. 4 mm øVDE/GS tested, according to IEC 60900 and VDE 0682/Part 201Longitudinal cut possibleSTRIPPER PV-STRIPFor PV-lines, power and safety cables of 2.5 - 6 mm²Length stop 8.5 and 15 mm, for connection of popular PV plugsBlades do not have to be adjusted to cut depthBy fastenerPhoto photovoltaic MC4 unlocking toolUnlocking tool for releasing the connectors of photovoltaic connectorsCABLE TIES, UV -RESISTANT, BLACKUV-resistant cable ties made of PA 6.6 with up to 10 times longer life than standard cable tiesCold resistant up to -40°C, Ideal for outdoor useSelf-extinguishing, flammability class UL 94 V-2Temperature resistance -40 °C to +85 °C

Scope of delivery

1x belt pouch WAVE 17 04761x click'n'crimp PV MC4 10 60341x cable shears DUOCUT 12 01081x Stripper PV-STRIP 12 00471x Photovoltaic-MC 4 Unlocking tool 18 00041x VPE (100 pieces) 4.5 x 200 mm cable ties, UV and cold resistant 18 1722
