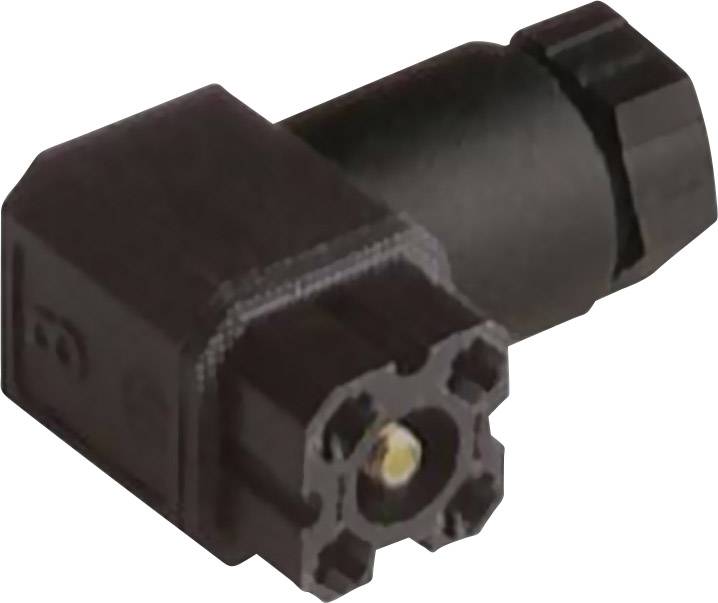

Connector for control voltage of G Series Black G 4 W 1 F Pins:4 932 157-100-200 Hirschmann Content: 200 pc(s)
EAN:
Part number:
Item no:
Number of pins
4
Pins
4
Total no. of pins
4 + PE
Manufacturer part #
932 157-100-200
Factory colour
Black
Datasheet (PDF)
Number (Package size 200 pc(s))
Total (€ 2.71 / piece)
€ 542.02
plus VAT.
Technical specifications
- Cable gland PG 7, volume resistance ≤ 4 milliohms
- Pins
4
- Number of pins
4
- Total no. of pins
4 + PE
- Manufacturer part #
932 157-100-200
- Factory colour
Black
- Industrial packaging
Yes
- Content
200 pc(s)
- Type
G 4 W 1 F
- Leading contact (PE)
Yes
- Nominal voltage (details)
50 V
- Nominal current (details)
10 A
Documents & Downloads
Datasheet
Datasheet 1718504 Connector for control voltage of G Series Black G 4 W 1 F Pins:4 932 157-100-200 Hirschmann Content: 200 pc(s)
Description
Compact and robust angle connector series, protected against dust and water splash as per IP65 (DIN VDE 0627/IEC61984) · Cable sockets are freely attachable as in with the finished molded cables in various lengths · Mounted connector with solder and crimp contacts for also fixing by ultrasonic welding of light curtains · Very small measurement, and thus ideally suited for electrical connections in hydraulic and pneumatic controls, even with very limited space.
