Name: Connfly Pin strip (standard) No. of rows: 1 Pins per row: 20 DS1022-1*20RDF11-B 1 pc(s) Bulk
Brand: Connfly
SKU: 2860011
Availability: InStock

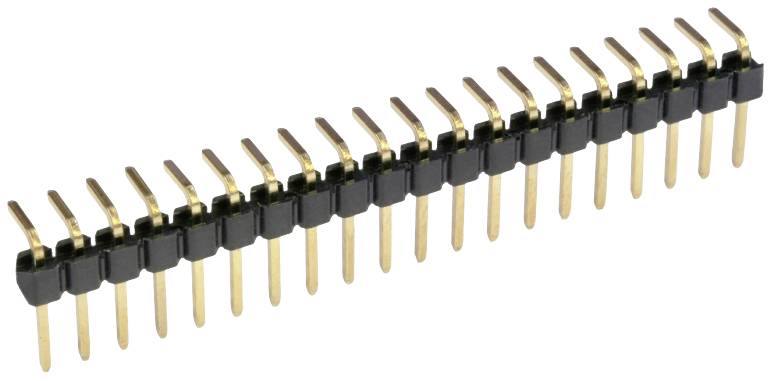

A single-row pin header with 20 golden contacts, suitable for electronic connections on printed circuit boards.

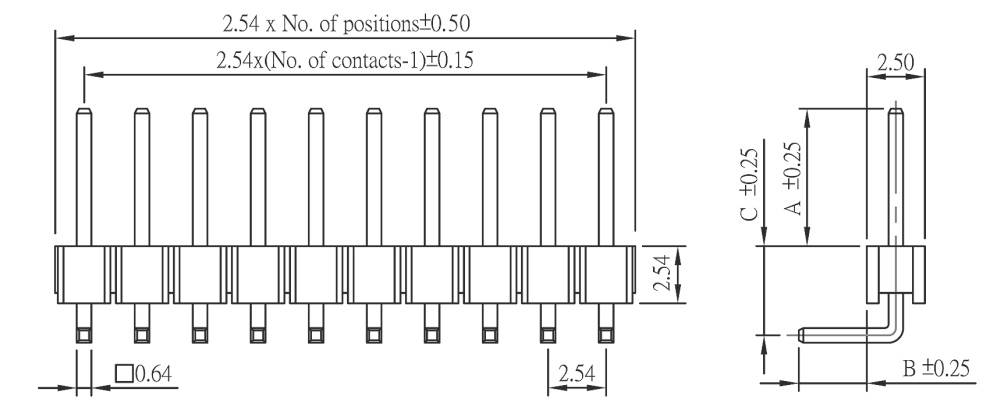

Technical drawing of an electrical connector with dimensions in millimetres. Contains pins, spacings, and tolerance values.

1/2

Packaging type

Bulk

Connector type

Pin strip, right angle

Product type

Pin strip (standard)

No. of rows

Total number of pins

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Tue 3 Nov

670 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 20

Total (€ 0.20 / piece)

€ 0.20

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Terminal strip 1x20p. Angled RM 2.54

Content 1 pc(s)
No. of rows 1
Pins per row 20

Technical specifications

Packaging type: Bulk

Connector type: Pin strip, right angle

Product type: Pin strip (standard)

No. of rows: 1

Pins per row: 20

Total number of pins: 20

CS: 2.54 mm

Connection: Solder pins

Factory colour: Black

Pin shape: Square

Nominal current: 3 A

Nominal current - rounded value: 3 A

Contact surface: Gold plated

Contact material: Copper alloy

Case material: PBT

Pin length (receptacle): 6 mm

Pin length (PCB): 3 mm

Separable: Yes

Connector orientation: Parallel (to the PCB)

Manufacturer part #: DS1022-1*20RDF11-B

Content: 1 pc(s)

Max. temperature: 85 °C

Min. temperature: -25 °C

Type: DS1022-1*20RDF11-B

UKCA: yes
