Name: Connfly Pin strip (standard) No. of rows: 2 Pins per row: 8 DS1022-2*8RF11-B 1 pc(s) Bulk
Brand: Connfly
SKU: 2860010
Availability: InStock

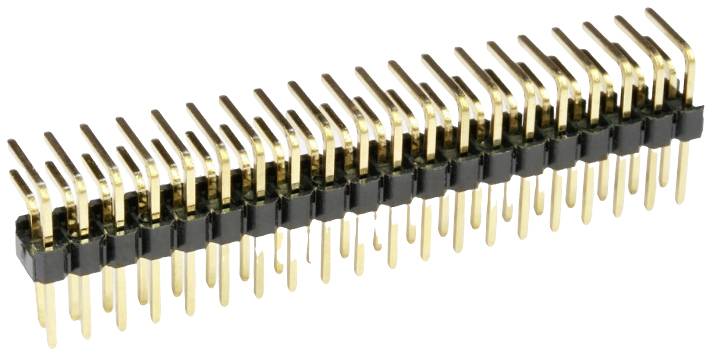

Double-row, rectangular connector with gold-plated pins for electrical connection on printed circuit boards.

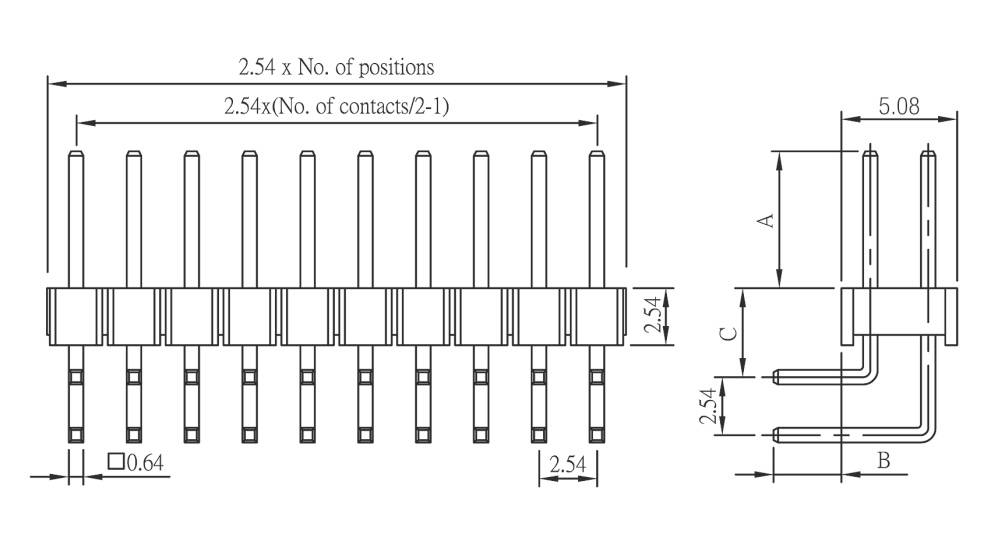

Electrical connection diagram, showing pin layout and dimensions: 2.54 mm pitch, contact length 5.08 mm, width 0.64 mm.

1/2

Packaging type

Bulk

Connector type

Pin strip, right angle

Product type

Pin strip (standard)

No. of rows

Total number of pins

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Mon 2 Nov

274 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 10

Total (€ 0.11 / piece)

€ 0.11

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Pin strip/connector 2x8-pin Angled RM 2.54

Content 1 pc(s)
No. of rows 2
Pins per row 8

Technical specifications

Packaging type: Bulk

Connector type: Pin strip, right angle

Product type: Pin strip (standard)

No. of rows: 2

Pins per row: 8

Total number of pins: 16

CS: 2.54 mm

Connection: Solder pins

Factory colour: Black

Pin shape: Square

Nominal current: 3 A

Nominal current - rounded value: 3 A

Contact surface: Gold plated

Contact material: Copper alloy

Case material: PBT

Pin length (receptacle): 6 mm

Pin length (PCB): 3 mm

Separable: Yes

Connector orientation: Parallel (to the PCB)

Manufacturer part #: DS1022-2*8RF11-B

Content: 1 pc(s)

Max. temperature: 85 °C

Min. temperature: -25 °C

Type: DS1022-2*8RF11-B

UKCA: yes
