Contrik 1027365 PG cable H07RN-F1X 25 mm² Black 1 pc(s)
EAN:
Part number:
Item no:
Product type
PG cable
Cable type
H07RN-F1X
Cross section (each core)
25 mm²
Content
1 pc(s)
Cross section
25 mm²
Datasheet (PDF)
Number
Total (€ 441.18 / piece)
€ 441.18
plus VAT.
Technical specifications
- IP65 protection (when connected)
- Contactor resistance 0.3 mΩ
- Cable sheath type: Rubber
- Polycarbonate Sleeve (PC)
- Lifetime: Over 500 mating cycles per connector
- Product type
PG cable
- Cable type
H07RN-F1X
- Cross section (each core)
25 mm²
- Cross section
25 mm²
- Factory colour
Black
- Content
1 pc(s)
- Sold per metre
No
- Manufacturer part #
1027365
- Min. temperature range (flexible installation)
-40 °C
- Max. temperature range (flexible installation)
+50 °C
- Type
CP-X25-050
Documents & Downloads
Datasheet
Datasheet 3220403 Contrik 1027365 PG cable H07RN-F1X 25 mm² Black 1 pc(s)
Datasheet 3220403 Contrik 1027365 PG cable H07RN-F1X 25 mm² Black 1 pc(s)
Description

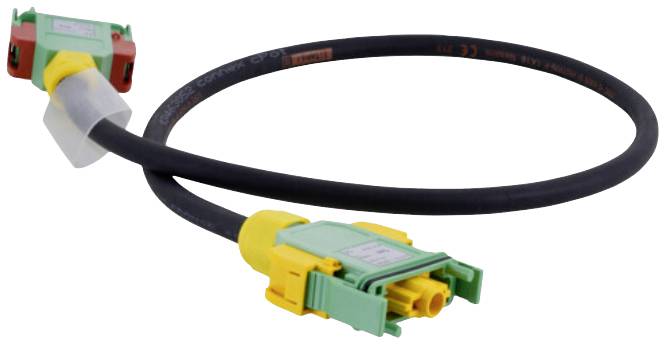

The cPot-ready-made cable is a lockable solution that enables quick and easy wiring of the cPot earthing system. According to DIN 15700 additional locking clips can only be removed using tools.
This text is machine translated.
This text is machine translated.
Features
- Fully assembled socket-bushing lockable cable assembly
- Simple cable length adjustment (e.g. for laying empty pipes) by removable plug / axial screw contact
- High-quality rubber cable H07RN-F with 16mm² and 25mm² cross-section
- Can be extended with cPot coupler (CP-MM)
- Simple connection/removal of the plug with gloves
