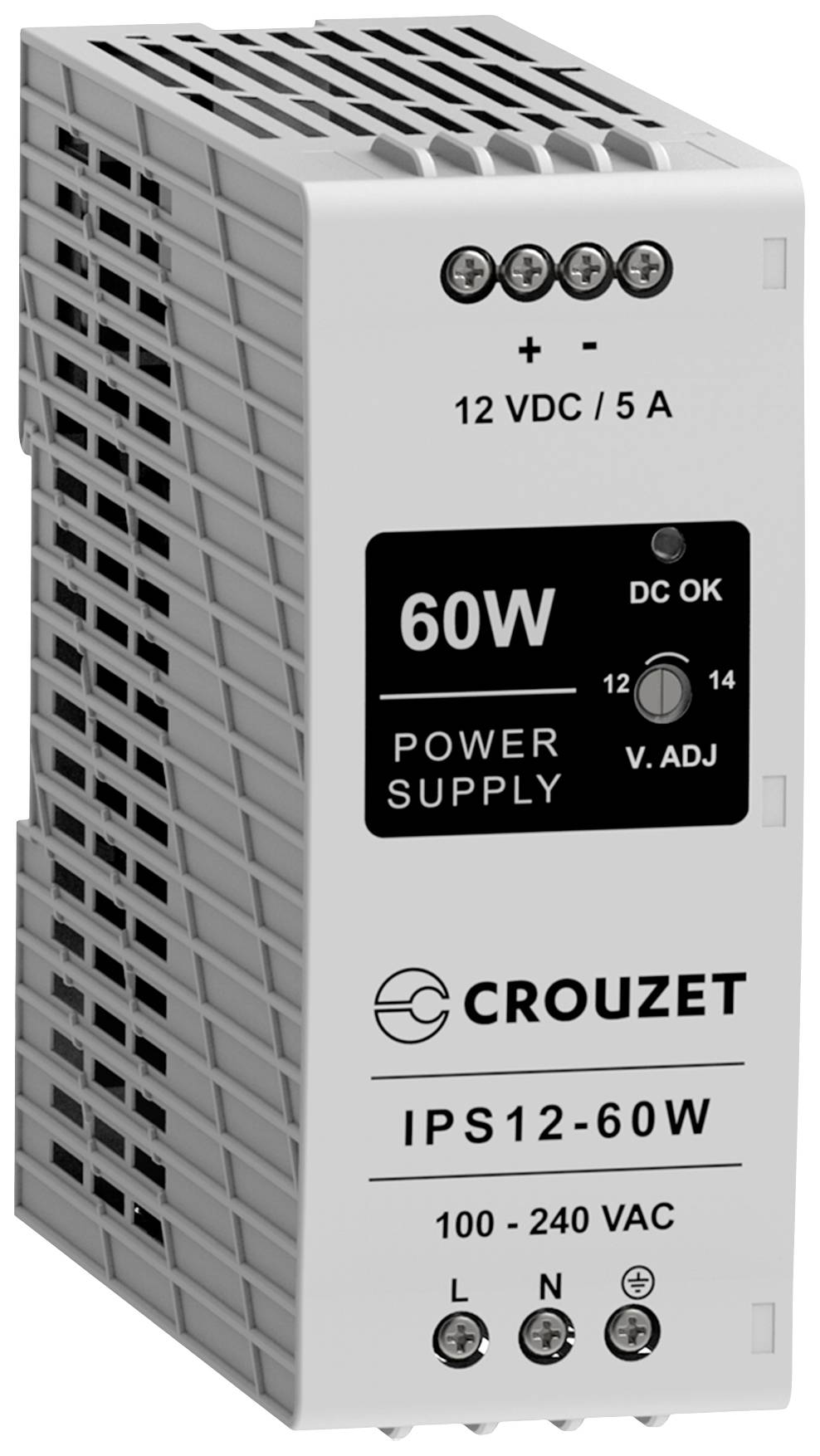

Crouzet 89452061 Industrial PSU 12 V 5 A 60 W Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 65.54 / piece)
€ 65.54
plus VAT.
Only 2 Piece(s) available
Technical specifications
- Depth: 102.7 mm
- Product type
Industrial PSU
- Min. input voltage
90 V
- Input voltage (max.)
264 V
- Max. output current
5 A
- Output current (max.) - rounded
5 A
60 W
- Output voltage (nominal)
12 V
- Dim
(W x H) 43 mm x 109.8 mm
- Weight
285 g
- Output voltage (max.)
14 V
- Output voltage (min.)
12 V
- Max. operating temperature (derating)
50 °C
- Min. operating temperature (derating)
-25 °C
- Manufacturer part #
89452061
- Content
1 pc(s)
- Width
43 mm
- Height
109.8 mm
IP20
- Type
89452061
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2997931 Crouzet 89452061 Industrial PSU 12 V 5 A 60 W Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2997931 Crouzet 89452061 Industrial PSU 12 V 5 A 60 W Content 1 pc(s)
Description
Crouzet presents the new generation of 12V and 24V power supplies. This new product family was developed for a wide range of industrial applications as well as for the control panels of the most common building applications. This range is perfect for use with all Crouzet 12 VDC or 24 VDC products. Ideal mounting on DIN rails makes it suitable for use in distribution boards.
Smaller size
The space in the control panel is becoming more and more important to accommodate a larger number of products for complex applications. For this reason, the next generation of Crouzet's compact power family is narrower by 1 modules (equivalent to 17.5 mm or 0.69 inches) in each version. The 11 products with 10 to 480 W power and wide voltage input range (from 84 to 264 VAC) enable reliable supply of DC power lines requiring 12V DC or 24V DC with single phase power supply.
Better performance
These DIN rail mount power supplies have an increased energy efficiency of up to 90% at 240VAC and a low no-load current consumption. In addition, the new terminal position, double insulation and Class II safety input simplify the wiring of the product, and grounding is no longer required. Similarly, the standard NEC class 2 according to UL1310 allows operation in cases where the output currents must be limited under fault conditions.
This text is machine translated.
Smaller size
The space in the control panel is becoming more and more important to accommodate a larger number of products for complex applications. For this reason, the next generation of Crouzet's compact power family is narrower by 1 modules (equivalent to 17.5 mm or 0.69 inches) in each version. The 11 products with 10 to 480 W power and wide voltage input range (from 84 to 264 VAC) enable reliable supply of DC power lines requiring 12V DC or 24V DC with single phase power supply.
Better performance
These DIN rail mount power supplies have an increased energy efficiency of up to 90% at 240VAC and a low no-load current consumption. In addition, the new terminal position, double insulation and Class II safety input simplify the wiring of the product, and grounding is no longer required. Similarly, the standard NEC class 2 according to UL1310 allows operation in cases where the output currents must be limited under fault conditions.
This text is machine translated.
