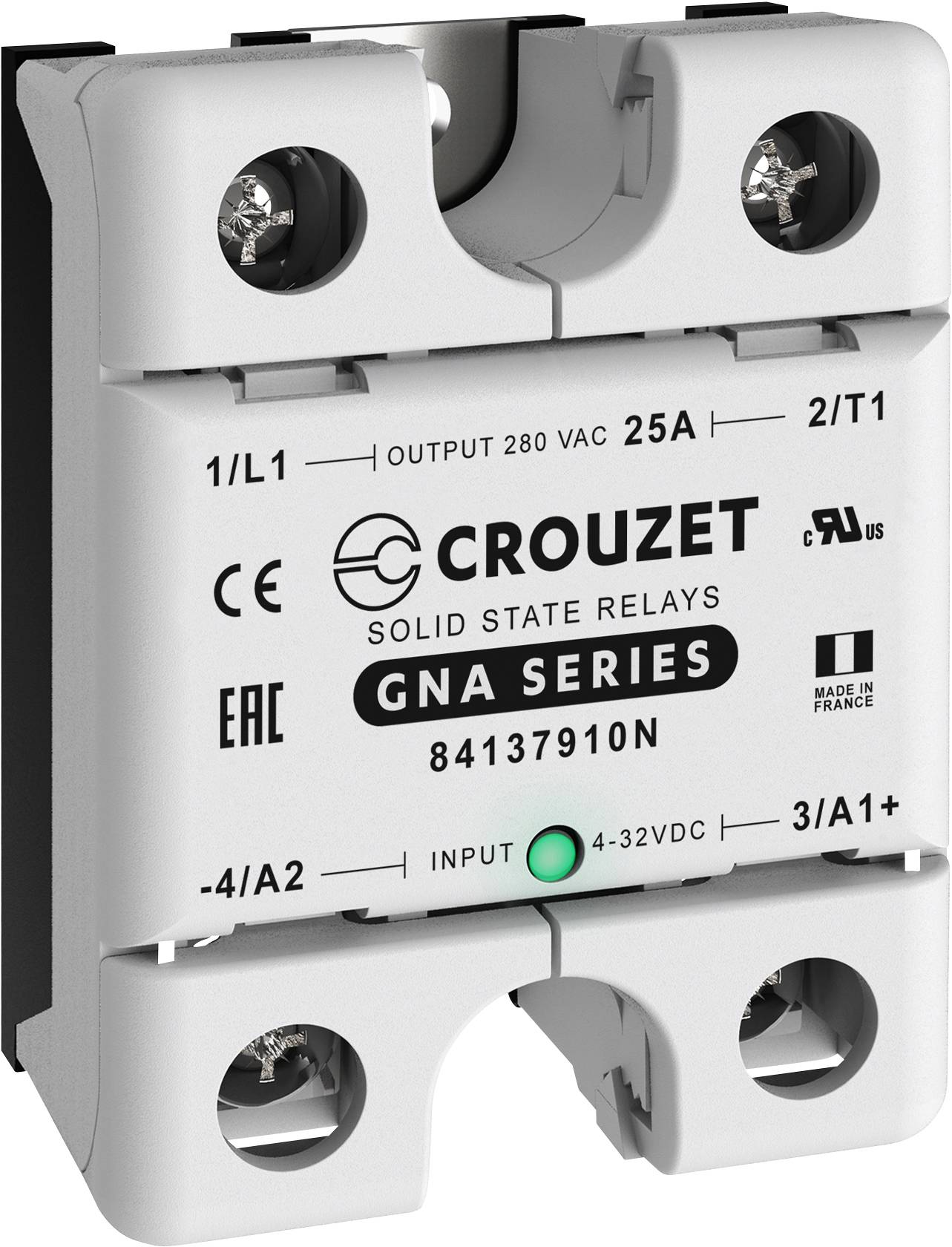

Crouzet SSR 84137910N 25 A Switching voltage (max.): 280 V AC Zero crossing 1 pc(s)

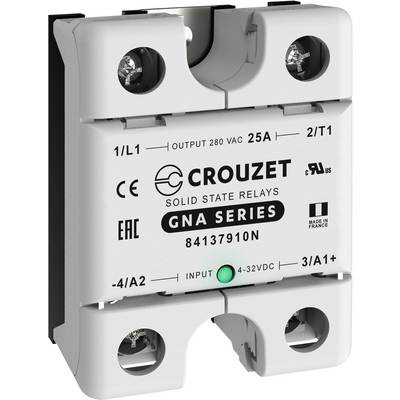

Crouzet GNA Series relay with a load capacity of 25A at 280VAC, input range 4-32VDC. Manufactured in France.
Crowd raising hands at a concert with an illuminated stage. Light bulb symbol in the top right indicating an idea.
An engineer wearing a hard hat and carrying a tablet is inspecting an industrial facility with several blue pumps. A pump symbol is prominent in the foreground.
A female baker in work attire opens an oven where several trays of bread rolls are being baked. An icon for baking appears on the right.
Two workers in protective clothing inspect a large industrial facility under a sunny sky. A high-voltage symbol is displayed.
1/5
Product type
SSR
Control voltage (min.)
4 V DC
Control voltage (max.)
32 V DC
Switching voltage (max.)
280 V AC
Current load (max.)
25 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 49.99 / piece)
€ 49.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Solid State Relays

  • A triangular sign with the letters 'D', 'V', 'E'.
  • 'CRAUS' logo in stylised lettering, predominantly in capital letters, on a white background.

Technical specifications

  • Control panel mounting
Product type

SSR

Type

GNA25DZL

Switching type

Zero crossing

Connection

Screw terminal

Control voltage (min.)

4 V DC

Control voltage (max.)

32 V DC

Control voltage range

4 - 32 V DC

Switching voltage (min.)

24 V AC

Switching voltage (max.)

280 V AC

Current load (max.)

25 A

Width

38 mm

Height

50 mm

Length

74 mm

RoHS-compliant

Yes

Content

1 pc(s)

Documents & Downloads

Datasheet

Datasheet 2304060 Crouzet SSR 84137910N 25 A Switching voltage (max.): 280 V AC Zero crossing 1 pc(s)

Datasheet 2304060 Crouzet SSR 84137910N 25 A Switching voltage (max.): 280 V AC Zero crossing 1 pc(s)

Datasheet 2304060 Crouzet SSR 84137910N 25 A Switching voltage (max.): 280 V AC Zero crossing 1 pc(s)

Datasheet 2304060 Crouzet SSR 84137910N 25 A Switching voltage (max.): 280 V AC Zero crossing 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2304060 Crouzet SSR 84137910N 25 A Switching voltage (max.): 280 V AC Zero crossing 1 pc(s)

Information

Information 2304060 Crouzet SSR 84137910N 25 A Switching voltage (max.): 280 V AC Zero crossing 1 pc(s)

Description


Market application:
HEATING ELEMENTS - no switch-on surge current

• ovens
• HVAC
• Textiles
• Soldering device
• Drying
• Hot forms
• Infrared heating
• Heating of residential buildings
• Plastic injection molding/extrusion
• Commercial food processing machines
