Crydom 3 Phase Conductor Relay

A three-phase solid-state relay by Crydom, Model D53TP25, 530V, 25A. Shows connections, status indicator, and certifications.

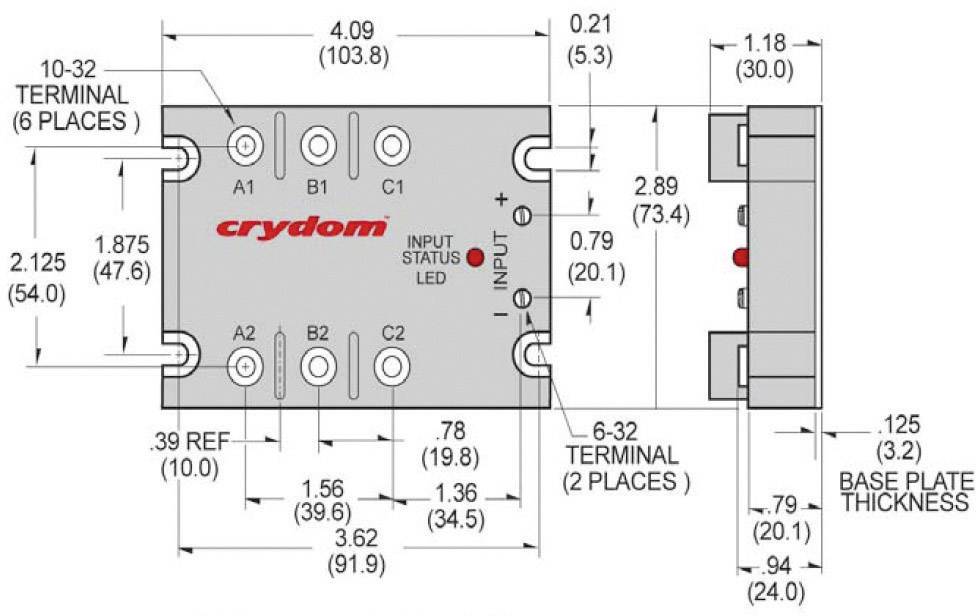

'Diagram of an electronic component with dimensions. Includes connections and LED status indicator. Manufacturer name: Crydom.'
1/2
Image similar
Packaging type
Piece
Product type
SSR
Control voltage (min.)
4 V DC
Control voltage (max.)
32 V DC
Switching voltage (max.)
530 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
8 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 285.00 / piece)
€ 285.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 8 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

Crydom 3 Phase Conductor Relay

Our service for you

Technical specifications

Packaging type

Piece

Product type

SSR

Type

D53TP25D

Switching type

Zero crossing

Control voltage (min.)

4 V DC

Control voltage (max.)

32 V DC

Control voltage range

4 - 32 V DC

Surge current (max.)

625 A

Switching voltage (min.)

48 V AC

Switching voltage (max.)

530 V AC

Current load (max.)

25 A

Output voltage (max.)

530 V AC

Max. output current

25 A

Min. temperature

-40 °C

Max. temperature

+80 °C

Width

75 mm

Height

30 mm

Length

103.8 mm

RoHS-compliant

Yes

Permanent current (max.)

25 A

Content

1 pc(s)

Type

Switches at voltage zero.

Type

D53TP25D

Ambient temperature

-40 - +80 °C

Operating voltage

48 - 530 V AC

Documents & Downloads

Datasheet

Datasheet 187160 Crydom 3 Phase Conductor Relay

User & Safety Instructions

User & Safety Instructions 187160 Crydom 3 Phase Conductor Relay

Description

Switches with up to 530 Vrms with loads like engines, transformers and heaters Optically isolated SCR output for high switching loads in industrial applications "Hockey Puck" standard industrial housing for chassis or installation of heat sink

Scope of delivery

  • Rails and heat sinks not included.

Hints

Approvals UL, CSA, VDE
