Buy Crydom Solid State SIP PCB Load Relay

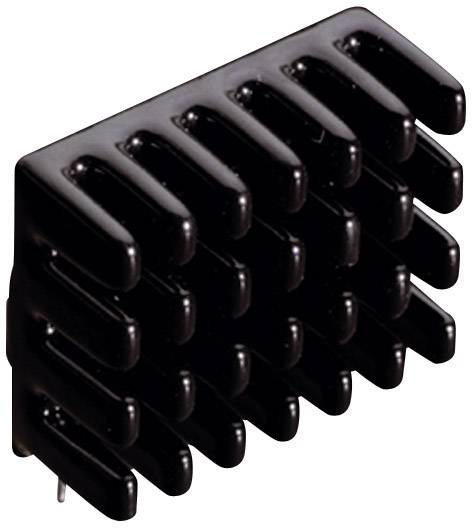

Black heatsink with multiple parallel fins for heat dissipation, used in electronic devices.

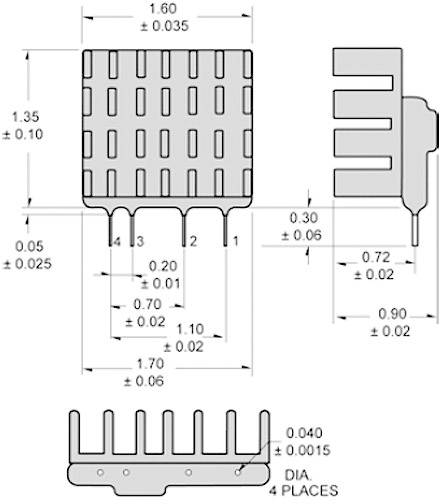

Technical drawing of an electronic component with dimensions and tolerances. Shows front, side and bottom view.

1/2

Packaging type

Piece

Product type

SSR

Control voltage (min.)

15 V DC

Control voltage (max.)

32 V DC

Switching voltage (max.)

280 V AC

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

28 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 18.48 / piece)

€ 18.48

plus VAT.

Report legal concerns

Technical specifications

Voltage resistance: (input-output) 2500 V/AC
25 mA

Packaging type: Piece

Product type: SSR

Type: SPFE240D25

Switching type: Zero crossing

Control voltage (min.): 15 V DC

Control voltage (max.): 32 V DC

Control voltage range: 15 - 32 V DC

Switching voltage (min.): 12 V AC

Switching voltage (max.): 280 V AC

Current load (max.): 25 A

Output voltage (max.): 280 V AC

Max. output current: 25 A

Min. temperature: -30 °C

Max. temperature: +80 °C

Width: 34.3 mm

Height: 22.9 mm

Length: 43.1 mm

Permanent current (max.): 25 A

Content: 1 pc(s)

Type: Switches at voltage zero.

Type: SPFE240D25

Ambient temperature: -30 - +80 °C

Documents & Downloads

Datasheet

Datasheet 505112 Crydom Solid State SIP PCB Load Relay

User & Safety Instructions

User & Safety Instructions 505112 Crydom Solid State SIP PCB Load Relay

Description

SPF "PowerFin" series provides a high switching capacity in a SIP chassis. Through the integrated heat sink a 25 A (forced cooling) or 10 (convection cooling ) can be switched. Other advantages are the low leakage current in off mode and the high peak current. Optically separated SCR output for high switching loads in industrial applications.
