Buy D-Link DAP-E9560 DAP-E9560 Single Wi-Fi access point 2.4 GHz, 5 GHz, 6 GHz

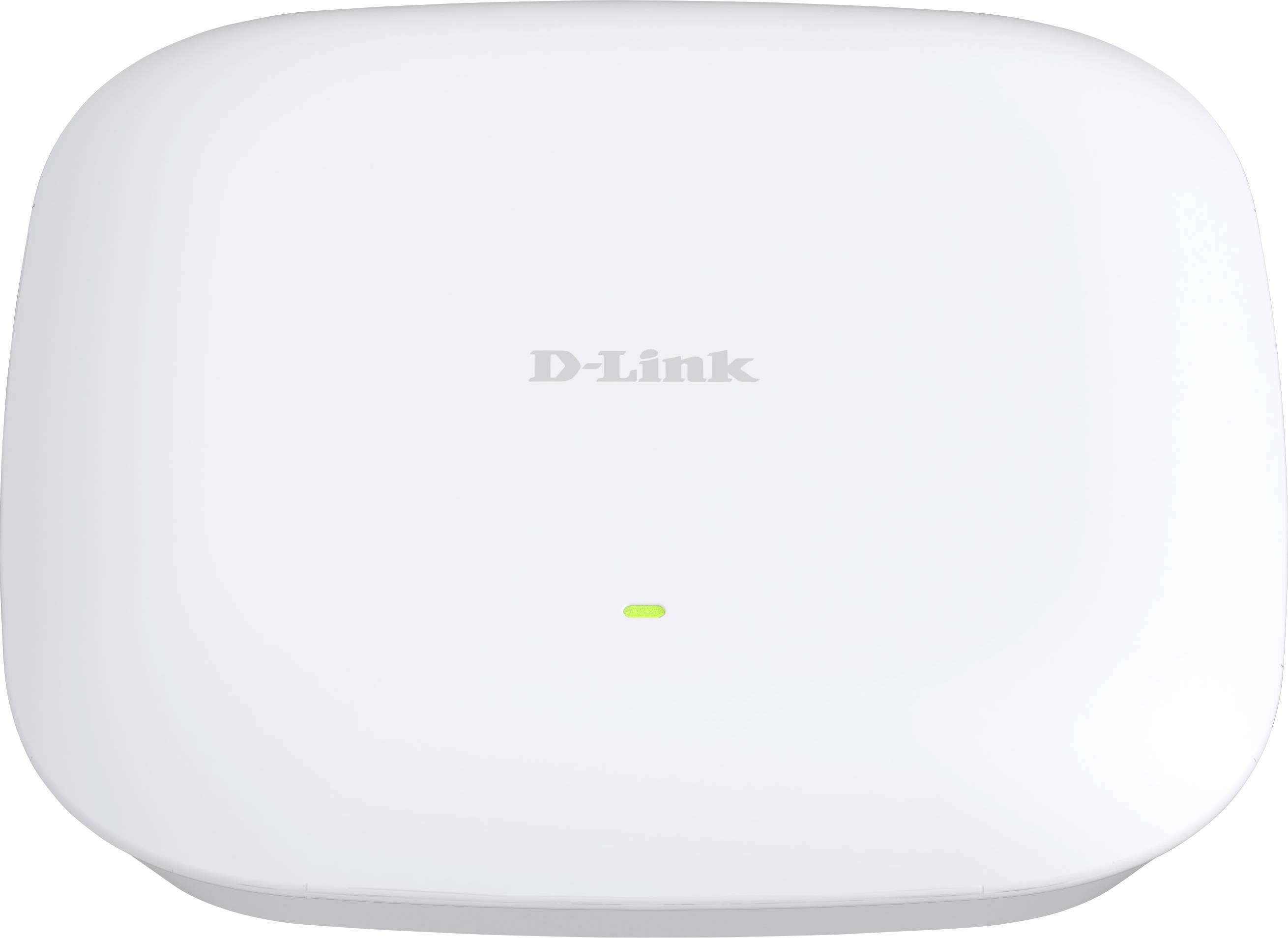

White D-Link wireless access point with a single green status light on the front.

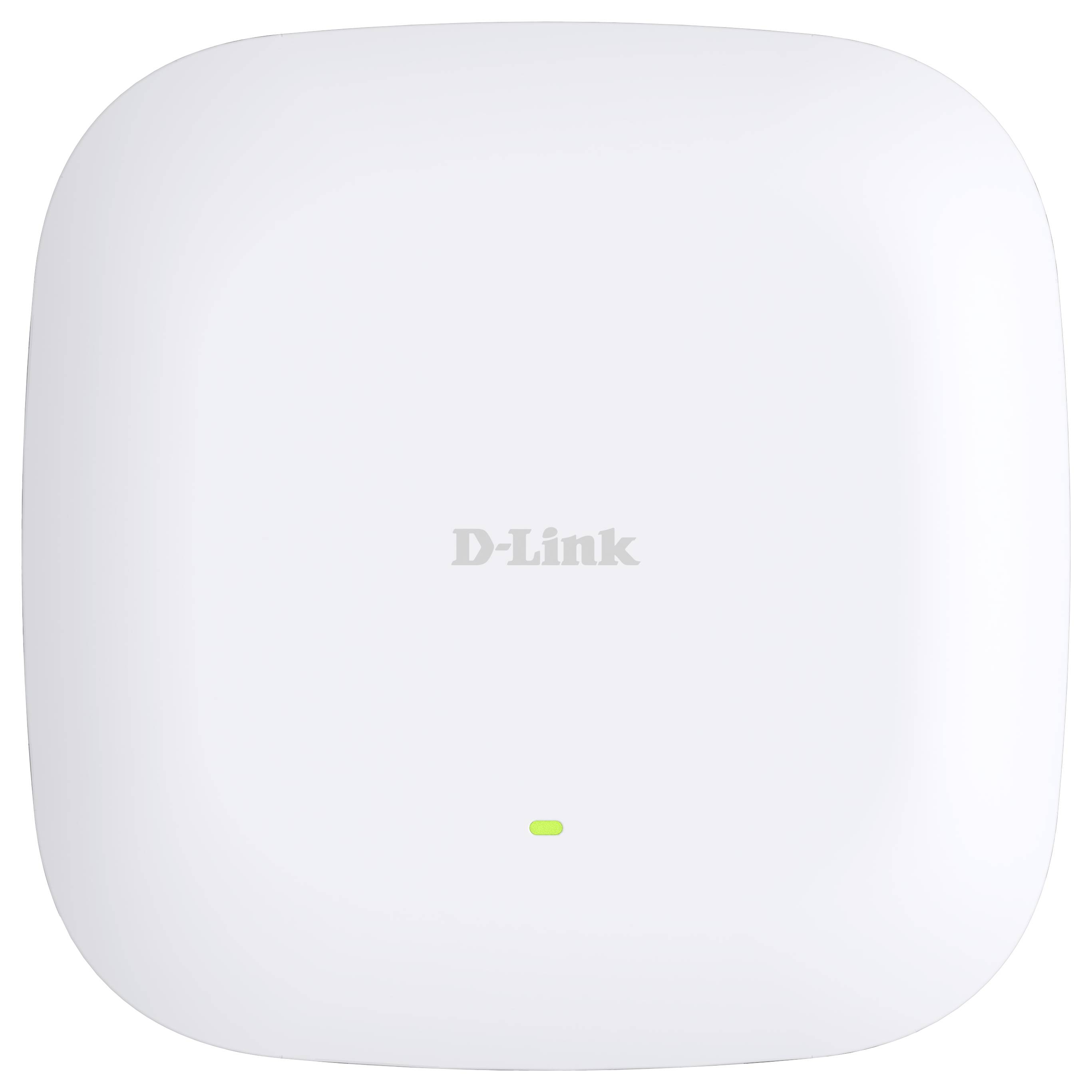

White D-Link wireless access point with a small green status light centered near the bottom.

Top view of a white square ceiling light or fixture with rounded corners and four mounting holes.

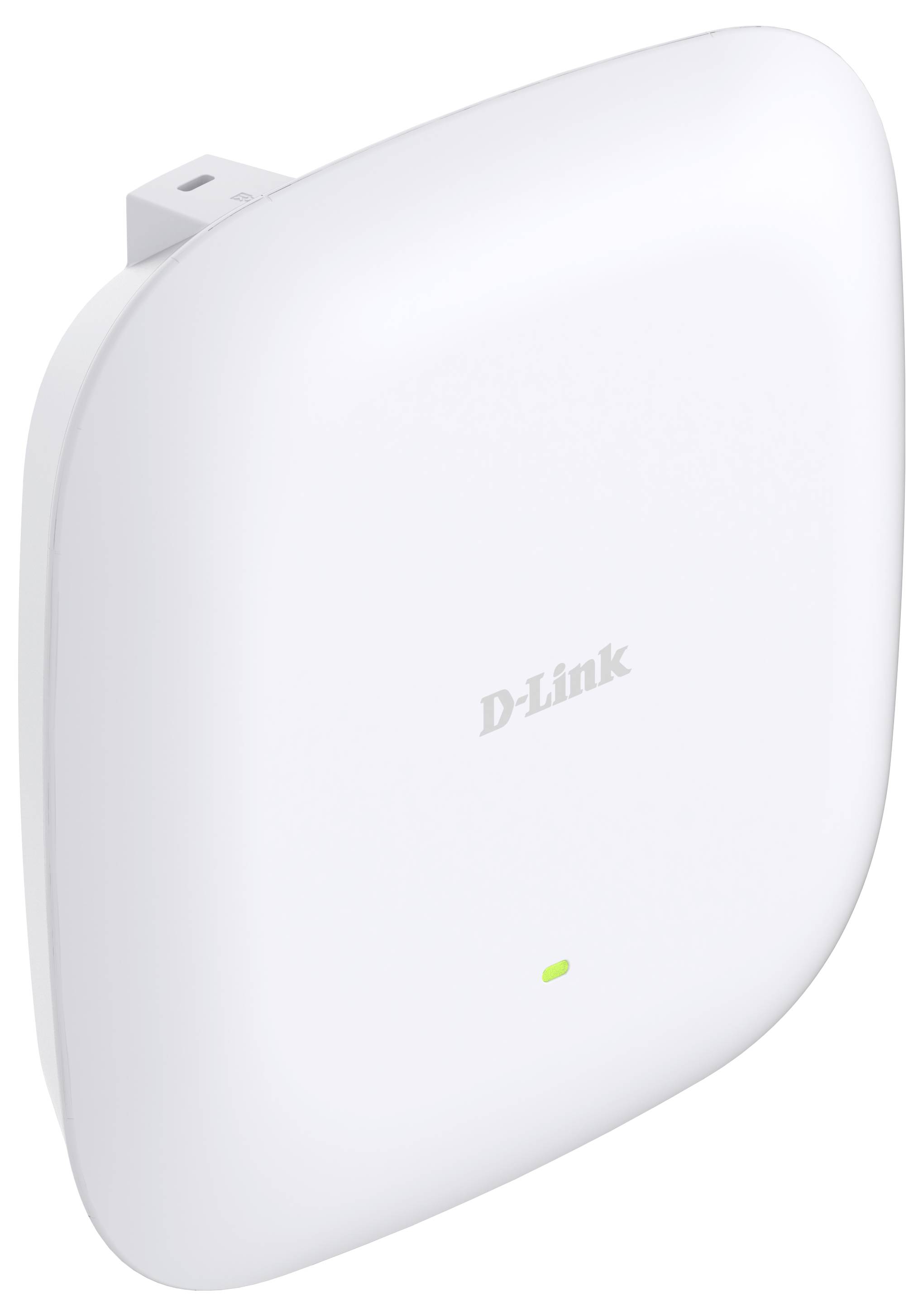

White D-Link Wi‑Fi access point with a small green status light on the front.

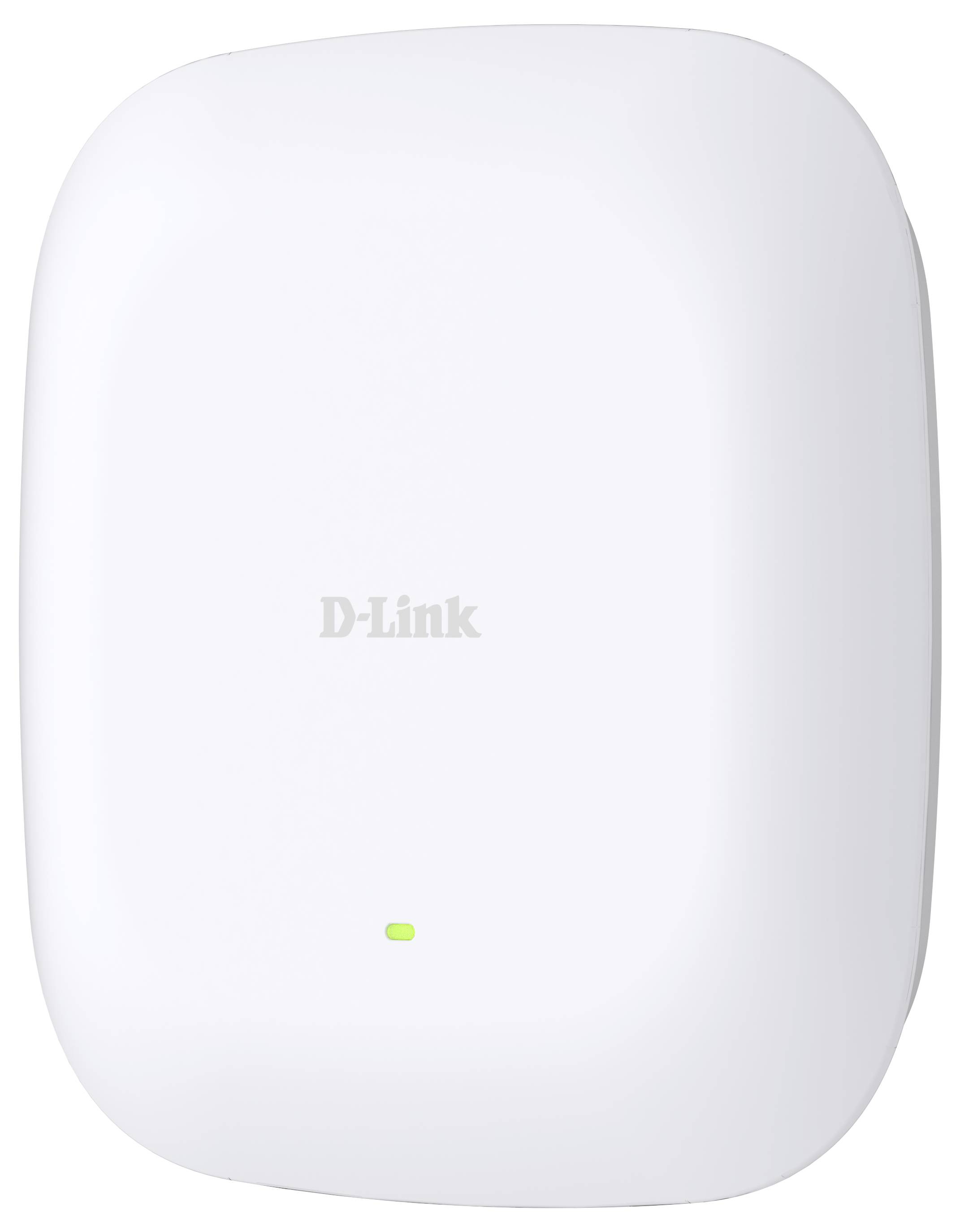

White D-Link wall-mounted wireless access point with a single green status light on the front.

Top-down view of a white square ceiling light fixture with a central circular vented panel and four corner screws.

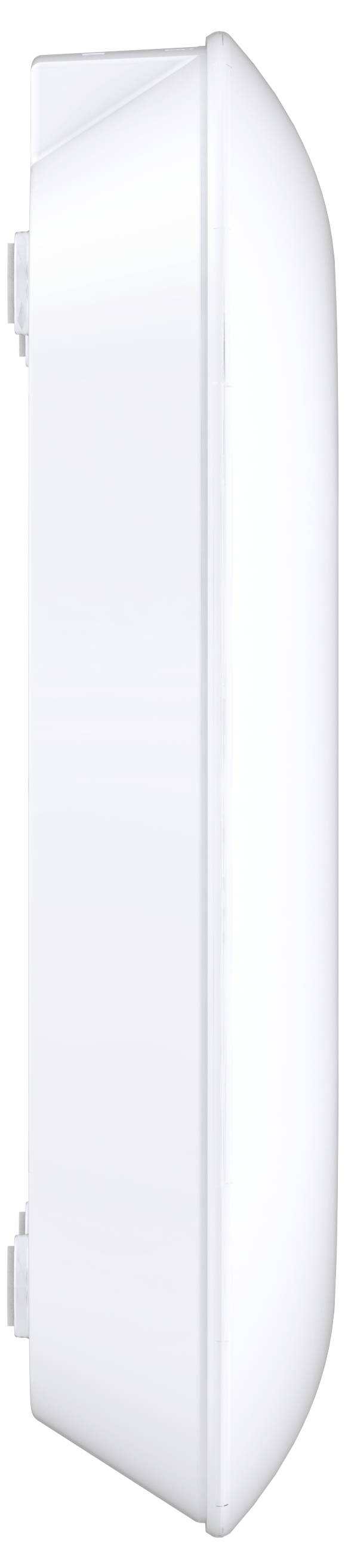

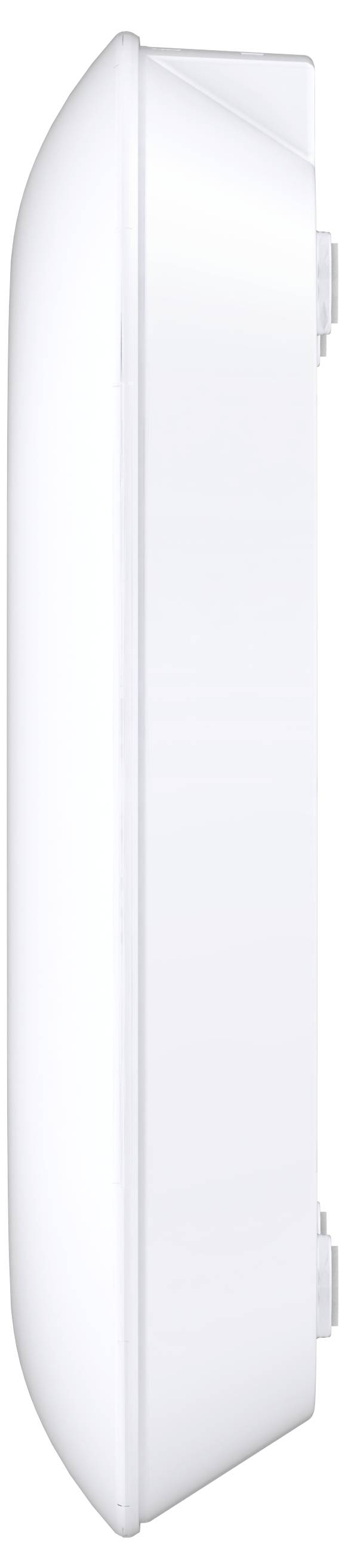

White wall-mounted rectangular device with rounded curved front, resembling a speaker or sensor.

White oval bathtub shown in side view, with a smooth rim and short feet on a plain background.

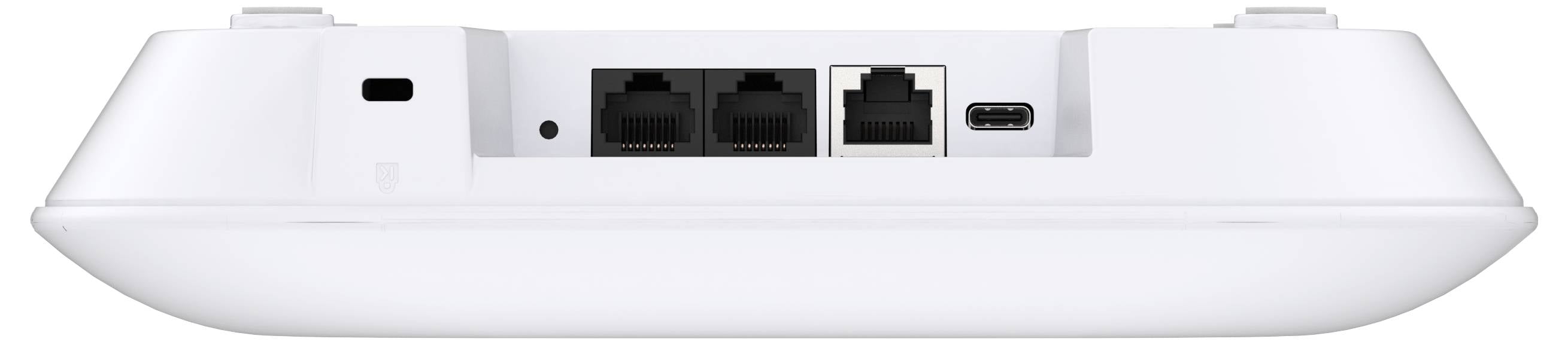

Back view of a white wireless router showing ports for Ethernet, phone, USB-C power, and a reset button.

1/10

Fast track dispatch on Fri, 11 Sep

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 289.92 / piece)

€ 289.92

plus VAT.

Only 2 Piece(s) available

Report legal concerns

D-Link DAP-E9560 WLAN access Point white Power over Ethernet (PoE)

Highlights & Details

Tri-band connectivity with a maximum data rate of 11 Gbps
Supports up to 8 configured SSIDs and 24 SSIDs per radio module
Robust design, suitable for indoor use
Compatible with IEEE 802.11ax (Wi-Fi 6) and IEEE 802.11be (Wi-Fi 7)
Power over Ethernet (PoE++) for flexible installation options

Technical specifications

Maximum data transfer rate (2.4 GHz): 720 Mbit/s.
Maximum data transfer rate (5 GHz): 2880 Mbit/s.
Maximum transmission power (6 GHz): 21 dBmW

Product type: Wi-Fi access point

Type: DAP-E9560

Kit: Single

Dual Band compatibility: 2.4 GHz, 5 GHz and 6 GHz

Wi-Fi frequency band: 2.4 GHz
5 GHz
6 GHz

Wi-Fi speed 2.4 GHz: 720 MBit/s

Wi-Fi speed 5 GHz: 2880 MBit/s

No. of LAN ports: 2 x

Wi-Fi standard: IEEE 802.11be
IEEE802.11a
IEEE802.11ac
IEEE802.11ax
IEEE802.11b
IEEE802.11g
IEEE802.11n
IEEE802.1p

Wi-Fi speed 6 GHz: 5760 MBit/s

LAN data transfer rate: 10 GBit/s

Factory colour: White

10/100/1000 Mbps ports: 2 x

UKCA: yes

Operating temperature (T-T): 0 - 40 °C

Quantity per pack: 1 Stück(e)

2.4 GHz: yes

5 GHz: yes

Number of SSID supported: 24

Power over Ethernet (PoE): yes

Web-based management: yes

6 GHz: yes

Maximum data transfer rate (6 GHz): 5760 Mbit/s

Maximum Tx power (2.4 GHz): 23 dBmW

Maximum Tx power (5 GHz): 21 dBmW

Automatic channel selection: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3763531 D-Link DAP-E9560 DAP-E9560 Single Wi-Fi access point 2.4 GHz, 5 GHz, 6 GHz

Description

The D-Link DAP-E9560 is a robust WLAN-access Point for indoors, which is designed for high power in different environments. With its tri-band capability the Access Point offers a maximum data transfer rate of 11 Gbit/s and thus ensures a smooth and efficient WLAN connection for several devices. It supports up to 8 configured SSIDs and 24 SSIDs per radio module and is therefore the ideal choice for environments that require extensive network segmentation.
The DAP-E9560 was developed according to the latest WLAN-standards and supports IEEE 802.11ax (Wi-Fi 6) and IEEE 802.11be (Wi-Fi 7), whereby it offers an improved speed and capacity. The device is also characterized by a robust design and can be mounted comfortably on the wall or ceiling, WAS increases its versatility. Equipped with Power over Ethernet (PoE++), the DAP-E9560 offers an efficient energy management, which enables a flexible installation and at the same time ensures a reliable power via the 2.4-GHz, 5-GHz and 6-GHz bands.

This text is machine translated.

Scope of delivery

BE9500 Wi-Fi 7 Tri-Band PoE Access Point (DAP-E9560)
Ceiling mount
Mounting bracket
Quick start guide
