D-Link Thunderbolt™ 4 laptop docking station DUF-E01/E Supports 8K@30 Hz (1x) / 4K@30Hz (2x), USB-C® powered
EAN:
Part number:
Item no:
Number
Total (€ 273.11 / piece)
€ 273.11
plus VAT.
Only 2 Piece(s) available

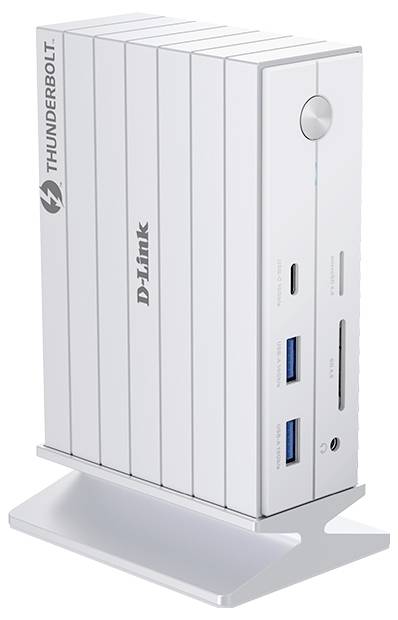

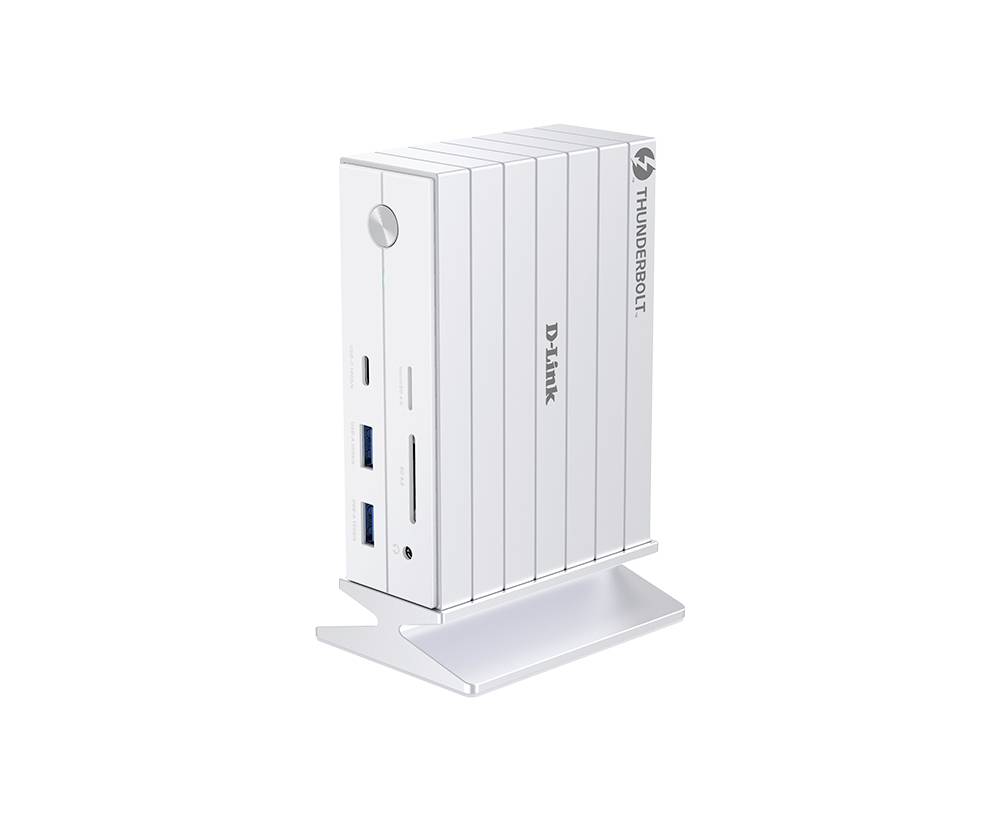

D-Link DUF-E01/E Thunderbolt™ 4 laptop docking station
Highlights & Details
- Connection A (or inputs): Thunderbolt 4
- Connecton B (or outputs):
- No. of supported monitors: 3
- Maximum resolution: 7680 x 4320 p
- Key features: Supports 8K@30 Hz (1x) / 4K@30Hz (2x), USB-C® powered
Technical specifications
- HDMI version 2.1
- HD type 8K Ultra HD
- Product type
Thunderbolt™ 4 laptop docking station
- Type A
Thunderbolt 4
- Suitable for
Universal
- Supported monitors
3
- Resolution (max.)
7680 x 4320 p
- Factory colour
White
- Features
Supports 8K@30 Hz (1x) / 4K@30Hz (2x)
USB-C® powered
- Width
188 mm
- Height
125 mm
- Depth
40 mm
- Weight
1.2 kg
- Dim
(W x H x D) 188 x 125 x 40 mm
- No. of DisplayPort
1 x
- No. of HDMI ports
1 x
- No. of USB A 2.0 ports
2 x
- No. of USB type A 3.1 / 3.2 1st Gen
1 x
- No of. USB type A 3.1 /3.2 2nd gen
2 x
- No. of USB 3.2 2nd Gen (USB 3.1)
1 x
- Max. output current
5.63 A
- Output voltage
54 V
- 10/100/1000 Mbps ports
1 x
- PSU power
135 W
- Transfer type
Corded
- UKCA
not relevant
- Operating temperature (T-T)
0 - 40 °C
- Ethernet LAN
yes
- Storage relative humidity (H-H)
5 - 95 %
- Quantity per pack
1 Stück(e)
- Card reader integrated
yes
- Quick start guide
yes
- Thunderbolt 4 ports quantity
1
- Maximum digital resolution
7680 x 4320 p
- Maximum memory card size
2 TB
- Operating relative humidity (H-H)
10 - 90 %
- Storage temperature (T-T)
-20 - 65 °C
- Combo headphone/mic port
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3763542 D-Link Thunderbolt™ 4 laptop docking station DUF-E01/E Supports 8K@30 Hz (1x) / 4K@30Hz (2x), USB-C® powered
Description
14-in-1 extension to improve your workflow
Connect storage, peripherals, networks and displays with 14 ports to optimize tasks and maximize productivity.
Performance, speed and clarity with Thunderbolt 4
Experience fast data transfer at 40 Gbps, three 4K displays or a single 8K display and a 60 W power supply via a single connection. Backward compatible with the previous USB-versions.
Lightning-fast data transfer rates of 40 Gbit/s.
Transfer large files, 8K videos and backups in seconds with the fast bandwidth of 40 Gbit/s from Thunderbolt 4 and three USB ports at 10 Gbit/s and 5 Gbit/s.
Dual Power with 60 W + 15 W fast charging
With a Thunderbolt 4 connection your laptop gets 60 W fast charging as well as an additional 15 W for phones, tablets or accessories, through which all your devices are supplied with power without any problem.
Stay calm and organized
Equipped with aluminum alloy and heat outlet for efficient cooling, with a magnetic bracket that improves both style and order at the workplace.
This text is machine translated.
Connect storage, peripherals, networks and displays with 14 ports to optimize tasks and maximize productivity.
Performance, speed and clarity with Thunderbolt 4
Experience fast data transfer at 40 Gbps, three 4K displays or a single 8K display and a 60 W power supply via a single connection. Backward compatible with the previous USB-versions.
Lightning-fast data transfer rates of 40 Gbit/s.
Transfer large files, 8K videos and backups in seconds with the fast bandwidth of 40 Gbit/s from Thunderbolt 4 and three USB ports at 10 Gbit/s and 5 Gbit/s.
Dual Power with 60 W + 15 W fast charging
With a Thunderbolt 4 connection your laptop gets 60 W fast charging as well as an additional 15 W for phones, tablets or accessories, through which all your devices are supplied with power without any problem.
Stay calm and organized
Equipped with aluminum alloy and heat outlet for efficient cooling, with a magnetic bracket that improves both style and order at the workplace.
This text is machine translated.
Features
- 14-in-1 extension: Connect all your storage devices, peripherals, network devices and monitors via 14 versatile connections.
- Thunderbolt 4 Thunderbolt 4 enables faster data, high-resolution displays and power supply via a single connection
- 40 Gbit/s data transfer speeds: In seconds up to 40 Gbit/s data transfer with the USB4 port
- 4K @ 60Hz Triple display: Expansion or mirroring via HDMI 2.1, DP 1.4 and Thunderbolt 4 ports
- Up to 8K resolution: HDMI 2.1, DP 1.4 and Thunderbolt 4 ports support up to 8K at 30 Hz single display
- PD 60 W Fast Charge: Charge your laptop with up to 60 W PD 3.0, while charging another device with 15 W.
- Removable magnetic holder: High-quality aluminum casing improves the heat dissipation
- Aluminium alloy casing The removable magnetic base keeps things tidy
Scope of delivery
- 14-in-1 docking station (DUF-E01), USB cable (50 cm), mains adapter (135 W), quick start guide, warranty card
