D-Link USB-C® docking station DUP-A01 Compatible with (brand): Universal
EAN:
Part number:
Item no:
Number
Total (€ 55.45 / piece)
€ 55.45
plus VAT.

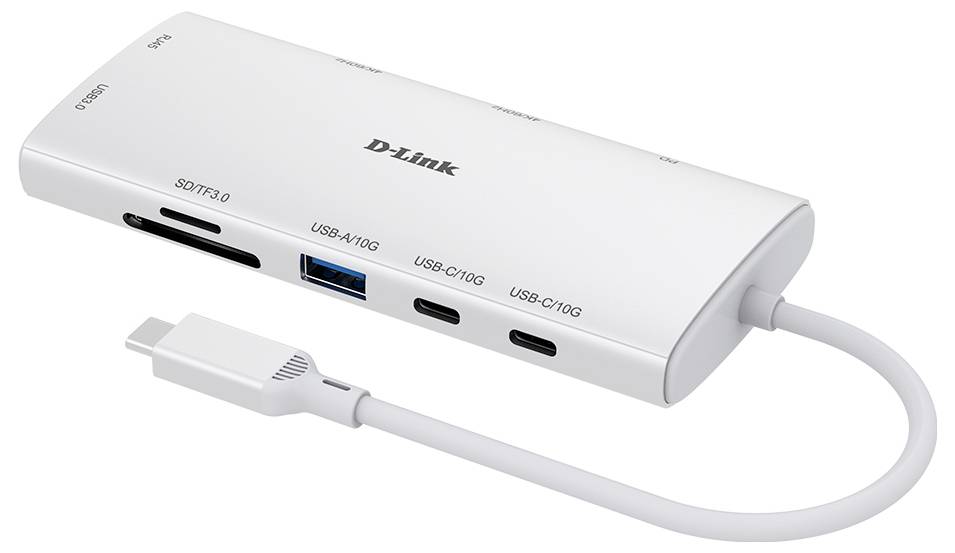

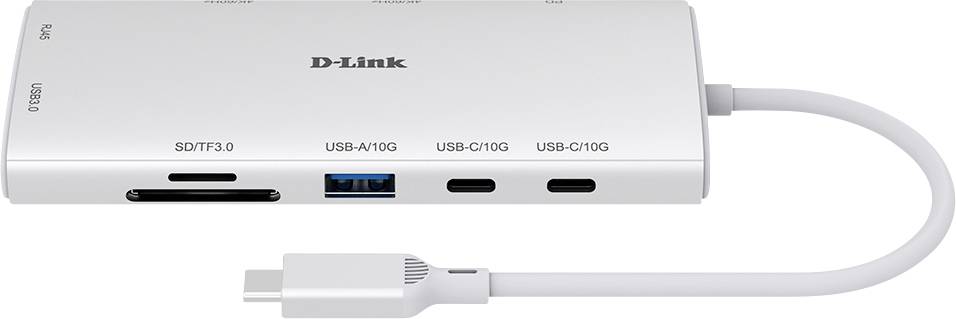

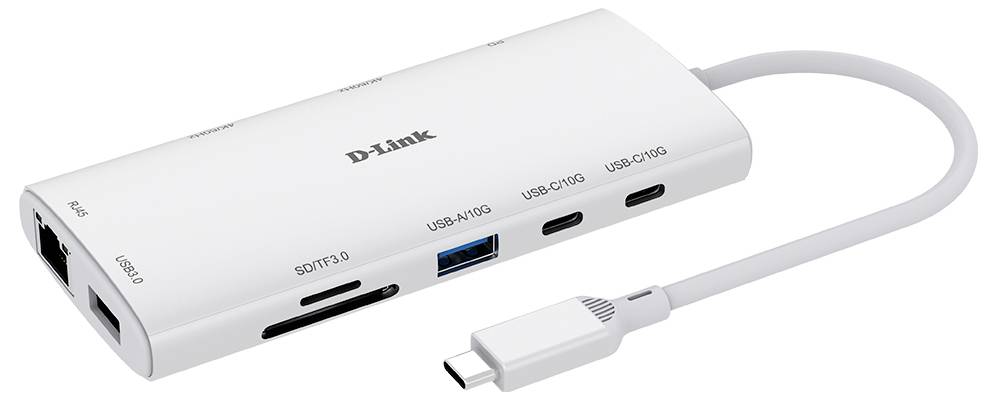

D-Link DUP-A01 USB-C® docking station
Highlights & Details
- Connection A (or inputs): USB-C®
- Connecton B (or outputs): USB-C®, HDMI®, RJ45, USB-A, SD, microSD
- No. of supported monitors:
- Maximum resolution:
- Key features:
Technical specifications
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type-C
- Data transfer rate 10000 Mbit/s.
- HD type 4K Ultra HD
- Product type
USB-C® docking station
- Type A
USB-C®
- Type B
USB-C®
HDMI®
RJ45
USB-A
SD
microSD
- Suitable for
Universal
- Cable length
0 mm
- Factory colour
White
- Width
125 mm
- Height
16.6 mm
- Depth
55.4 mm
- Weight
98.5 g
- Dim
(W x H x D) 125 x 16.6 x 55.4 mm
- Compatible with (brand)
Universal
- Frame rate
60 Hz
- No. of HDMI ports
2 x
- No. of quick charge ports
1
- No. of USB type A 3.1 / 3.2 1st Gen
1 x
- Cable use
PC
- Distributor/switch features
+ USB C connector
USB-C® PD charging port
- Interfaces (output)
HDMI™
RJ45
microSD
USB A (USB 3.2 1st gen)
USB C® (USB 3.2 1st gen)
- Charging method (Power Delivery)
with USB Power Delivery
- Power supply (LOV)
via USB
- 10/100/1000 Mbps ports
1 x
- No. of outputs
10 x
- Type
USB
- Transfer rate
10 GBit/s
- UKCA
not relevant
- Operating temperature (T-T)
0 - 40 °C
- Minimum operating temperature
0 °C
- Storage relative humidity (H-H)
5 - 95 %
- Ports quantity
10
- Maximum resolution (HDMI)
3840 x 2160 p
- Card reader slot
2
- Quantity per pack
1 Stück(e)
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
2
- Maximum operating temperature
40 °C
- USB Power Delivery up to
100 W
- Quick start guide
yes
- Operating relative humidity (H-H)
10 - 90 %
- Storage temperature (T-T)
-20 - 60 °C
- Plug and Play
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3466364 D-Link USB-C® docking station DUP-A01 Compatible with (brand): Universal
Description
The D-Link DUP-A01 is a versatile USB-C hub with 10 ports for maximum productivity - no matter whether in the office, home-office or while traveling. It effortlessly connects two 4K monitors, offers extremely fast data transfer via USB 3.1, a stable network connection via Gigabit Ethernet and fast charging with up to 100W Power delivery. Thanks to SD and microSD card reader, the Ideal is for content creator, photographers and all those who want to work efficiently on the way. The slim design also provides for a tidy workstation.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 10-in-1 USB-C hub (DUP-A01)
- Quick guide
