Datalogic Gryphon I GD4520 Barcode scanner Corded 1D, 2D Imager White Hand-held USB
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 365.55 / piece)
€ 365.55
plus VAT.
Barcode Scanner
Highlights & Details
- 1 megapixel optics for highest reading performance and depth of field
- Datalogic technology with clearly visible, white lighting and 4-point target device with central target cross
- Patented “Green Spot” technology and 3GL™ (3 green LEDs) for clear read confirmation
- Motionix™ motion detection technology for seamless switching of the read mode
- Omni-directional acquisition
- Improved optics for higher movement tolerance
- Image and document capture
- Captures 1D, 2D and post codes plus stacks and composite codes
Technical specifications
- 1D / LINEAR CODES: Records all standard 1D codes including GS1 DataBar™ linear codes
- 2D CODES: Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code
- Post CODES: Australian Post; British Post; Chinese Post; IMB; Japanese Post; KIX Post; Planet Code; Postnet; Royal Mail Code (RM4SCC)
- Stack CODES: EAN/JAN Composite; GS1 DataBar Composite; GS1 DataBar Stack Code extended; GS1 DataBar Stack GS1 DataBar Stack Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composite
- Digital WATERMARK: Digimarc barcodes
- Product type
Barcode scanner
- Type
Gryphon I GD4520
- Type
Hand-held
- Scanning technology
Imager
- Readable code types
1D
2D
- Cordless scanning
Corded
- Range of use
Retail
- Factory colour
White
- Interfaces
USB
- Protection class
IP52
- Weight
161 g
Documents & Downloads
Datasheet
Datasheet 2134001 Datalogic Gryphon I GD4520 Barcode scanner Corded 1D, 2D Imager White Hand-held USB
User & Safety Instructions
User & Safety Instructions 2134001 Datalogic Gryphon I GD4520 Barcode scanner Corded 1D, 2D Imager White Hand-held USB
Description
2D Imager Series Gryphon™ I 4500 - Premium models for universal hand held scanner applications
Image processing technology
The Gryphon™ 4500 series is the premium series in the Datalogic segment of universal scanners. The new ergonomic design guarantees maximum user-friendliness. An innovative Mexapixel sensor with white lighting also provides for a strong reading performance.

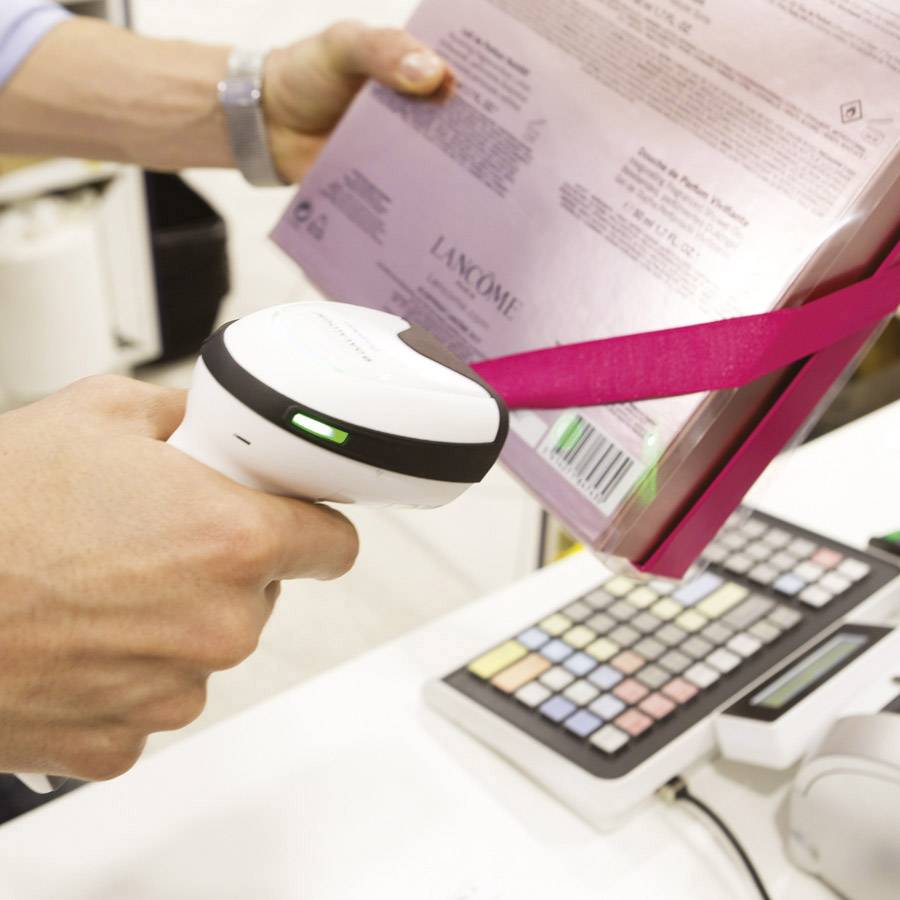

Technology for the POS
The Gryphon I GD4500 can be used as a handheld or presentation scanner. The Motionix™ technology supports it, which automatically sets the appropriate scanning mode based on the movements of the user. This technology works with or without a stand holder. Both the target device and the sensor can be individually programd. The white light is more pleasant for the human eye and also increases the reading performance for colored labels. The clearly visible 4-point target device defines a precise reading zone and reduces incorrect readings, because the central target cross simplifies the detection of several barcodes among each other.
Easy to use and start-up
The Gryphon I GD4500 is an omni-directional imager that quickly and reliably captures 1D, 2D, post, stack and composite codes such as PDF417 from mobile devices. The improved optics also offer better motion tolerance and fast detection when codes are passed at high speed.
This text is machine translated.
Image processing technology
The Gryphon™ 4500 series is the premium series in the Datalogic segment of universal scanners. The new ergonomic design guarantees maximum user-friendliness. An innovative Mexapixel sensor with white lighting also provides for a strong reading performance.
Technology for the POS
The Gryphon I GD4500 can be used as a handheld or presentation scanner. The Motionix™ technology supports it, which automatically sets the appropriate scanning mode based on the movements of the user. This technology works with or without a stand holder. Both the target device and the sensor can be individually programd. The white light is more pleasant for the human eye and also increases the reading performance for colored labels. The clearly visible 4-point target device defines a precise reading zone and reduces incorrect readings, because the central target cross simplifies the detection of several barcodes among each other.
Easy to use and start-up
The Gryphon I GD4500 is an omni-directional imager that quickly and reliably captures 1D, 2D, post, stack and composite codes such as PDF417 from mobile devices. The improved optics also offer better motion tolerance and fast detection when codes are passed at high speed.
This text is machine translated.
Scope of delivery

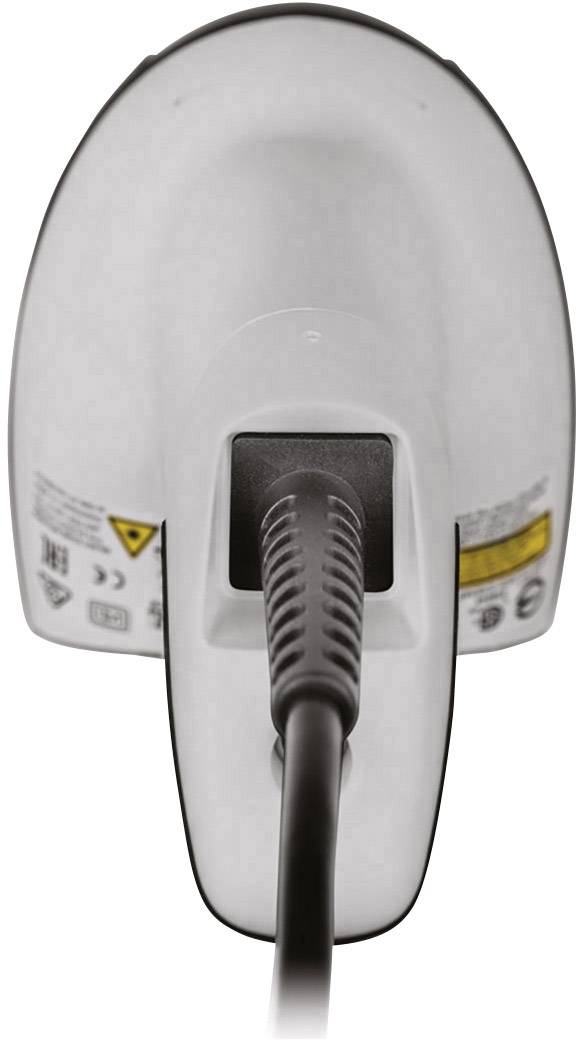

- Scanner, USB cable, quick start guide.
Hints
Recommended for the following applications:
- Retail - Point of Sale
- simple production environment
- Health care: Laboratories, pharmacies, patient care
- access controls, transport and entertainment industries
- Services: Post offices, banks, public offices, utilities
