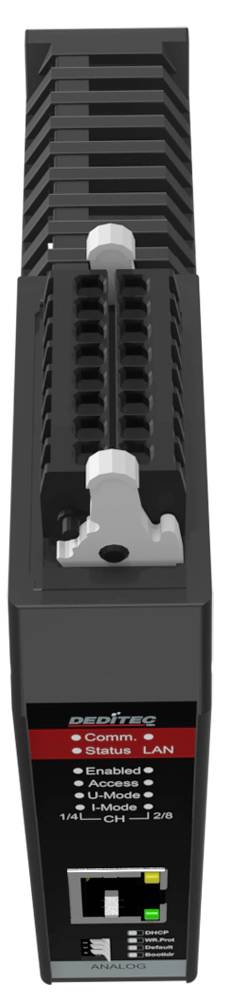

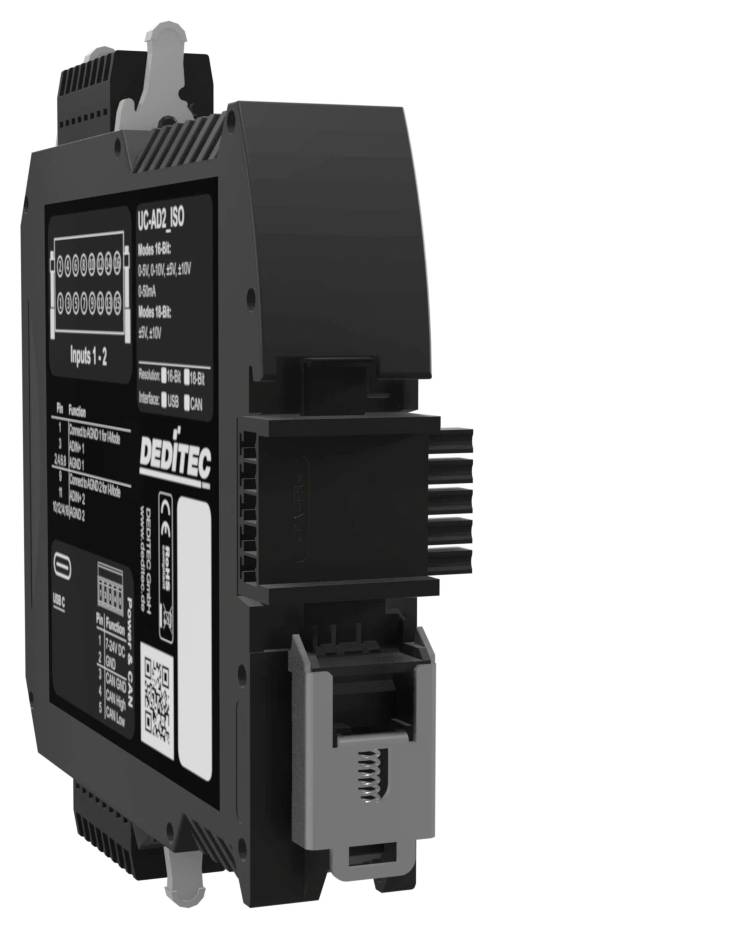

Deditec UC-CAN-E-AD2-16ISO UC-CAN-E-AD2-16ISO A/D converter CAN No. of digital outputs: 0 No. of digital inputs: 0 No. o
Part number:
Item no:
Product type
A/D converter
Interfaces
CAN
No. of relay outputs
0
Type
UC-CAN-E-AD2-16ISO
Operating voltage
7 V DC
24 V DC
Datasheet (PDF)
Number
Total (€ 629.41 / piece)
€ 629.41
plus VAT.
Highlights & Details
CAN 16-bit A/D industrial module with galvanic separation ideal for test stands - with Ethernet configuration interface
- CAN interface according to ISO 11898
- Open CAN Protocol (RAW CAN)
- Automatic send / receive mode (TX/RX)
- Electrically isolated up to 500 V
- Ethernet 10/100 Mbit/s
- Supported protocols: HTTP, UDP, TCP, DHCP, Modbus-TCP
- Control: API for Windows and Linux (DELIB driver library), Command Line Interface, disclosed TCP protocol, Modbus TCP
- Encrypted Ethernet communication is possible
- Open standard or Modbus TCP protocol
- Web interface and APP (smartphone and tablet)
- Possible to connect via Wi-Fi
- WPS function
- Design: Single ended
- 16-bit resolution of each channel
- 0-5 V, 0-10 V, 0-20 V, 0-40 V, ±5 V, ±10 V, ±20 V, ±40 V
- Current ranges 0-20 mA, 4-20 mA, 0-24 mA
- Galvanic isolation channel to channel: Max. 1 kV AC
- Galvanic isolation for voltage supply: Max. 500 V
- 4 µs conversion rate A/D converter

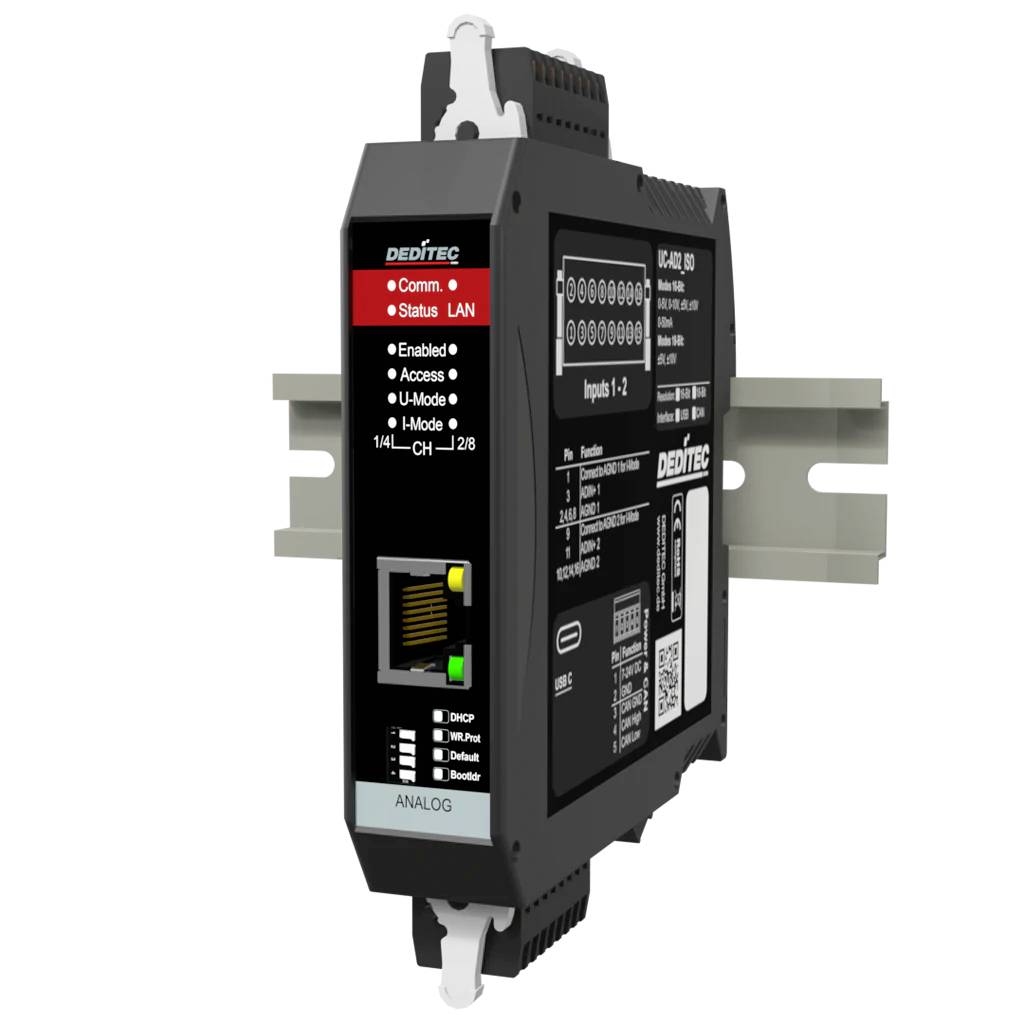

- Fixes to 35 mm x 7.5 mm DIN rail
- Operating temperature: +10 °C to +50 °C (extended temperature range on request)
- Suitable for typical industrial indoor and switching cabinet environments
Technical specifications
- Resolution: 16 bit A / D converter with galvanic isolation
- Connection type: Faulty plug-protected WAGO connector
- Product type
A/D converter
- Interfaces
CAN
- Type
UC-CAN-E-AD2-16ISO
- Operating voltage
7 V DC
24 V DC
- Operating voltage
7 V/DC to 24 V DC
- Height
120 mm
- Length
111 mm
- Width
22.5 mm
- Max. modules
1
- No. of digital inputs
2
- No. of digital inputs
0
- No. of digital outputs
0
- No. of relay outputs
0
- Dim
(L x W x H) 111 x 22.5 x 120 mm
- Control LEDs
Yes
- Manufacturer part #
UC-CAN-E-AD2-16ISO
- Fitting type (details)
Rail mounting (Mounting rail TS 35 x 7.5 mm)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796612 Deditec UC-CAN-E-AD2-16ISO UC-CAN-E-AD2-16ISO A/D converter CAN No. of digital outputs: 0 No. of digital inputs: 0 No. o
User & Safety Instructions
User & Safety Instructions 3796612 Deditec UC-CAN-E-AD2-16ISO UC-CAN-E-AD2-16ISO A/D converter CAN No. of digital outputs: 0 No. of digital inputs: 0 No. o
Description
The UC‑CAN A/D module offers 2 electrically isolated 16/18‑bit inputs for precise measurement of voltages and currents via an open CAN interface. Ideal for industrial applications and test stands, e.g. For the acquisition of sensor signals or for the monitoring of process variables. Thanks to Auto-RX/TX mode and rugged design, the module is perfect for reliable measurement tasks in CAN-based systems.
This text is machine translated.
This text is machine translated.
Features
- I mode
- U-Mode
- M2M functionality
- Automatic CAN-RX/TX mode
- RAW CAN
- J1939 Protocol
- Free configuration and testing software
- Ethernet configuration interface
- Supply voltage +7 V to +24 V DC
- Plug-in female multipoint connectors with locking mechanism
- Fixes to 35 mm x 7.5 mm DIN rail
- Operating temperature: +10 °C to +50 °C (extended temperature range on request)
- Suitable for typical industrial indoor and switching cabinet environments
Scope of delivery
- 5 pin connector
- 2x 16 pin connectors
- Actuating tool for WAGO connector
- DIN-rail connector
System requirements
- Windows, Linux
