Buy Degson DGBSC-SG01/4-03P (17-16ZH) Connector clip flexible: 0.2-4 mm² fixed: 0.2-4 mm² Number of pins: 3 10 pc(s) Green

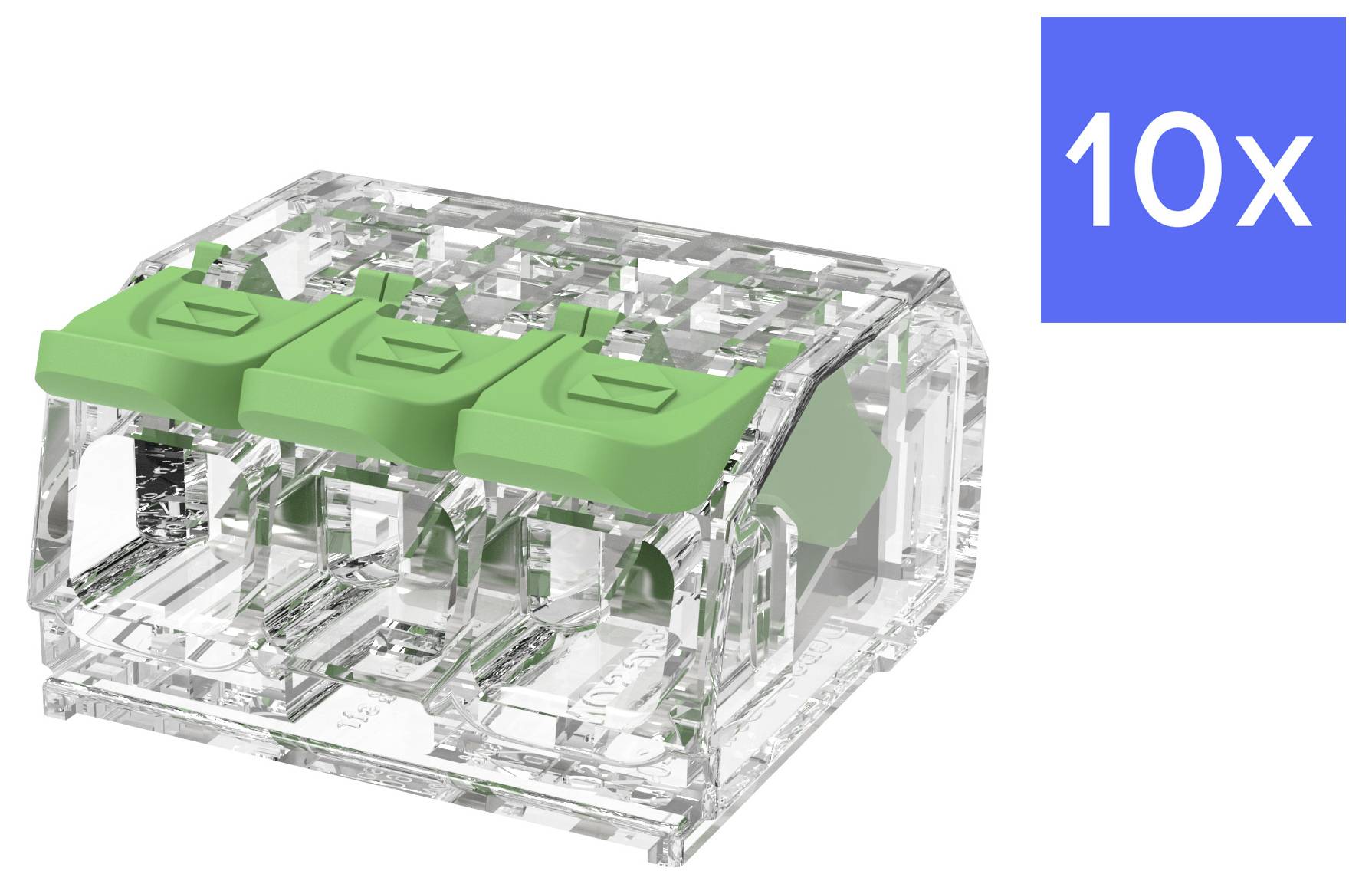

Transparent three-button computer keyboard switch with green keycaps, labeled '10x' in a blue box.

Product type

Connector clip

Cross section (flexible) (min.)

0.2 mm²

Cross section (flexible) (max.)

4 mm²

Cross section (inflexible) (min.)

0.2 mm²

Cross section (inflexible) (max.)

4 mm²

Datasheet (PDF)

Fast track dispatch on Mon, 14 Sep

271 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Set(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number (Package size 10 pc(s))

Set(s)

Total (€ 2.93 / piece)

€ 2.93

plus VAT.

Report legal concerns

Highlights & Details

Connecting terminal, 3-pole, 0.2-4 mm², green, 10 pieces

Color-coded for easy identification of the ground wire

Our service for you

Technical specifications

Product type: Connector clip

Cross section (flexible) (min.): 0.2 mm²

Cross section (flexible) (max.): 4 mm²

Cross section (inflexible) (min.): 0.2 mm²

Cross section (inflexible) (max.): 4 mm²

Number of pins: 3

Factory colour: Green

Nominal current: 32 A

Nominal current - rounded value: 32 A

Content: 10 pc(s)

Dim: (L x W) 18.7 mm x 20 mm

Manufacturer part #: DGBSC-SG01/4-03P (17-16ZH)

: 24-12

Stripping length: 12 mm

Connection: Spring-loaded connector

Insulation material: PC

Contact material: Copper

Moisture Sensitiviy Level (MSL): 2

Nominal voltage: 450 V

Width: 20 mm

Length: 18.7 mm

Pitch: 5.6 mm

RoHS-compliant: Yes

Temperature range: -40 to +85 °C

Connector clip features: PG

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3628736 Degson DGBSC-SG01/4-03P (17-16ZH) Connector clip flexible: 0.2-4 mm² fixed: 0.2-4 mm² Number of pins: 3 10 pc(s) Green

User & Safety Instructions

User & Safety Instructions 3628736 Degson DGBSC-SG01/4-03P (17-16ZH) Connector clip flexible: 0.2-4 mm² fixed: 0.2-4 mm² Number of pins: 3 10 pc(s) Green

Description

Features

Terminal block supports solid and flexible wire
Push-In connection technology, flexible conductors require cold-pressed terminals before Push-In connection
Compatible with DGBSC-ACC01 for secure DIN rail and panel mounting
