Buy Degson DGBSC-SG01/4-05P (17-306ZH) Connector clip flexible: 0.2-4 mm² fixed: 0.2-4 mm² Number of pins: 5 5 pc(s) Black

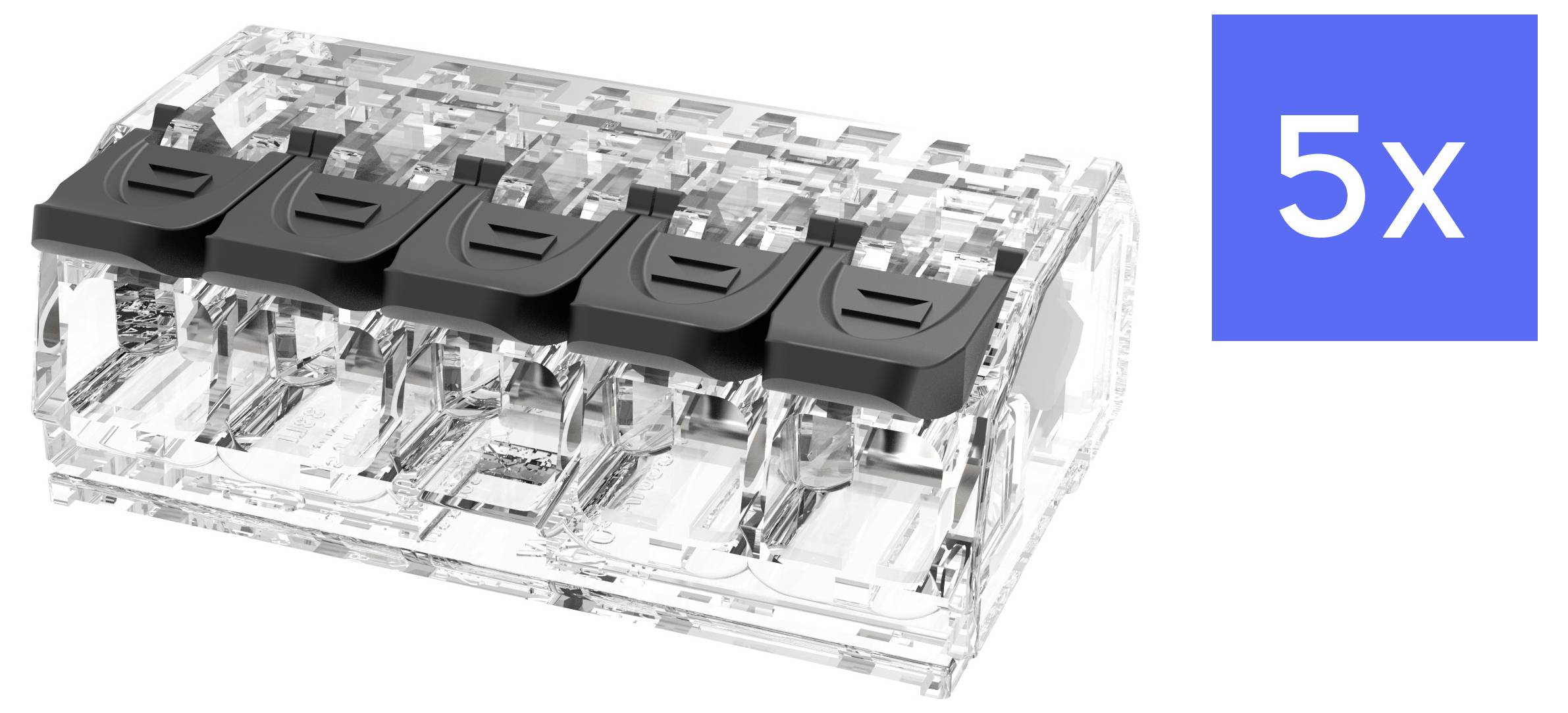

Transparent five-port network connector block with black locking tabs, labeled '5x' in a blue box.<br>

Product type

Connector clip

Cross section (flexible) (min.)

0.2 mm²

Cross section (flexible) (max.)

4 mm²

Cross section (inflexible) (min.)

0.2 mm²

Cross section (inflexible) (max.)

4 mm²

Datasheet (PDF)

Fast track dispatch on Mon, 14 Sep

260 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Set(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number (Package size 5 pc(s))

Set(s)

Total (€ 2.09 / piece)

€ 2.09

plus VAT.

Report legal concerns

Highlights & Details

Connecting terminal, 5-pole, 0.2-4 mm², black, 5 pieces

Our service for you

Technical specifications

Product type: Connector clip

Cross section (flexible) (min.): 0.2 mm²

Cross section (flexible) (max.): 4 mm²

Cross section (inflexible) (min.): 0.2 mm²

Cross section (inflexible) (max.): 4 mm²

Number of pins: 5

Factory colour: Black

Nominal current: 32 A

Nominal current - rounded value: 32 A

Content: 5 pc(s)

Dim: (L x W) 29.9 mm x 20 mm

Manufacturer part #: DGBSC-SG01/4-05P (17-306ZH)

: 24-12

Stripping length: 12 mm

Connection: Spring-loaded connector

Insulation material: PC

Contact material: Copper

Moisture Sensitiviy Level (MSL): 2

Nominal voltage: 450 V

Width: 20 mm

Length: 29.9 mm

Pitch: 5.6 mm

RoHS-compliant: Yes

Temperature range: -40 to +85 °C

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3630493 Degson DGBSC-SG01/4-05P (17-306ZH) Connector clip flexible: 0.2-4 mm² fixed: 0.2-4 mm² Number of pins: 5 5 pc(s) Black

User & Safety Instructions

User & Safety Instructions 3630493 Degson DGBSC-SG01/4-05P (17-306ZH) Connector clip flexible: 0.2-4 mm² fixed: 0.2-4 mm² Number of pins: 5 5 pc(s) Black

Description

Features

Terminal block supports solid and flexible wire
Push-In connection technology, flexible conductors require cold-pressed terminals before Push-In connection
Compatible with DGBSC-ACC01 for secure DIN rail and panel mounting
