Degson DGBSC-SG02/4-01P (17-305ZH) Connector clip flexible: 0.2-4 mm² fixed: 0.2-4 mm² Number of pins: 1 10 pc(s) Brown
EAN:
Part number:
Item no:
Product type
Connector clip
Cross section (flexible) (min.)
0.2 mm²
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (min.)
0.2 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 4.61
5
7% = € 0.30
€ 4.31
10
9% = € 0.42
€ 4.19
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 10 pc(s))
Total (€ 4.61 / piece)
€ 4.61
plus VAT.
Highlights & Details

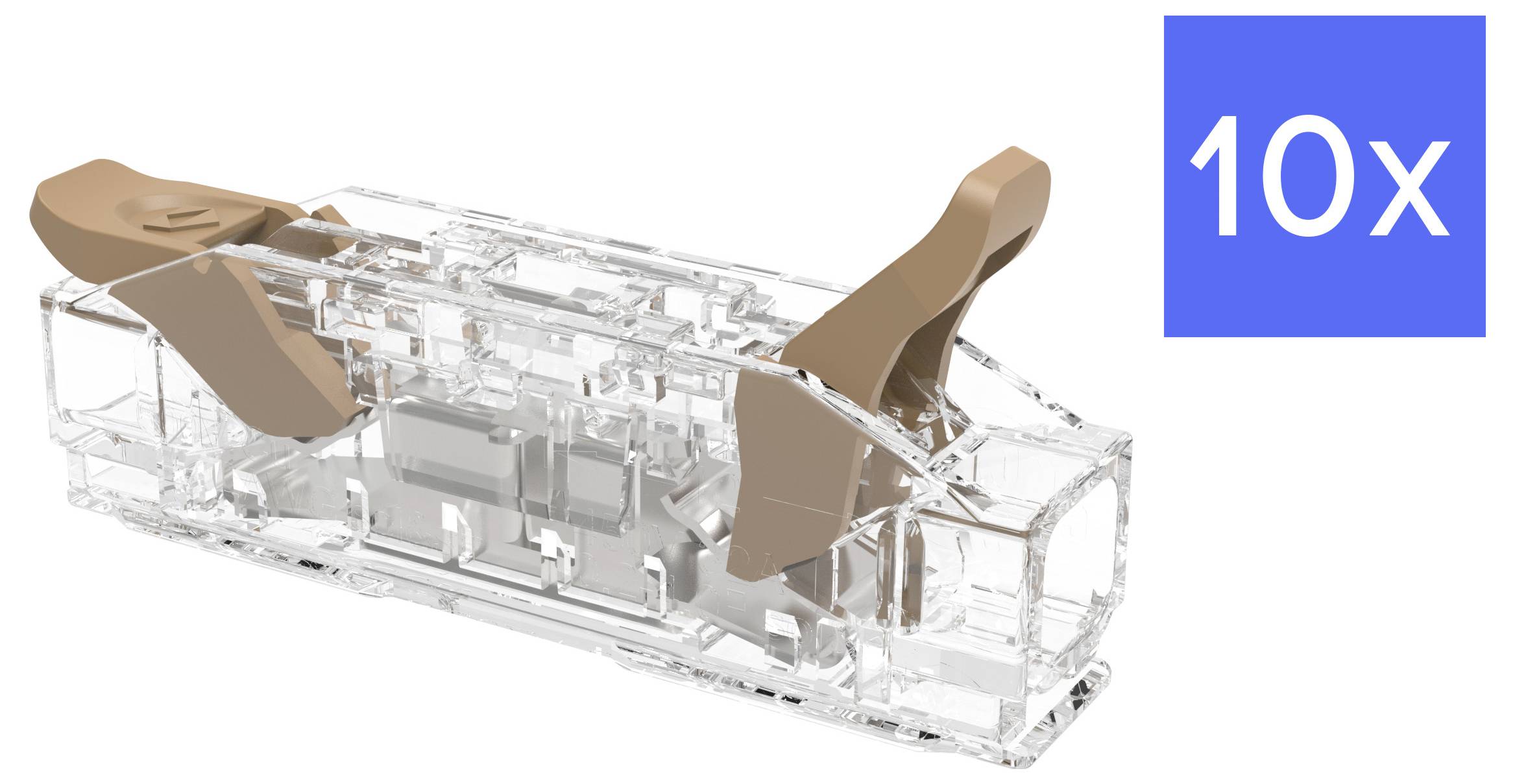

Connecting terminal, feed-through connector, 1-pole, 0.2-4 mm², brown, 10 pieces
- Color-coded for easy identification of the ground wire
Our service for you
Technical specifications
- Product type
Connector clip
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
4 mm²
- Number of pins
1
- Factory colour
Brown
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Content
10 pc(s)
- Dim
(L x W) 39 mm x 10.16 mm
- Manufacturer part #
DGBSC-SG02/4-01P (17-305ZH)
24-12
- Stripping length
12-13 mm
- Connection
Spring-loaded connector
- Insulation material
PC
- Contact material
Copper
- Moisture Sensitiviy Level (MSL)
2
- Nominal voltage
450 V
- Width
10.16 mm
- Length
39 mm
- Pitch
5.6 mm
- RoHS-compliant
Yes
- Temperature range
-40 to +85 °C
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3630500 Degson DGBSC-SG02/4-01P (17-305ZH) Connector clip flexible: 0.2-4 mm² fixed: 0.2-4 mm² Number of pins: 1 10 pc(s) Brown
User & Safety Instructions
User & Safety Instructions 3630500 Degson DGBSC-SG02/4-01P (17-305ZH) Connector clip flexible: 0.2-4 mm² fixed: 0.2-4 mm² Number of pins: 1 10 pc(s) Brown
Description
Features
- Terminal block supports solid and flexible wire
Scope of delivery
- 10x connecting terminal
