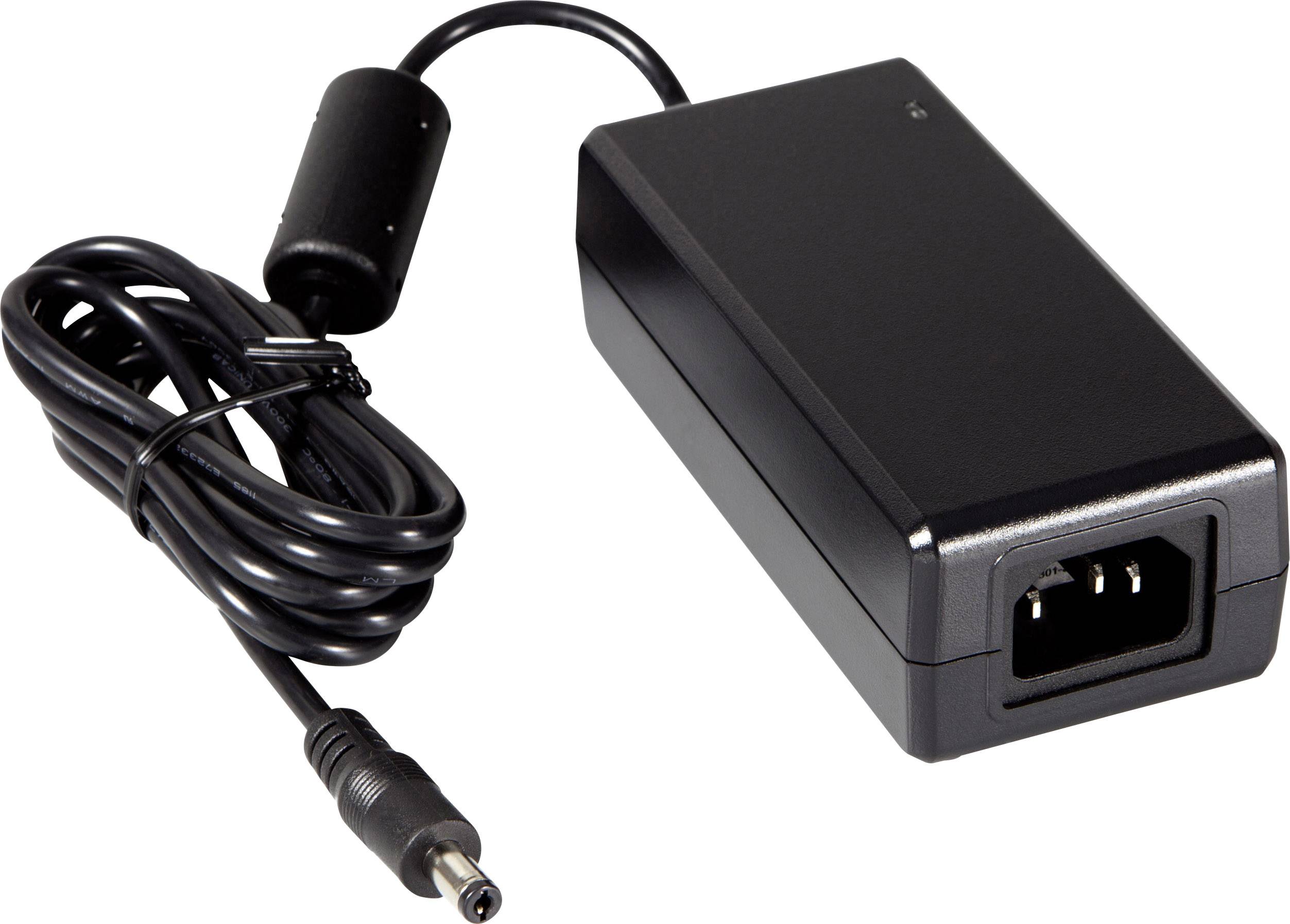

Dehner Elektronik ATS 065T-P480 Bench PSU (fixed voltage) 48 V DC 1.36 A 65 W
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 24.36
3
4% = € 1.06
€ 23.30
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 24.36 / piece)
€ 24.36
plus VAT.
Highlights & Details
Desktop power supply, fixed voltage Dehner Elektronik 28042 48 V/DC 1360 mA
- Protection class 1
- ErP-compliant LEVEL VI
- High degree of efficiency
- 48 VDC
- 1360 mA
- 65 W power
- Short circuit and over load protection with automatic restart
- Safety according to TÜV, CB, UL.
Technical specifications
- Product type
Bench PSU (fixed voltage)
- Used at
Mains socket
Indoors
- Max. output current
1.36 A
- Output current (max.) - rounded
1.36 A
- Output
5.5/2.1 coaxial connector
- Output voltage
48 V DC
- Input voltage
100 V AC
240 V AC
- No. of outputs
1 x
- EuP Status
Step 2
- Weight
302 g
65 W
- Width
53 mm
- Height
38 mm
- Length
115 mm
- Type
ATS 065T-P480
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1661907 Dehner Elektronik ATS 065T-P480 Bench PSU (fixed voltage) 48 V DC 1.36 A 65 W
Warranty Terms
Warranty Terms 1661907 Dehner Elektronik ATS 065T-P480 Bench PSU (fixed voltage) 48 V DC 1.36 A 65 W
Description
Power supply of Dehner Elektronik robust, reliable and efficient, with switched-mode power technology in a compact design.
This text is machine translated.
This text is machine translated.
Features
- Short circuit and over load protection with automatic restart
- DC-DC Plug 5.5 mm x 2.1 mm, polarity + inside
- Safety tested according to EN standard, CB, UL
- Type: synchronised.
Scope of delivery
- Power cable IEC 60320 C13, operating instructions
- Bench power supply unit
