Buy Dehner Elektronik XY 36LE-2401500VH-EW LED transformer, LED driver Constant voltage 36 W 1.5 A 24 V DC Surge protection,

Black power adapter with European plug and cable. Text on the power adapter shows specifications such as model number and input voltage.

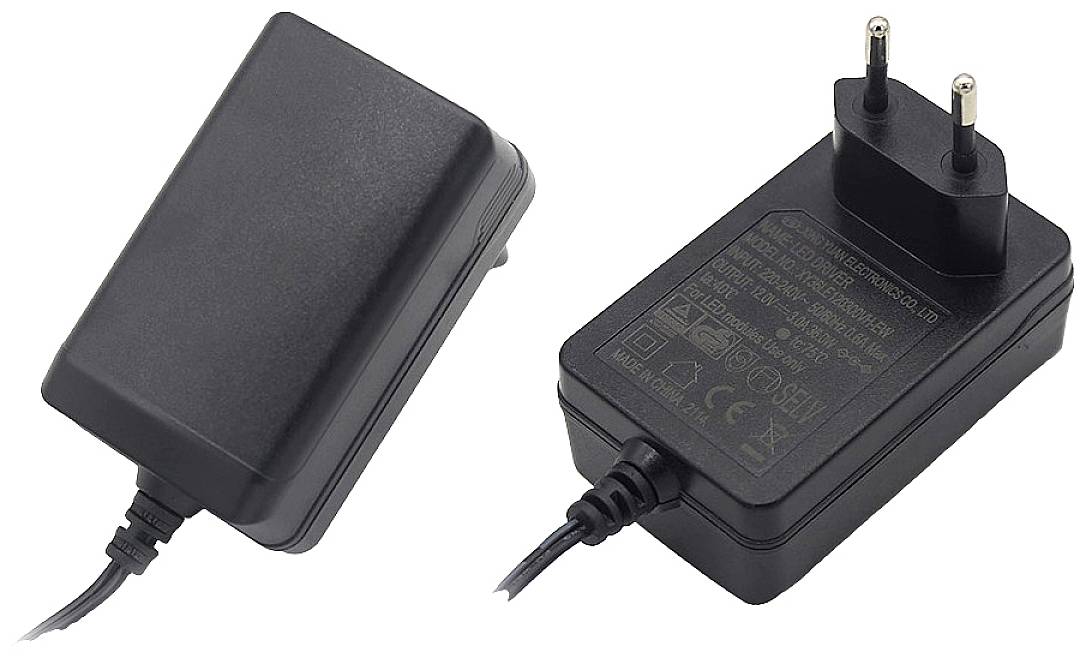

Black power supply with European plug, showing the casing and technical specifications on the back.

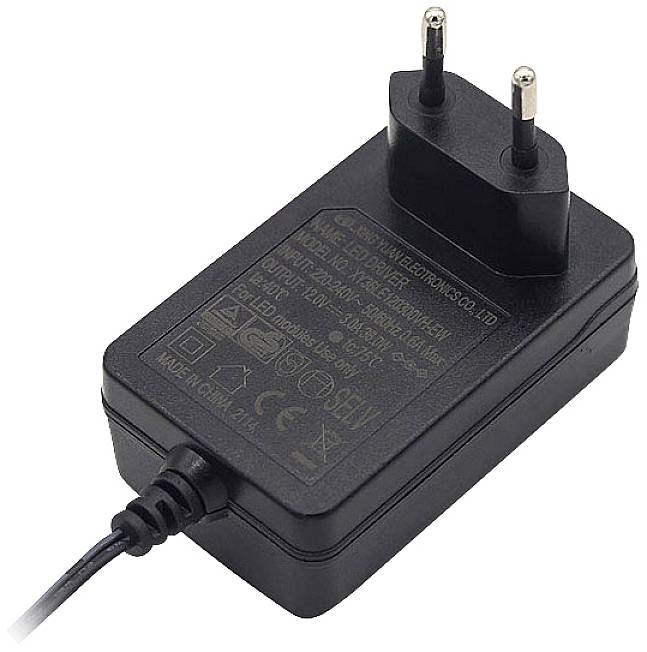

A black power supply with two round plug contacts and technical specifications printed on the top surface.

1/3

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

42 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 12.60 / piece)

€ 12.60

plus VAT.

Report legal concerns

Highlights & Details

LED Plug power supply XY 36LE-2401500VH-EW Dehner Elektronik GmbH

Constant voltage
24 V DC
1.5 A

Technical specifications

GS mark according to the lighting standards EN 61347-1, EN 61347-2-13 and EN 62493Stabilised output voltageSafety extra-low voltage (SELV)Overvoltage protectionOverload protectionShort-circuit protection

Product type: LED transformer

Type: Constant voltage

Dim: (L x W x H) 70 x 90 x 45 mm

Factory colour: Black

Output voltage (max.): 24 V DC

Output voltage (min.): 24 V DC

Test mark: IEC / EN 61347-2-13, EN 55015, EN 61000-3-3; -4-2; -4-3; -4-5, EN 61000-3-2 Class C

Max. output current: 1.5 A

Output current (max.) - rounded: 1.5 A

Operating voltage: 240 V AC

Protection class: IP20

LED driver features: Surge protection
Overvoltage

Connection: Euro plug

Max. power: 36 W

No. of outputs: 1 x

No. of inputs: 1 x

Input voltage (max.): 240 V AC

Min. input voltage: 220 V AC

Weight: 135 g

Power range: 36 W (max)

Type: Switched-mode power supply, power supply

Width: 90 mm

Height: 45 mm

Length: 70 mm

Max. temperature: 40 °C

Min. temperature: 0 °C

Documents & Downloads

Datasheet

Datasheet 2584523 Dehner Elektronik XY 36LE-2401500VH-EW LED transformer, LED driver Constant voltage 36 W 1.5 A 24 V DC Surge protection,

User & Safety Instructions

User & Safety Instructions 2584523 Dehner Elektronik XY 36LE-2401500VH-EW LED transformer, LED driver Constant voltage 36 W 1.5 A 24 V DC Surge protection,

Warranty Terms

Warranty Terms 2584523 Dehner Elektronik XY 36LE-2401500VH-EW LED transformer, LED driver Constant voltage 36 W 1.5 A 24 V DC Surge protection,

Description

Elegant power adapter for LED and other lighting applications. Universally applicable, for example B. For light bands, designer lights and advertising signs.The output voltage is stabilised. The switched-mode power supply has a high degree of efficiency and therefore low heat generation. The power supply is suitable for continuous operation and offers a Maximum at safety through the various protective measures.Number of output voltages 1 – singleApplicable in region: EuropeApplication LEDOutput connection: Hollow plugDesign: LED driver, power adapterInput for connection: Power plug (CEE 7/16)Protection class II

This text is machine translated.

Scope of delivery

User manual

Hints

Caution!

Make sure you pick an LED driver/transformer that comes with the appropriate power rating.

Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.

Keep in mind that the switch-on surge tend to be much higher.
