Name: Digitus DN-PWR-STD-24048 Industrial PSU 48 V DC 5 A 240 W Content 1 pc(s)
Brand: Digitus
SKU: 3791054
Availability: InStock

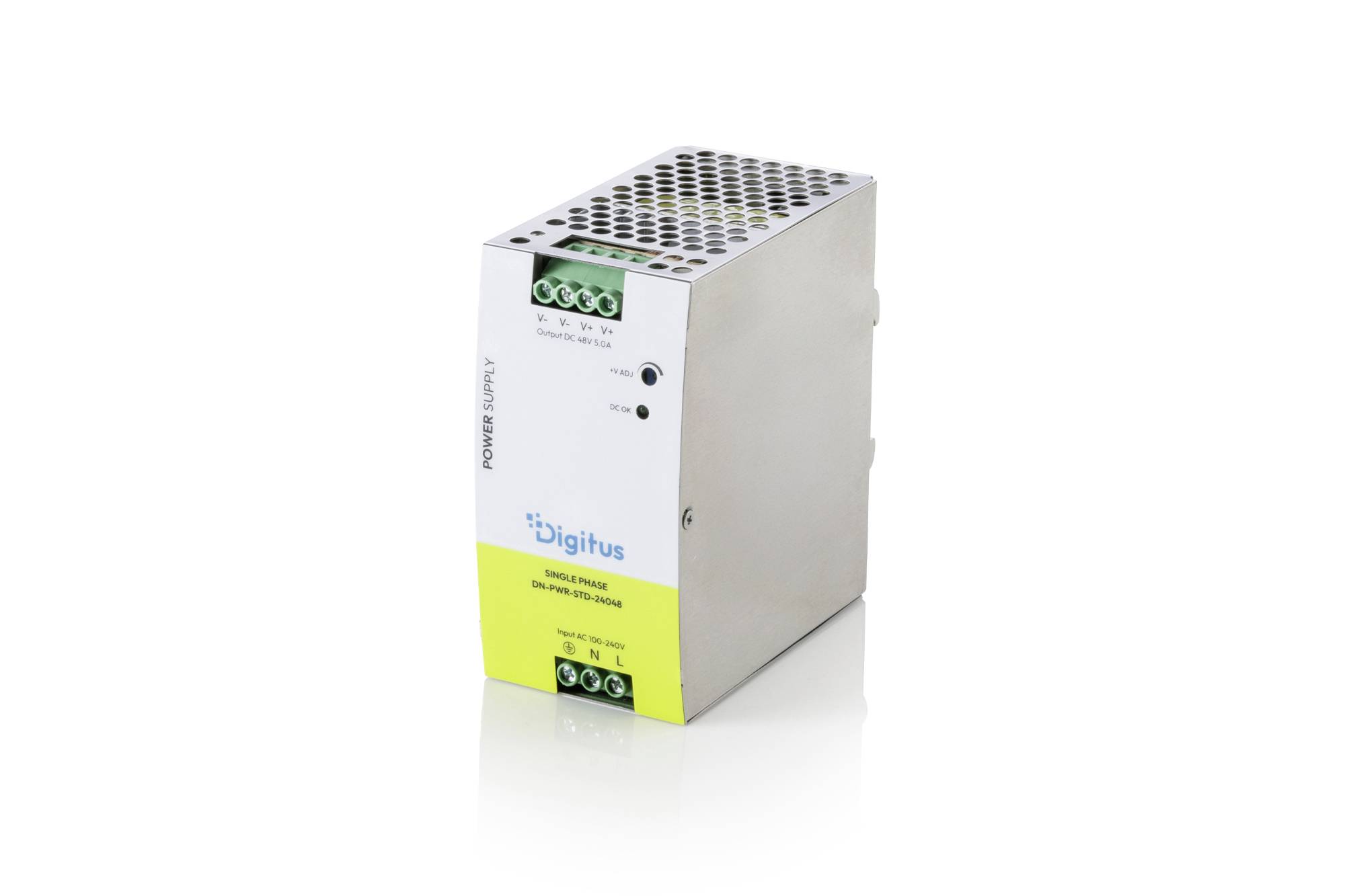

Industrial DIN-rail power supply module with perforated metal casing and green terminal blocks, labeled 'Digitus'.

Product image of a Digitus industrial power supply unit, labeled '48 VDC | 5 A | 240 W,' with icons for wide input voltage, short circuit, overvoltage protection, and free air convection.

Digitus promotional graphic showing DIN rail mountable power supply units on a rail, with text 'DIN RAIL MOUNTABLE' and 'The power supply unit can be easily mounted on a DIN rail (TS-35 / 7.5 & 15)'

Product image showing a 'COMPACT DESIGN' control cabinet component, comparing a 5 cm-wide smaller unit with a 13 cm-wide larger unit and 12.5 cm height, emphasizing space-saving functionality.<br>

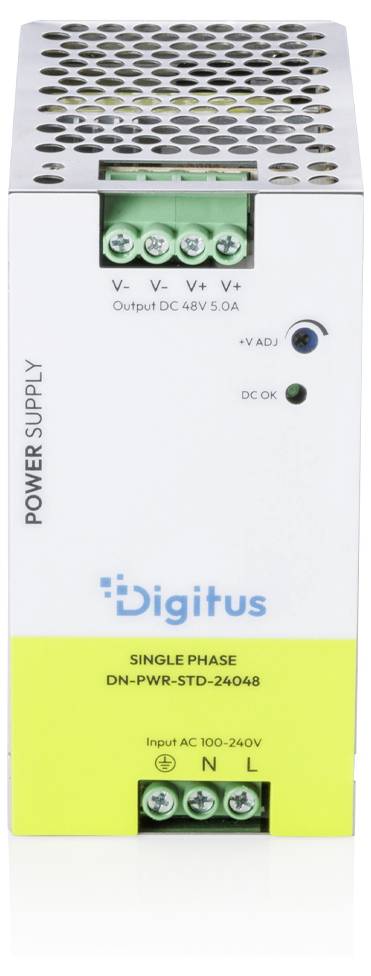

Front view of a Digitus single-phase power supply unit labeled 'DN-PWR-STD-24048' with AC input and 48V 5.0A output terminals and status LEDs.

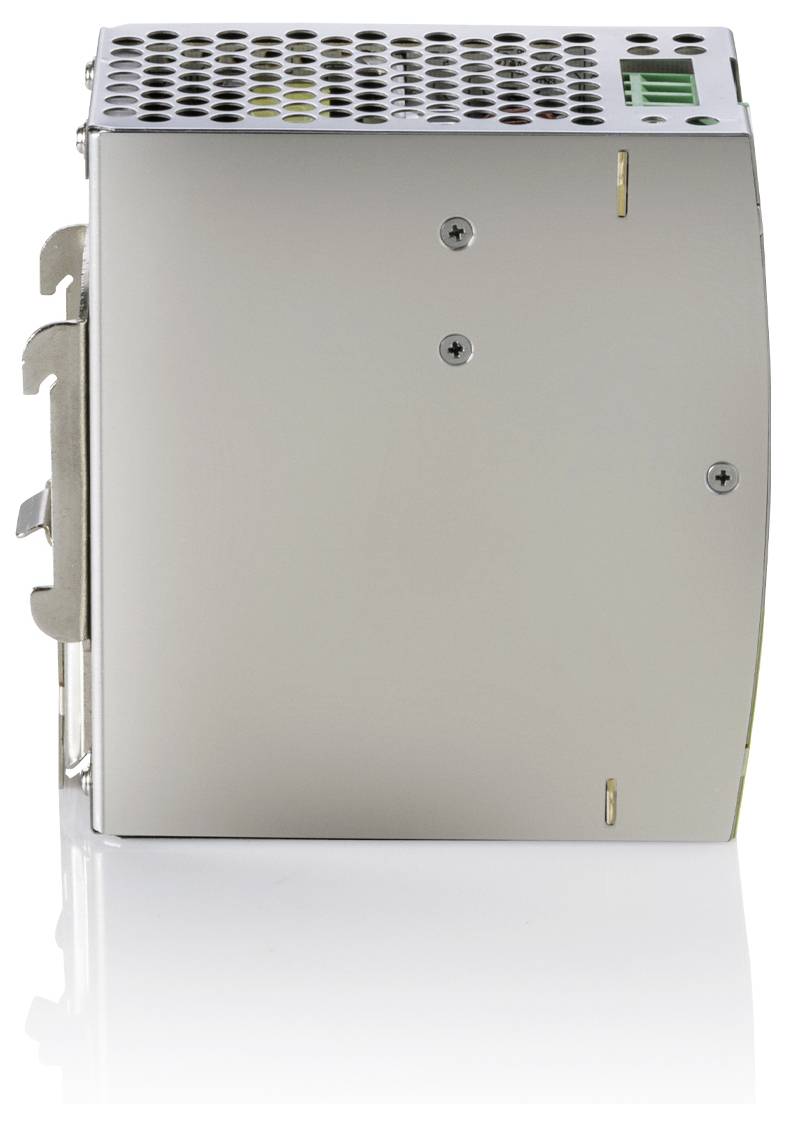

Metal rectangular power supply unit with vented top and mounting tabs, shown against a white background.

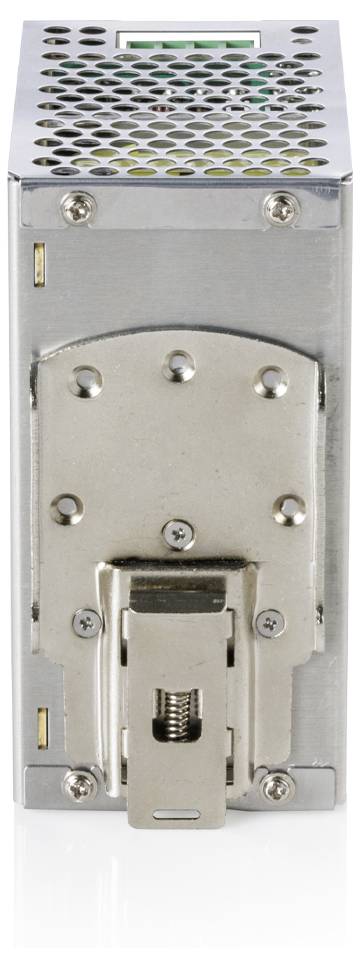

Close-up of a metal electrical power supply unit with vent holes, screw fasteners, and a front connector socket.

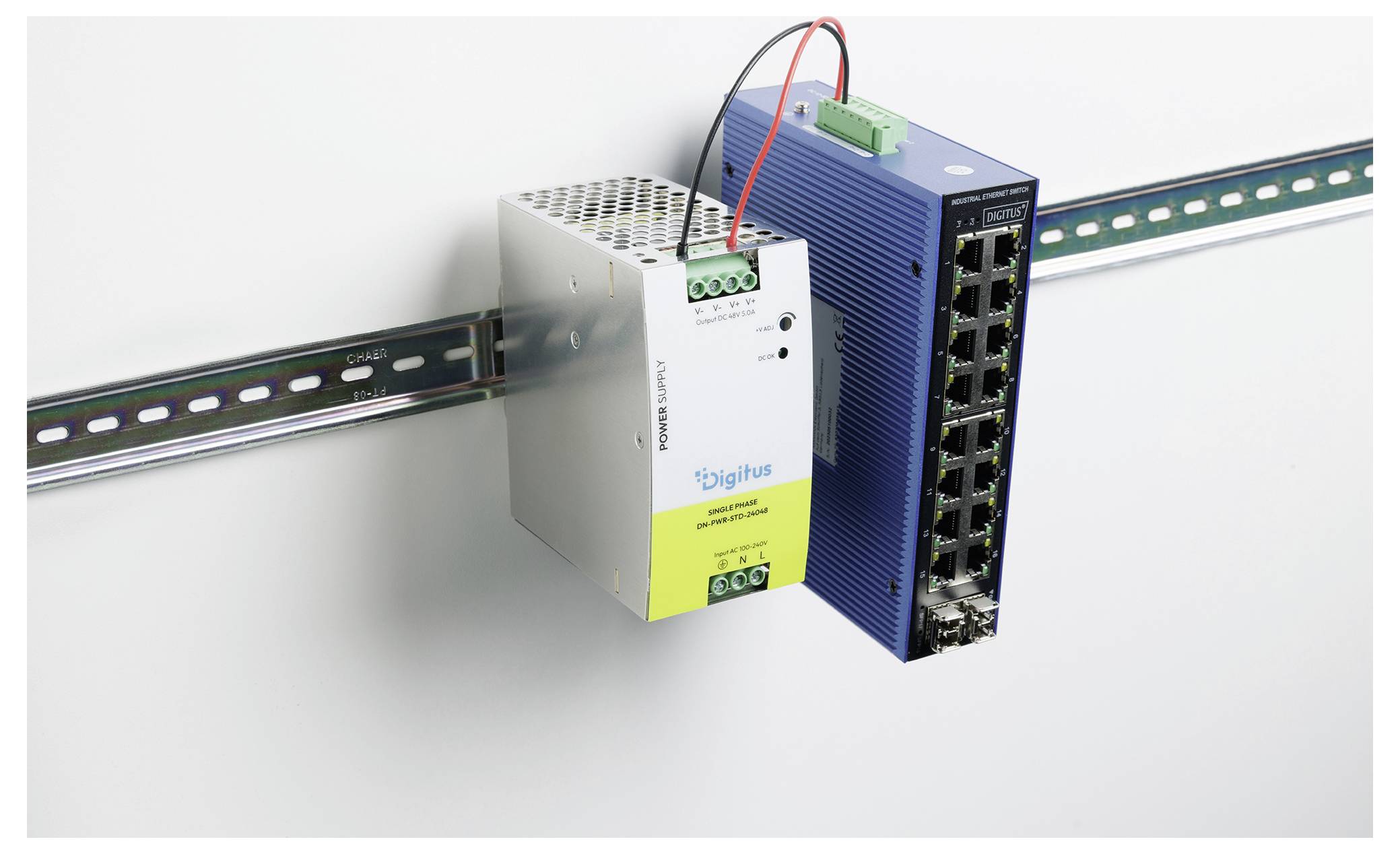

Industrial Ethernet controller and switch mounted on DIN rails with connected power and signal wires.

1/8

Fast track dispatch on Wed 14 Oct

5 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 85.99 / piece)

€ 85.99

incl. VAT

Only 5 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Digitus industrial power supply, 48V DC, 5A, 240W, AC-DC, Metallic housing, for DIN-rail mounting

High efficiency up to 90% – reduces heat development and power loss
Wide-range input 90–264 V AC – can be used universally
Stable 48 V DC output voltage (adjustable from 48 to 55 V) - precise and reliable
Comprehensive protection - short circuit, overload, overvoltage and temperature cut-off
Robust metal casing – durable and resistant to external influences
Compact DIN rail mounting – easy integration in control and control cabinets
Fanless design – noiseless, maintenance-free continuous operation
Reliable 24/7 operation – designed for industrial environments

Technical specifications

Output voltage 48 Vdc (adjustable from 48–55 V)
Output current: 5 A
Power output: 240 W
Input voltage 90–264 VAC, 47–63 Hz
Efficiency: Up to 90 %
Protection: Short circuit, overload, overvoltage, overheating
Cooling: Free air convection
Mounting:DIN-rails TS-35 / 7.5 & 15
Case material: metal
Dimensions (H × W × D) 125 × 113 × 50 mm

Product type: Industrial PSU

Min. input voltage: 90 V AC

Output voltage: 48 - 55 V DC

Input voltage (max.): 264 V AC

Max. output current: 5 A

Output current (max.) - rounded: 5 A

: 240 W

Output type (power supply units): Adjustable

Output voltage (nominal): 48 V DC

Connection: Clamp

Dim: (L x W x H) 50 x 113 x 125 mm

Output voltage (max.): 55 V DC

Output voltage (min.): 48 V DC

Manufacturer part #: DN-PWR-STD-24048

Content: 1 pc(s)

PSU features: Adjustable voltage output

Width: 113 mm

Height: 125 mm

Length: 50 mm

Type: DN-PWR-STD-24048

Efficiency: 90 %

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3791054 Digitus DN-PWR-STD-24048 Industrial PSU 48 V DC 5 A 240 W Content 1 pc(s)

Description

The Digitus® power supply unit DN-PWR-STD-24048 is a powerful power supply for industrial applications, control and automation systems. With an output power of 240 watts and a constant output current of 5 amps the device delivers a stabilized 48-V DC voltage for the most varied electronic systems. The wide input voltage range (90–264 V AC) enables universal use worldwide – Ideal for industrial, building automation and IoT environments. The metal housing offers excellent heat dissipation, high stability and protection against external influences. Thanks to its compact design, the power supply can be easily mounted on a DIN rail (TS-35 / 7.5 & 15) and saves space in the switch cabinet. The integrated protection concept ensures operation against short circuit, overload, overvoltage and overheating. Free air convection means the device is cooled effectively, without a fan, silent and maintenance-free. With an efficiency of up to 90 % and an adjustable output voltage (48–55 V DC), the power supply offers maximum flexibility and energy efficiency in professional use.

This text is machine translated.
