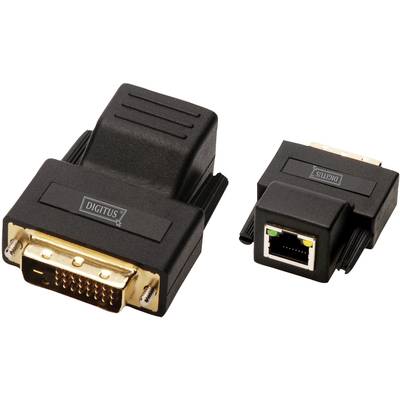

Digitus DS-54101 DVI Extension via RJ45 network cable 75 m
EAN:
Part number:
Item no:
Number
Total (€ 75.62 / piece)
€ 75.62
plus VAT.
Highlights & Details
Digitus DS-54101 DVI Extension via RJ45 network cable 75 m
- Extends your DVI signal by up to 70 m over a simple network cable
- Supports a maximum resolution of 1920 x 1200 pixels at a distance of 50 m
- Supports a maximum extension of up to 70 m at a resolution of 800 x 600 pixels
Technical specifications
- Product type
Extension
- Transfer type
via RJ45 network cable
- Interfaces (input)
DVI
- Interfaces (output)
DVI
- Features
built-in LED display
built-in amplifier
- Resolution (max.)
1920 x 1200 p
- Range (max.)
75 m
- Factory colour
Black
- Weight
70 g
- Length
60 mm
- Width
40 mm
- Height
27 mm
- Dim
(L x W x H) 60 x 40 x 27 mm
- Cable length
50 m
- Version
Cable
- Type A
SDI
- Type B
SDI
- Cable use
PC
- Connection type
DVI
CAT 5
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1345745 Digitus DS-54101 DVI Extension via RJ45 network cable 75 m
Conformity certificate
Conformity certificate 1345745 Digitus DS-54101 DVI Extension via RJ45 network cable 75 m
Description
The DVI Cat5 extender extends the range of your PC DVI connection on up to 70 m over a simple Cat5 cable. The possible resolution is dependent on the selected distance.
This text is machine translated.
This text is machine translated.
Features
- DVI-D extension over CAT 5 cable
- Supports a maximum resolution of 1920 x 1200 pixels at a distance of 50 m
- Supports a maximum extension of up to 70 m at a resolution of 800 x 600 pixels
- No external power supply required
Scope of delivery
- DVI Extender
- User manual
