SpeaKa Professional SP-DPR8K DisplayPort DP1.4 Repeater 20 m
EAN:
Part number:
Item no:
Number
Total (€ 15.12 / piece)
€ 15.12
plus VAT.
14 days return policy included
Highlights & Details
SpeaKa Professional SP-DPR8K DP1.4 repeater, 8K@60HZ
- Extend the DisplayPort signal up to 10 meters
- Ideal for display applications in conference rooms and similar settings.
- Supports DisplayPort resolutions up to 8K @60Hz
- Easy to use
- HDTV compatible
Technical specifications
- Product type
DP1.4 Repeater
- Interfaces (input)
DisplayPort
- Interfaces (output)
DisplayPort
- Resolution (max.)
7680 x 4320 p
- Range (max.)
20 m
- Factory colour
Silver
- Weight
20 g
- Length
66.70 mm
- Width
23.30 mm
- Height
10.80 mm
- Dim
(L x W x H) 66.70 x 23.30 x 10.80 mm
- No. of outputs
1 x
- No. of inputs
1 x
- Supported monitors
1
- Power supply (LOV)
via USB
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3644588 SpeaKa Professional SP-DPR8K DisplayPort DP1.4 Repeater 20 m
Description
The SpeaKa Professional SP-DPR8K DP 1.4 repeater is used for extension of DisplayPort signals. It is suitable for use in professional environments such as conference rooms, in order to connect display devices over large distances with a signal source.
Signal extension and range
The device enables a signal transmission with a maximum overall range of up to 20 meters. For this purpose, standard DP 1.4 cables with a length of up to 10 meters can be used for the input as well as for the output.
Resolution and standards
The HDTV compatible repeater is based on the DisplayPort 1.4 standard and supports HDCP 2.3. The signal processing enables image resolutions of up to 8K at 60 Hz (4:4:4 with DSC) as well as 7680 x 4320 pixels at 30 Hz (4:4:4).
Housing and power supply

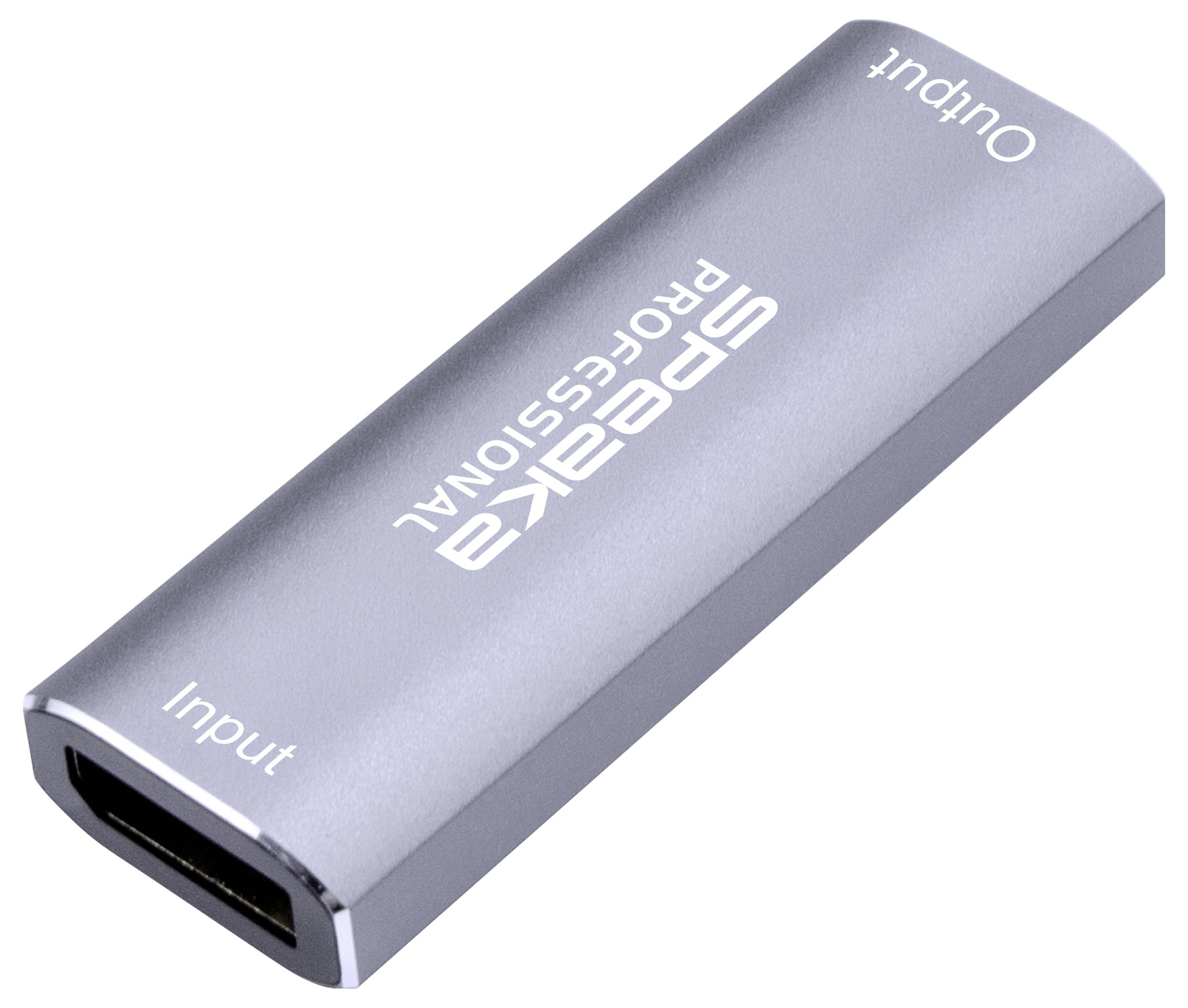

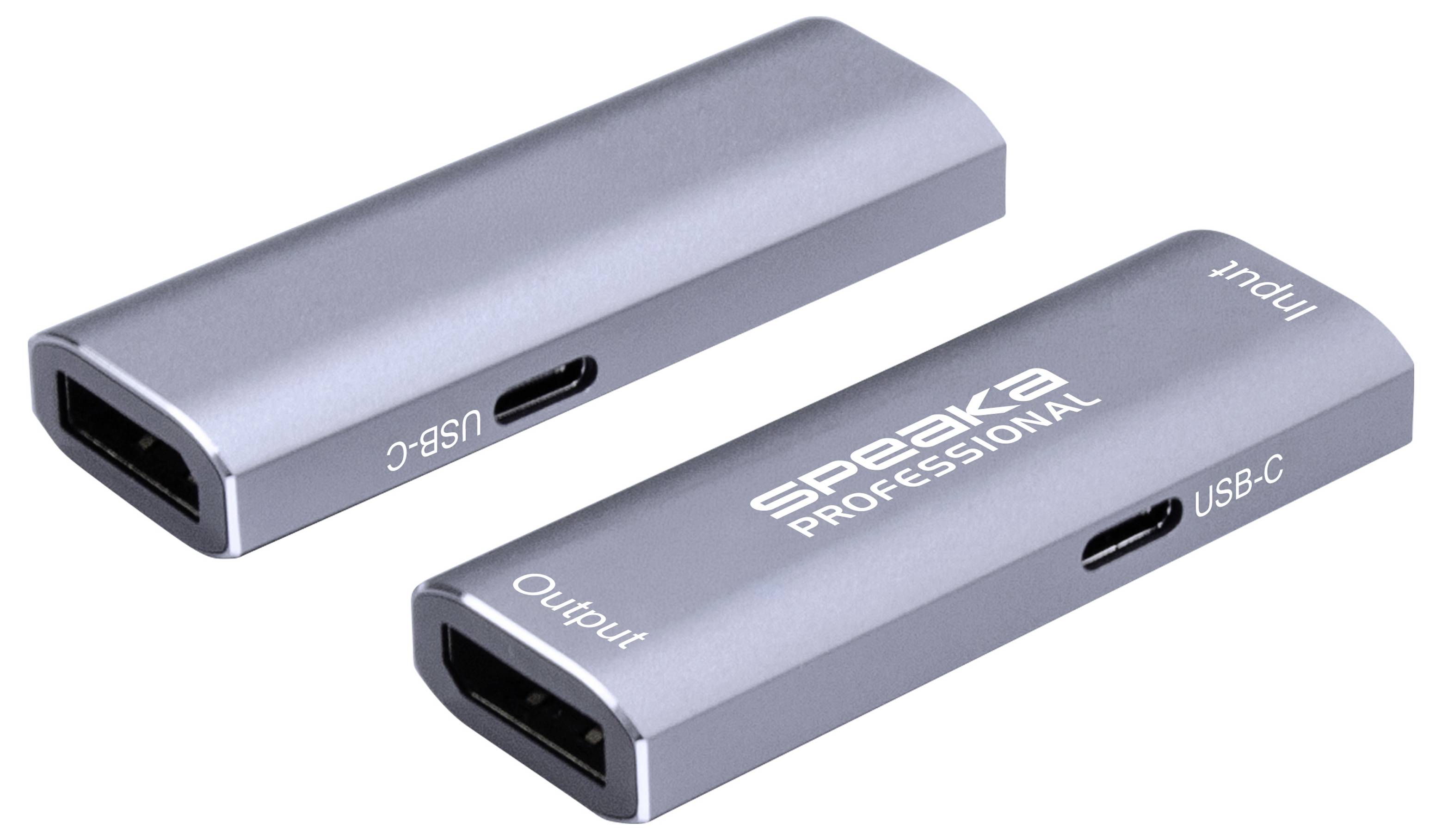

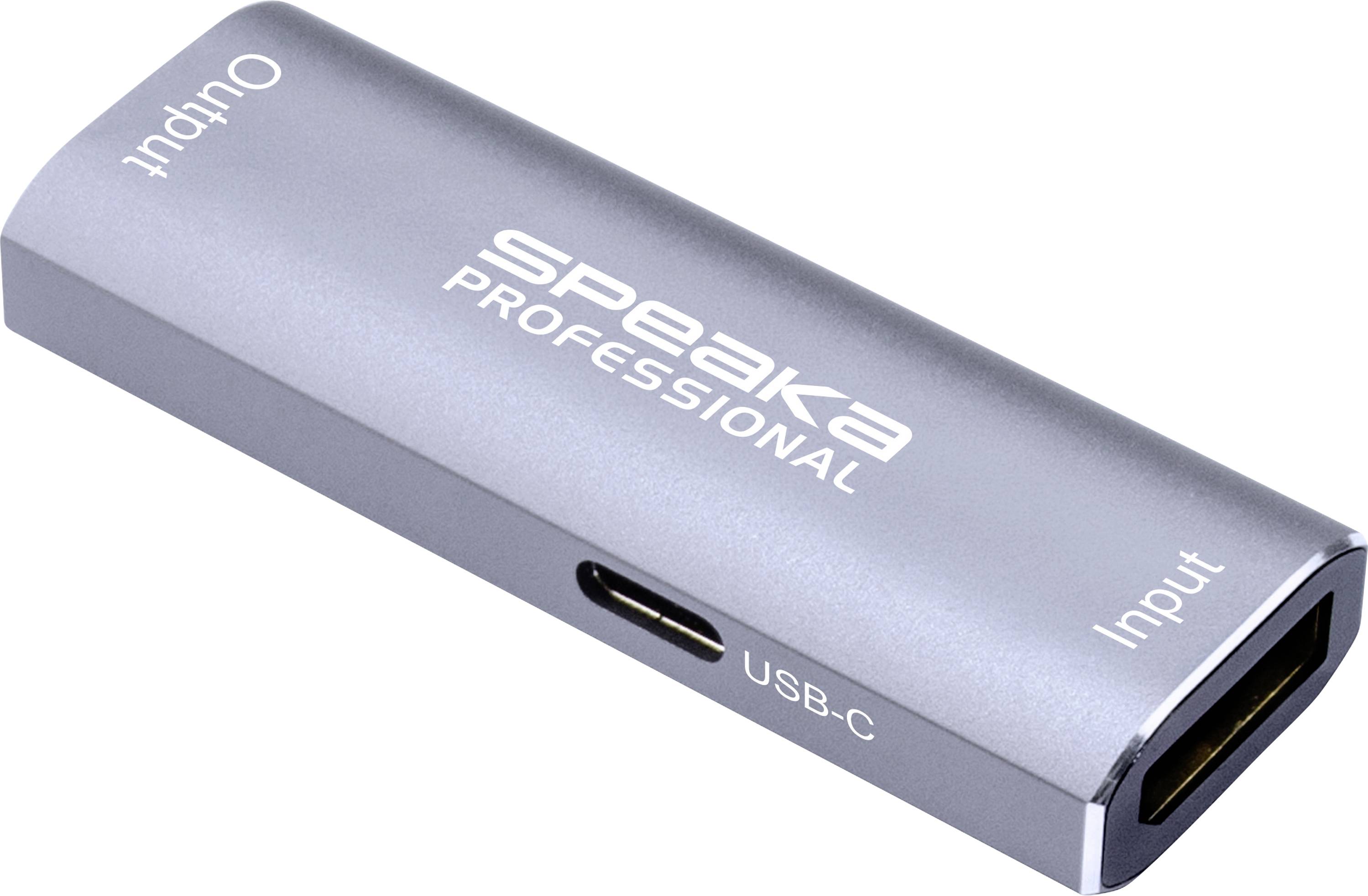

The connections and electronics are housed in a silver housing that has dimensions of 23.30 x 10.80 x 66.70 mm (W x H x L) and a weight of 20 g. The repeater is powered by an integrated USB-C® connector; a suitable USB-A-to-USB-C® cable is included.
This text is machine translated.
Signal extension and range
The device enables a signal transmission with a maximum overall range of up to 20 meters. For this purpose, standard DP 1.4 cables with a length of up to 10 meters can be used for the input as well as for the output.
Resolution and standards
The HDTV compatible repeater is based on the DisplayPort 1.4 standard and supports HDCP 2.3. The signal processing enables image resolutions of up to 8K at 60 Hz (4:4:4 with DSC) as well as 7680 x 4320 pixels at 30 Hz (4:4:4).
Housing and power supply
The connections and electronics are housed in a silver housing that has dimensions of 23.30 x 10.80 x 66.70 mm (W x H x L) and a weight of 20 g. The repeater is powered by an integrated USB-C® connector; a suitable USB-A-to-USB-C® cable is included.
This text is machine translated.
Features
- DP 1.4, HDCP 2.3
- Supports resolution up to 8K60Hz 4:4:4 (DSC),7680x4320@30Hz 4:4:4
- Length of input cable: ≤ 10m DP1.4 standard cable
- Length of output cable: ≤ 10m DP1.4 standard cable
- USB-C® power port

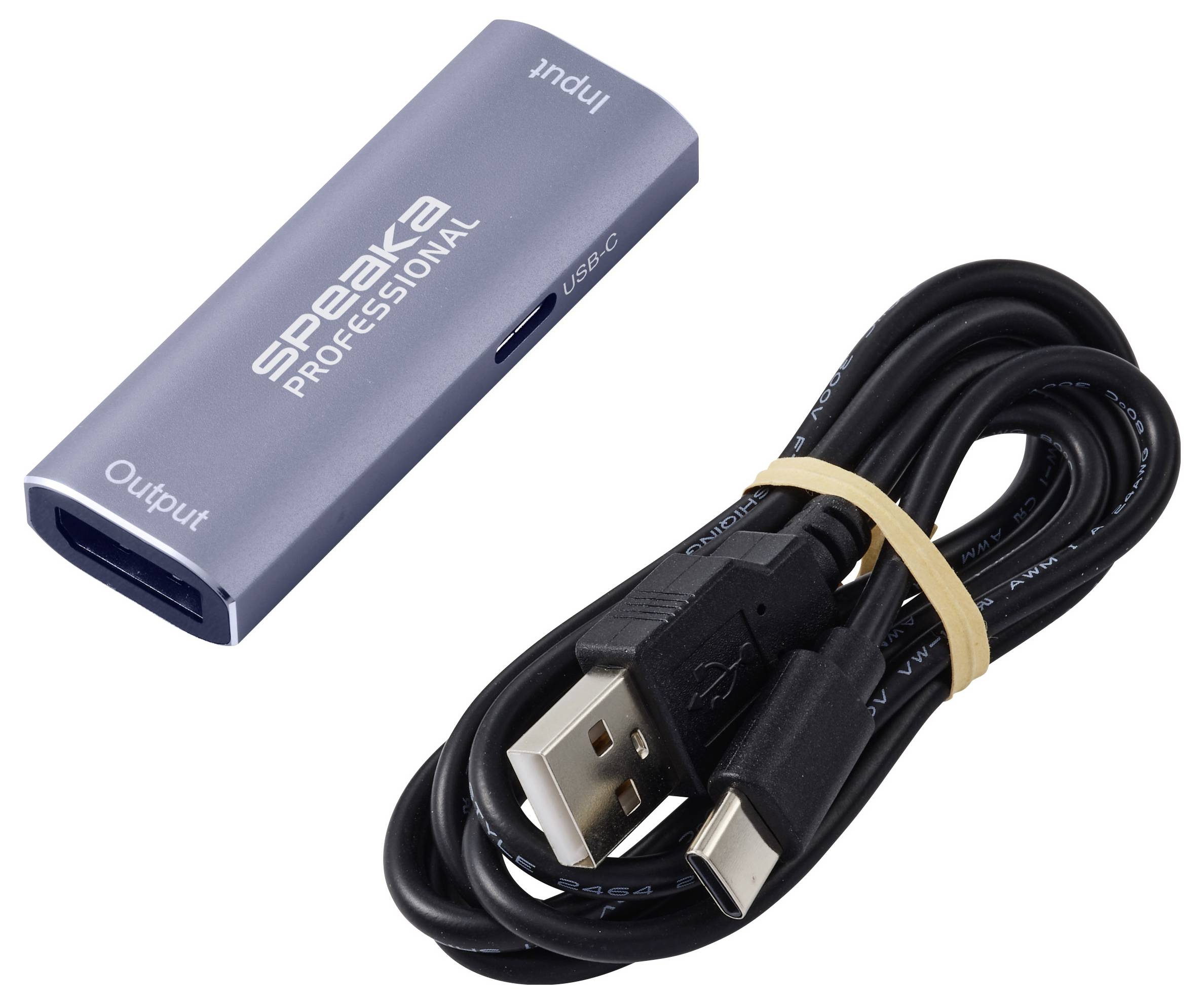

Scope of delivery
- unit
- USB-A - USB-C® cable
