Dino Lite Digital microscope Digital zoom (max.): 220 x
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,192.44 / piece)
€ 1,192.44
plus VAT.

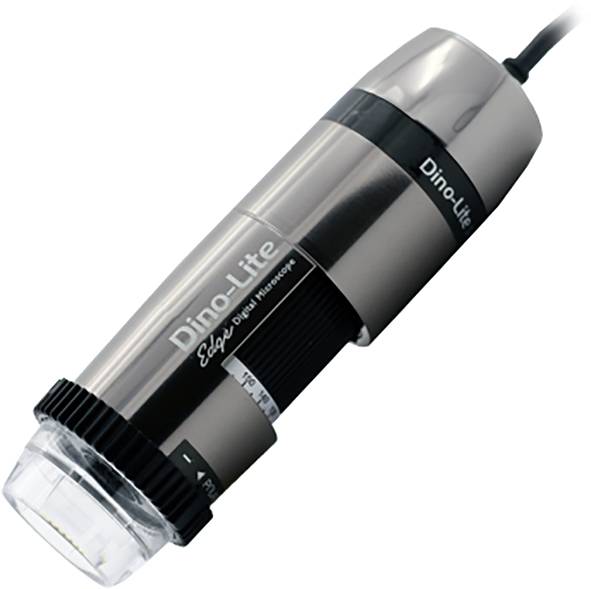

Digital Microscope Edge
Highlights & Details
- 5 Megapixel edge sensor
- Integrated Polarizer
- Depth of field function
Technical specifications
- Cable length: 1,8 m
- Magnification: 10-220 x
- Digital zoom (max.)
220 x
- Length
105 mm
- Weight
137 g
- Bulb type
LED (monochrome)
- Type
AM7915MZT
- Clearance (max.)
136 mm
- Clearance (min.)
11.9 mm
- Operating voltage
USB
- Product type
Digital microscope
Documents & Downloads
Datasheet
Datasheet 1642354 Dino Lite Digital microscope Digital zoom (max.): 220 x
User & Safety Instructions
User & Safety Instructions 1642354 Dino Lite Digital microscope Digital zoom (max.): 220 x
Description
With the extended dynamic range (EDR). The Details darker or brighter areas within the object by layering of images with different exposure are highlighted. The extended depth of field function (EDOF) schichtet images automatically with different sharpen image for the improvement of the depth of field on rough or uneven surfaces. With the built-in automatic magnification reading (AMR), the measurements can be carried out quickly and easily. Because of the built polarisation filter, this model is ideal for the work with shiny or reflective objects such as metal, plastic, glass, jewelry, electronics, etc.
This text is machine translated.
This text is machine translated.
Features
- USB 2.0 interface
- Up to 30 frames per second
- Optimum lighting with 8 white LEDs.
- Compatible with Windows XP, Vista, 7, 8 & 10, MacOS 10.9 and higher.
Scope of delivery
- Digital microscope
- Bag
- Software CD
- Standard Calibration object
- User manual
- Quick guide.
