Buy Dino Lite USB microscope 1.3 MP Digital zoom (max.): 140 x

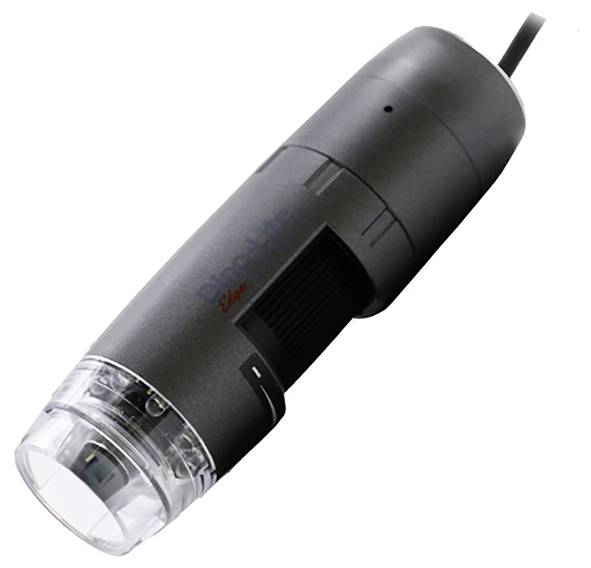

Portable digital microscope, "Dino-Lite" model, with focusing wheel and cable. Used for magnified image viewing.

A digital microscope in a sleek, compact design with a clear lens at the front, used for magnifying objects for detailed examination.

1/2

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 536.97 / piece)

€ 536.97

plus VAT.

Report legal concerns

Highlights & Details

Polarization filter AM4115TL

Lighting with 8 white LEDs (switchable)
1.3 Mio pixel resolution
Integrated polarization filter
Measuring function with calibration

Technical specifications

IMAGE FORMATS: BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
VIDEO FORMAT: WMV, FLV, SWF
Calibration and measurement function by software
Image repetition: Max. 30 fps
Cable length: 1,8 m

Digital zoom (max.): 140 x

Digital zoom (min.): 10 x

Resolution: 1.3 MP

Operating voltage: Via USB

Dim: (L x W) 105 mm x 32 mm

Length: 105 mm

Width: 32 mm

Type: USB

Weight: 105 g

Type: AM4115TL

Product type: USB microscope

Documents & Downloads

Datasheet

Datasheet 2391240 Dino Lite USB microscope 1.3 MP Digital zoom (max.): 140 x

User & Safety Instructions

User & Safety Instructions 2391240 Dino Lite USB microscope 1.3 MP Digital zoom (max.): 140 x

Description

The wide magnification range (10-140x), the large field of view and the working distance of up to 23 cm make the AM4115TL the ideal solution for all situations, in which a greater distance between the microscope and the object is required or when working under the microscope (repair, rework, assembly, etc.).

This text is machine translated.
