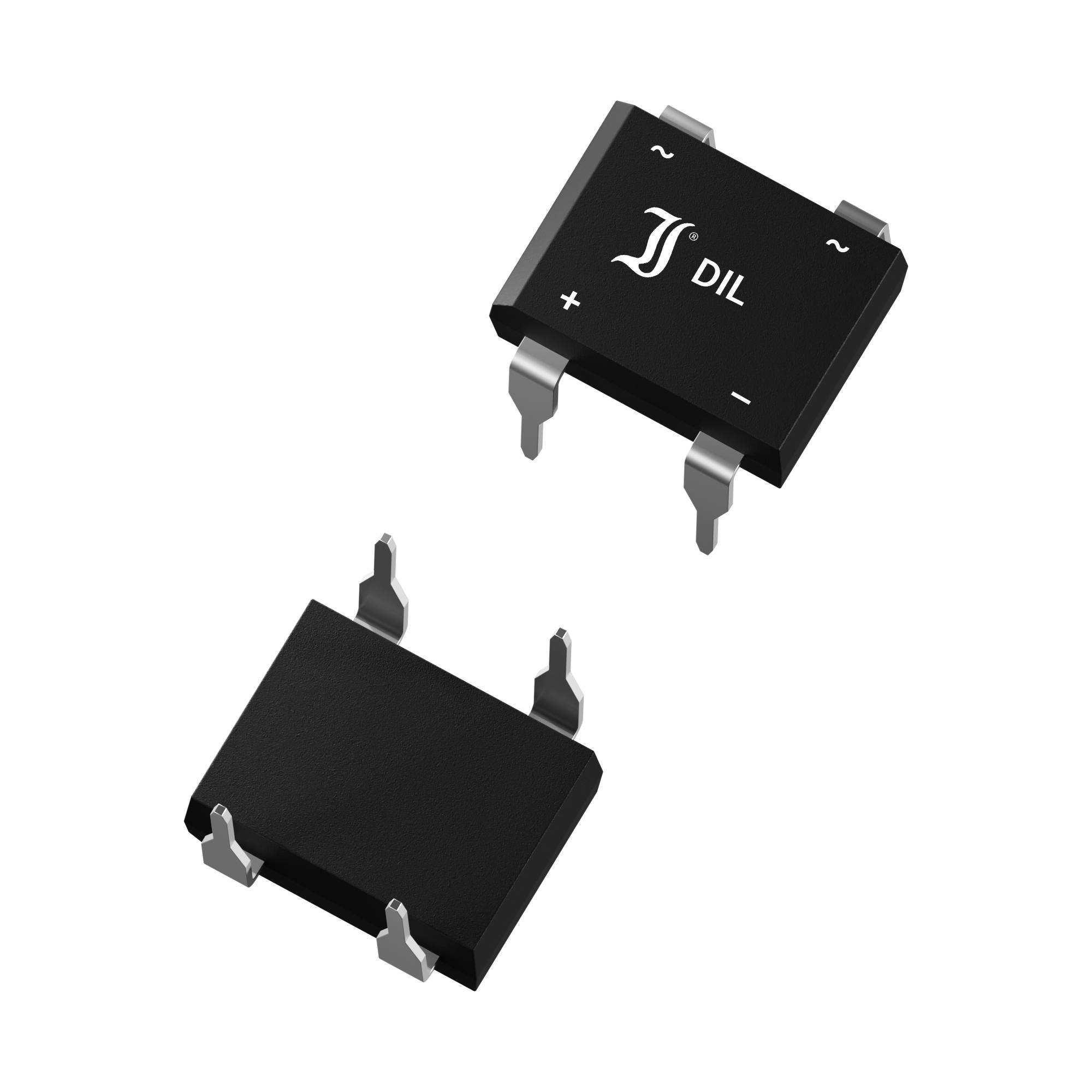

Diotec B80FD Diode bridge DIL 160 V 1 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
60
-
€ 0.32656
180
9% = € 0.03
€ 0.29682
300
13% = € 0.04
€ 0.28492
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 60
Total (€ 0.32656 / piece)
€ 19.59
plus VAT.
Technical specifications
- Type DILDIL casingPeriodic Peak Reverse Voltage - VRRM 160 VContinuous current - IFAV 1.00 AJunction temperature - Tjmax 150 °CReverse delay time - trr: 300 nsSurge current - IFSM 40.00 AForward voltage - VF 1.30 VIF 1.00 AReverse current - IR 5,000 µAVR 160 VLock layer capacity - CJ: PFVR V
- Type
B80FD
- Enclosure
DIL
- Manufacturer
Diotec
- Manuf. code
DIO
- U(RRM)
160 V
- Forward current I(F)
1 A
- Forward voltage U(F)
1.30 V
- Forward voltage reference
1.00 A
- I(FSM) 50Hz
40 A
- I(FSM) 60Hz
40.00 A
- Reverse leakage current I(r)
5 µA
- Reverse leakage current I(r) reference
160 V
- Operating temperature (max.)
150 °C
- Mounting type
Push-fit
- RoHS-compliant
Yes
- Product type
Diode bridge
Documents & Downloads
Datasheet
Datasheet 2809110 Diotec B80FD Diode bridge DIL 160 V 1 A
User & Safety Instructions
User & Safety Instructions 2809110 Diotec B80FD Diode bridge DIL 160 V 1 A
Description
Rectifiers from leading manufacturers. Full details free to download from our comprehensive product documents library.
