Diotec DBI25-18A Diode bridge DBI 1800 V 12.50 A

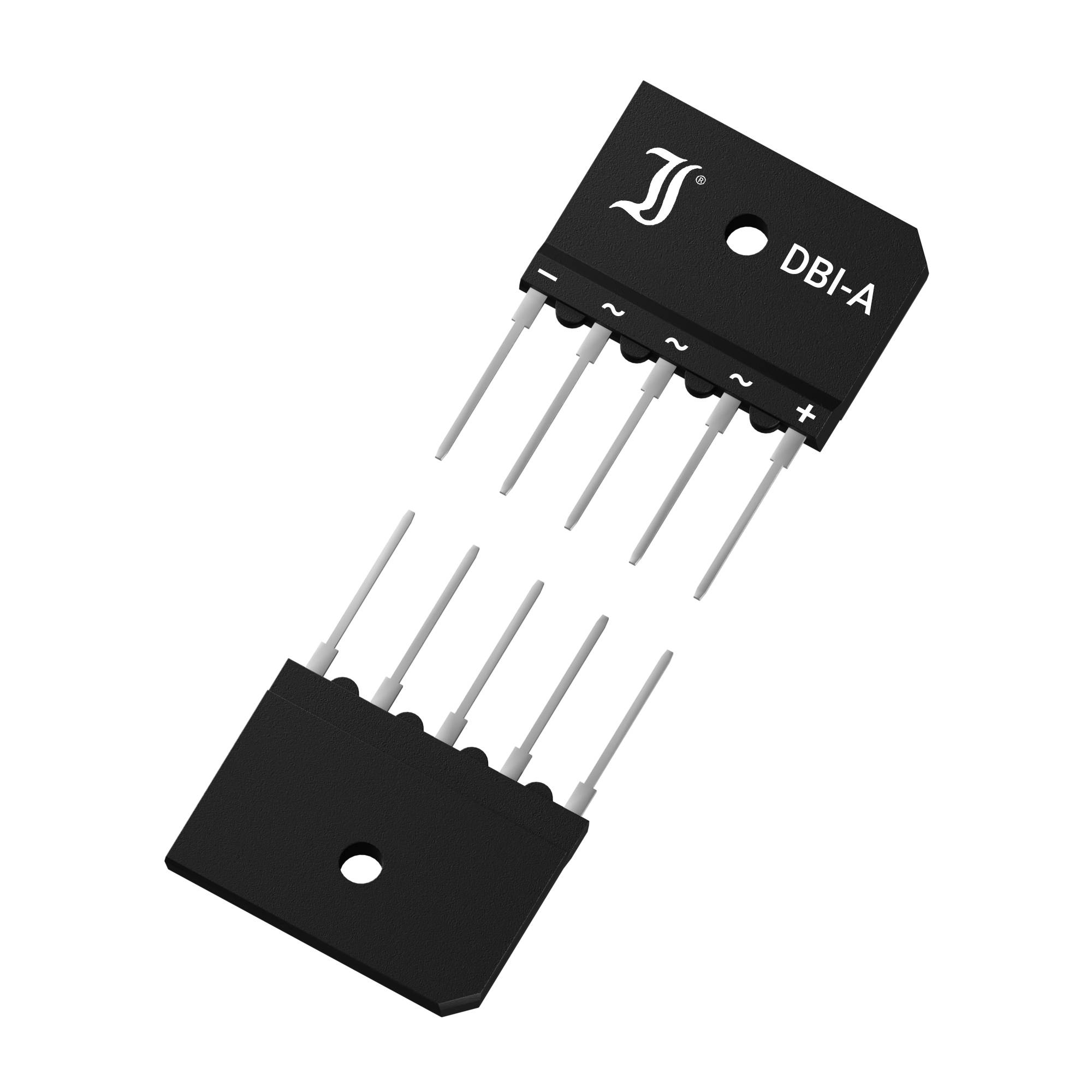

A black electronic component with six metal pins, marked with 'DBI-A'. Two are labelled with plus and minus symbols, the remaining four with a wavy line.
Image similar
Product type
Diode bridge
Enclosure
DBI
U(RRM)
1800 V
Forward current I(F)
12.50 A
Forward voltage U(F)
15 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Mon 14 Dec
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Minimum order quantity: 10
Total (€ 7.01009 / piece)
€ 70.10
prav.tax.untaxed incl. VAT
plus € 0.02
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Type

DBI25-18A

Product type

Diode bridge

Enclosure

DBI

Manufacturer

Diotec

Manuf. code

DIO

U(RRM)

1800 V

Forward current I(F)

12.50 A

Forward voltage U(F)

15 V

Forward voltage reference

12.50 A

I(FSM) 50Hz

370 A

I(FSM) 60Hz

370.00 A

Reverse leakage current I(r)

5 µA

Reverse leakage current I(r) reference

1800 V

Operating temperature (max.)

175 °C

Mounting type

Through-hole mounting

RoHS-compliant

Yes

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2809543 Diotec DBI25-18A Diode bridge DBI 1800 V 12.50 A

User & Safety Instructions

User & Safety Instructions 2809543 Diotec DBI25-18A Diode bridge DBI 1800 V 12.50 A

Description

Rectifiers from leading manufacturers. Full details free to download from our comprehensive product documents library.
