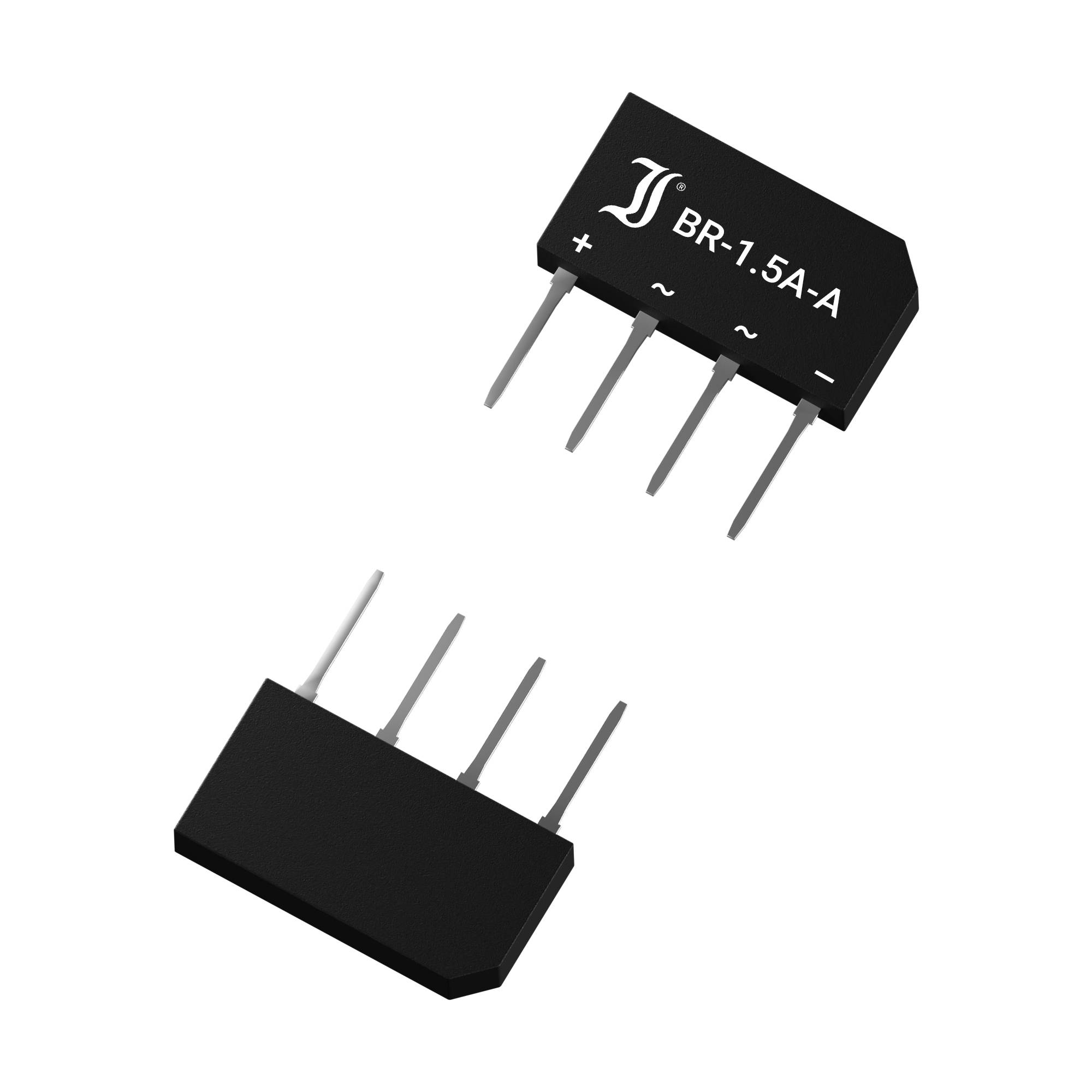

Image similar
Diotec GBS4B Diode bridge GBS_SIL-1.5-2.3 100 V 2 A
Product type
Diode bridge
Enclosure
GBS_SIL-1.5-2.3
U(RRM)
100 V
Forward current I(F)
2 A
Forward voltage U(F)
15 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Minimum order quantity: 3
Total (€ 1.26145 / piece)
€ 1.26
incl. VAT
14-day return policy included
Technical specifications
- Type SILHousing: GBS_SIL-1.5-2.3Periodic Peak Reverse Voltage - VRRM 100 VContinuous current - IFAV 4.00 AJunction temperature - Tjmax 150 °CReverse delay time - trr: NsSurge current - IFSM 80.00 AForward voltage - VF 1.05 VIF 2.00 AReverse current - IR 5,000 µAVR 100 VLock layer capacity - CJ: PFVR V
- Type
GBS4B
- Product type
Diode bridge
- Enclosure
GBS_SIL-1.5-2.3
- Manufacturer
Diotec
- Manuf. code
DIO
- U(RRM)
100 V
- Forward current I(F)
2 A
- Forward voltage U(F)
15 V
- Forward voltage reference
2.00 A
- I(FSM) 50Hz
80 A
- Reverse leakage current I(r)
5 µA
- Reverse leakage current I(r) reference
100 V
- Operating temperature (max.)
150 °C
- Mounting type
Through-hole mounting
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2809736 Diotec GBS4B Diode bridge GBS_SIL-1.5-2.3 100 V 2 A
User & Safety Instructions
User & Safety Instructions 2809736 Diotec GBS4B Diode bridge GBS_SIL-1.5-2.3 100 V 2 A
Description
Rectifiers from leading manufacturers. Full details free to download from our comprehensive product documents library.
