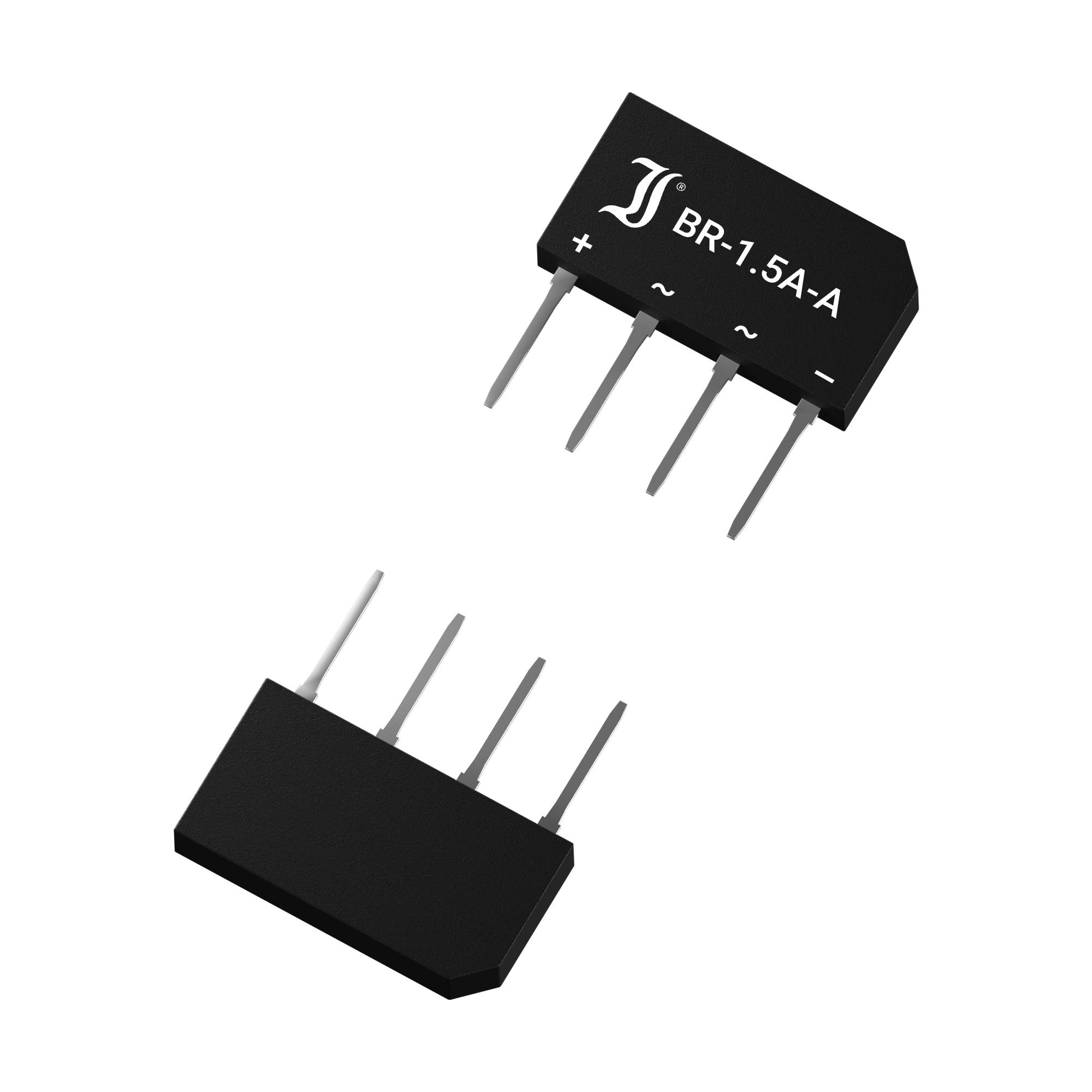

Image similar
Image similar
Diotec GBS4K Diode bridge GBS_SIL-1.5-2.3 800 V 2 A
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
30
-
€ 0.80255
90
8% = € 0.06
€ 0.73794
150
11% = € 0.09
€ 0.71210
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 30
Total (€ 0.80255 / piece)
€ 24.08
plus VAT.
Technical specifications
- Type SILHousing: GBS_SIL-1.5-2.3Periodic Peak Reverse Voltage - VRRM 800 VContinuous current - IFAV 4.00 AJunction temperature - Tjmax 150 °CReverse delay time - trr: NsSurge current - IFSM 80.00 AForward voltage - VF 1.05 VIF 2.00 AReverse current - IR 5,000 µAVR 800 VLock layer capacity - CJ: PFVR V
- Type
GBS4K
- Enclosure
GBS_SIL-1.5-2.3
- Manufacturer
Diotec
- Manuf. code
DIO
- U(RRM)
800 V
- Forward current I(F)
2 A
- Forward voltage U(F)
15 V
- Forward voltage reference
2.00 A
- I(FSM) 50Hz
80 A
- I(FSM) 60Hz
80.00 A
- Reverse leakage current I(r)
5 µA
- Reverse leakage current I(r) reference
800 V
- Operating temperature (max.)
150 °C
- Mounting type
Through-hole mounting
- RoHS-compliant
Yes
- Product type
Diode bridge
Documents & Downloads
Datasheet
Datasheet 2809740 Diotec GBS4K Diode bridge GBS_SIL-1.5-2.3 800 V 2 A
Description
Rectifiers from leading manufacturers. Full details free to download from our comprehensive product documents library.
