Diotec KBP208G Diode bridge KBP 800 V 2 A

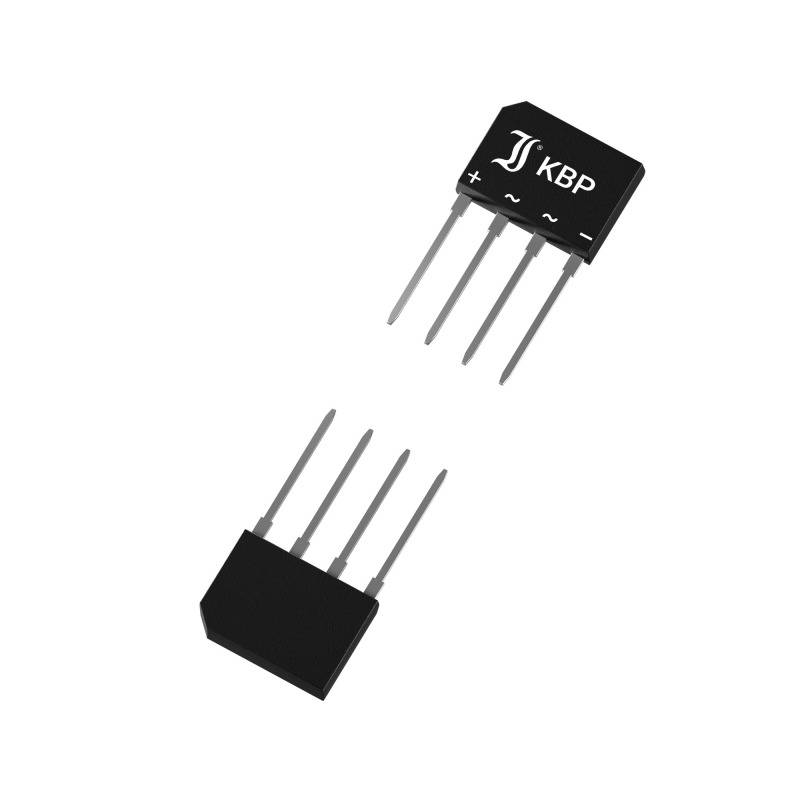

Two black electronic components, each with four metal pins, one displaying the 'KBP' logo. They are likely rectifiers.
Image similar
Product type
Diode bridge
Enclosure
KBP
U(RRM)
800 V
Forward current I(F)
2 A
Forward voltage U(F)
1.10 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 0.21332 / piece)
€ 0.21
prav.tax.untaxed incl. VAT
plus € 0.02
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Type SILKBP casingPeriodic Peak Reverse Voltage - VRRM 800 VContinuous current - IFAV 2.00 AJunction temperature - Tjmax 150 °CReverse delay time - trr: NsSurge current - IFSM 50.00 AForward voltage - VF 1.10 VIF 2.00 AReverse current - IR 5,000 µAVR 800 VLock layer capacity - CJ 25 pFVR 4 V
Type

KBP208G

Product type

Diode bridge

Enclosure

KBP

Manufacturer

Diotec

Manuf. code

DIO

U(RRM)

800 V

Forward current I(F)

2 A

Forward voltage U(F)

1.10 V

Forward voltage reference

2.00 A

I(FSM) 50Hz

50 A

Reverse leakage current I(r)

5 µA

Reverse leakage current I(r) reference

800 V

Operating temperature (max.)

150 °C

Mounting type

Through-hole mounting

RoHS-compliant

Yes

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2809822 Diotec KBP208G Diode bridge KBP 800 V 2 A

User & Safety Instructions

User & Safety Instructions 2809822 Diotec KBP208G Diode bridge KBP 800 V 2 A

Description

Rectifiers from leading manufacturers. Full details free to download from our comprehensive product documents library.
