Name: Diotec KBPC5001FP Diode bridge KBPC 100 V 25 A
Brand: Diotec
SKU: 2809859
Availability: BackOrder

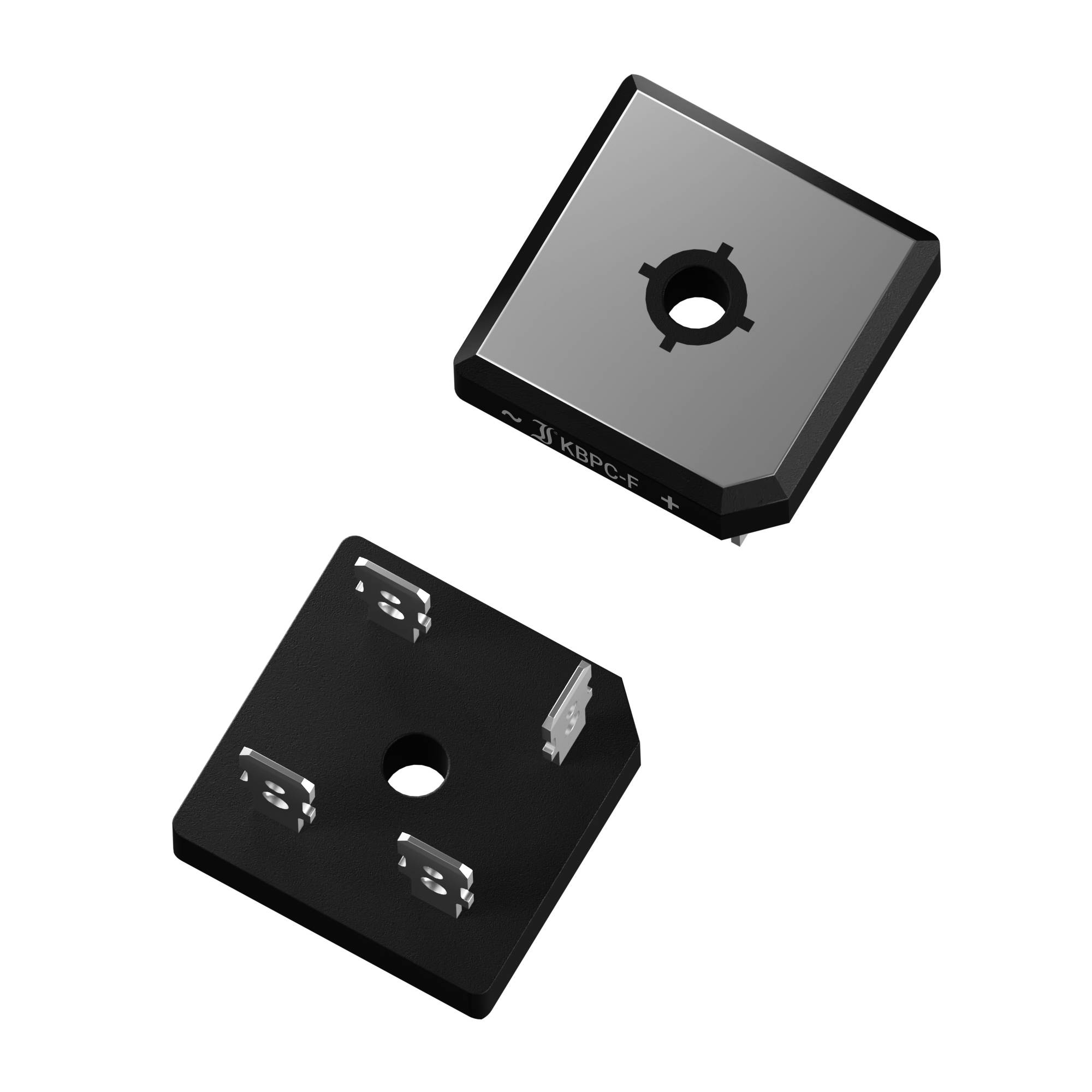

Two black, square electronic components, each with four connections. One is shown from a top-down view, the other from an angled perspective.

Image similar

Product type

Diode bridge

Enclosure

KBPC

U(RRM)

100 V

Forward current I(F)

25 A

Forward voltage U(F)

1.10 V

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 4 Dec

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 10

Total (€ 3.20727 / piece)

€ 32.07

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type: Fast-onKBPC casingPeriodic Peak Reverse Voltage - VRRM 100 VContinuous current - IFAV 50.00 AJunction temperature - Tjmax 150 °CReverse delay time - trr: NsSurge current - IFSM 400.00 AForward voltage - VF 1.10 VIF 25.00 AReverse current - IR 10,000 µAVR 100 VLock layer capacity - CJ: PFVR V

Type: KBPC5001FP

Product type: Diode bridge

Enclosure: KBPC

Manufacturer: Diotec

Manuf. code: DIO

U(RRM): 100 V

Forward current I(F): 25 A

Forward voltage U(F): 1.10 V

Forward voltage reference: 25.00 A

I(FSM) 50Hz: 400 A

I(FSM) 60Hz: 400.00 A

Reverse leakage current I(r): 10 µA

Reverse leakage current I(r) reference: 100 V

Operating temperature (max.): 150 °C

Mounting type: Fast-on

RoHS-compliant: Yes

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Enclosure

Forward current I(F)

Forward voltage U(F)

Mounting type

U(RRM)
