Name: Diotec KBPC600 Diode bridge KBPC6 50 V 3 A
Brand: Diotec
SKU: 2809868
Availability: InStock

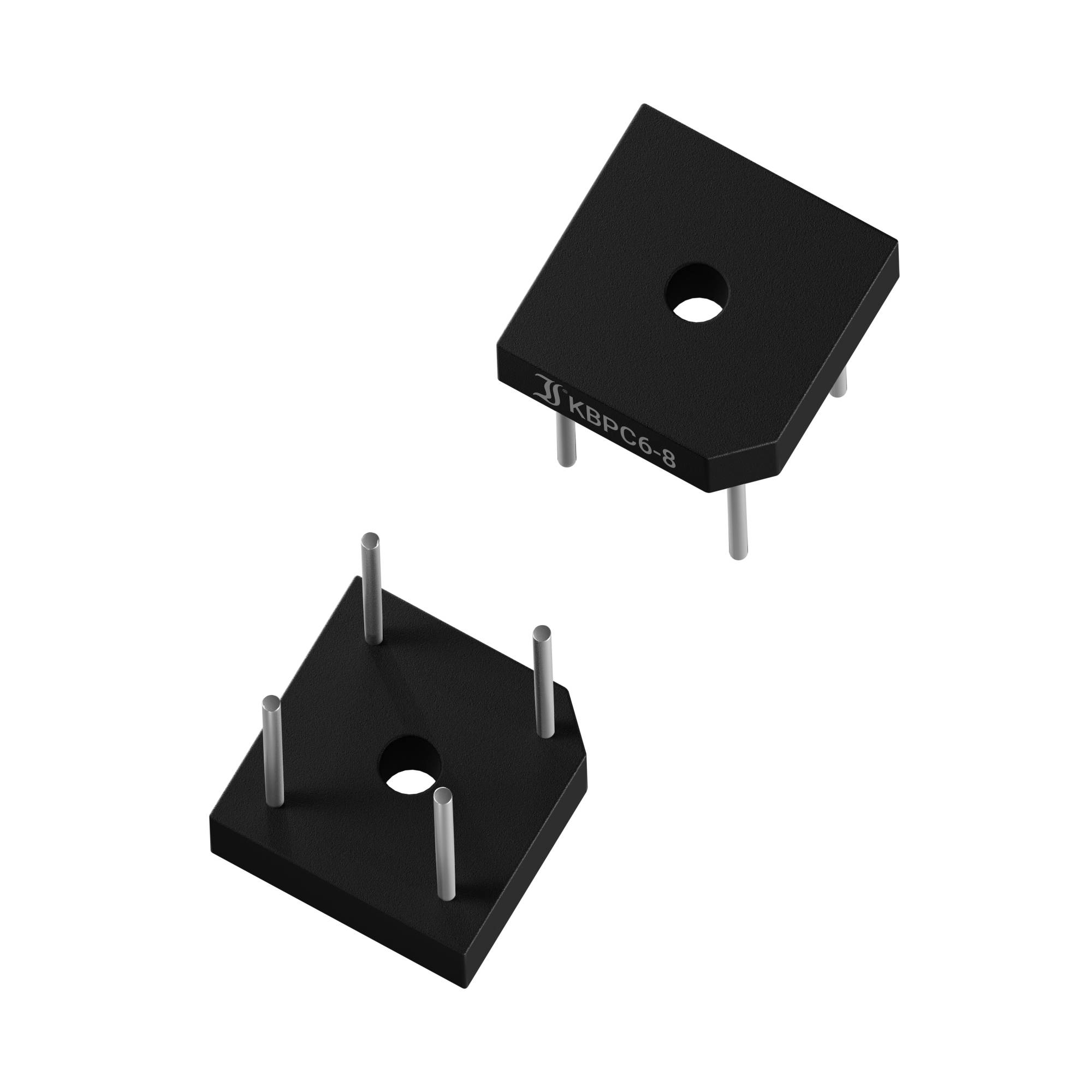

Two black bridge rectifiers with four pins, in a square format, on a white background.

Image similar

Product type

Diode bridge

Enclosure

KBPC6

U(RRM)

50 V

Forward current I(F)

3 A

Forward voltage U(F)

1.20 V

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Tue 3 Nov

36 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1.45635 / piece)

€ 1.46

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Diode bridge

Our service for you

Technical specifications

Type wire-leadCasing: KBPC6Periodic Peak Reverse Voltage - VRRM 50 VContinuous current - IFAV 6.00 AJunction temperature - Tjmax 150 °CReverse delay time - trr: NsSurge current - IFSM 110.00 AForward voltage - VF 1.20 VIF 3.00 AReverse current - IR 5,000 µAVR 50 VLock layer capacity - CJ: PFVR V

Type: KBPC600

Product type: Diode bridge

Enclosure: KBPC6

Manufacturer: Diotec

Manuf. code: DIO

U(RRM): 50 V

Forward current I(F): 3 A

Forward voltage U(F): 1.20 V

Forward voltage reference: 3.00 A

I(FSM) 50Hz: 110 A

I(FSM) 60Hz: 110.00 A

Reverse leakage current I(r): 5 µA

Reverse leakage current I(r) reference: 50 V

Operating temperature (max.): 150 °C

Mounting type: Through-hole mounting

RoHS-compliant: Yes

Variants(All information include VAT, plus shipping costs)

Forward current I(F)

U(RRM)

Forward voltage U(F)

Mounting type

Enclosure

Diotec KBPC10/15/2500WP Diode bridge KBPC 50 V 25 A

Item no:2809829

Fast track dispatch on Tue 3 Nov

188 Piece(s)Conrad Electronic

25 A

50 V

1.20 V

Through-hole mounting

KBPC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 3.16843^*

Diotec KBPC10/15/2501WP Diode bridge KBPC 100 V 25 A

Item no:2809830

Dispatches on Thu 5 Nov

150 Piece(s)Conrad Electronic

25 A

100 V

1.20 V

Through-hole mounting

KBPC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 2.44005^*

Diotec KBPC10/15/2504WP Diode bridge KBPC 400 V 25 A

Item no:2809831

Dispatches on Thu 5 Nov

30 Piece(s)Conrad Electronic

25 A

400 V

1.20 V

Through-hole mounting

KBPC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 2.44005^*

Diotec KBPC10/15/2508WP Diode bridge KBPC 800 V 25 A

Item no:2809833

Dispatches on Thu 5 Nov

20 Piece(s)Conrad Electronic

25 A

800 V

1.20 V

Through-hole mounting

KBPC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 2.44005^*

Diotec KBPC10/15/2510FP Diode bridge KBPC 1000 V 25 A

Item no:2809834

Fast track dispatch on Tue 3 Nov

27 Piece(s)Conrad Electronic

25 A

1000 V

1.20 V

Fast-on

KBPC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 3.37316^*

Diotec KBPC10/15/2510WP Diode bridge KBPC 1000 V 25 A

Item no:2809835

Fast track dispatch on Tue 3 Nov

269 Piece(s)Conrad Electronic

25 A

1000 V

1.20 V

Through-hole mounting

KBPC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 3.16843^*

Diotec KBPC10/15/2512WP Diode bridge KBPC 1200 V 25 A

Item no:2809837

Dispatches on Thu 5 Nov

150 Piece(s)Conrad Electronic

25 A

1200 V

1.20 V

Through-hole mounting

KBPC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 2.56604^*

Diotec KBPC10/15/2514FP Diode bridge KBPC 1400 V 25 A

Item no:2809838

Dispatches on Thu 5 Nov

190 Piece(s)Conrad Electronic

25 A

1400 V

1.20 V

Fast-on

KBPC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 2.56948^*

Diotec KBPC10/15/2514WP Diode bridge KBPC 1400 V 25 A 1-phase

Item no:2809839

Dispatches on Thu 10 Dec

Conrad Electronic

25 A

1400 V

1.20 V

Through-hole mounting

KBPC

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 2.56604^*

Diotec KBPC10/15/2516FP Diode bridge KBPC 1600 V 25 A

Item no:2809840

Fast track dispatch on Tue 3 Nov

162 Piece(s)Conrad Electronic

25 A

1600 V

1.20 V

Fast-on

KBPC

Piece(s)

Minimum order quantity: 240

Multiple: 1

€ 3.62076^*

Documents & Downloads

Datasheet

Datasheet 2809868 Diotec KBPC600 Diode bridge KBPC6 50 V 3 A

User & Safety Instructions

User & Safety Instructions 2809868 Diotec KBPC600 Diode bridge KBPC6 50 V 3 A

Description

Rectifiers from leading manufacturers. Full details free to download from our comprehensive product documents library.

Description

Rectifiers from leading manufacturers. Full details free to download from our comprehensive product documents library.
