Name: Diotec KBPC804 Diode bridge KBPC8-PB10 400 V 4 A
Brand: Diotec
SKU: 2809877
Availability: InStock

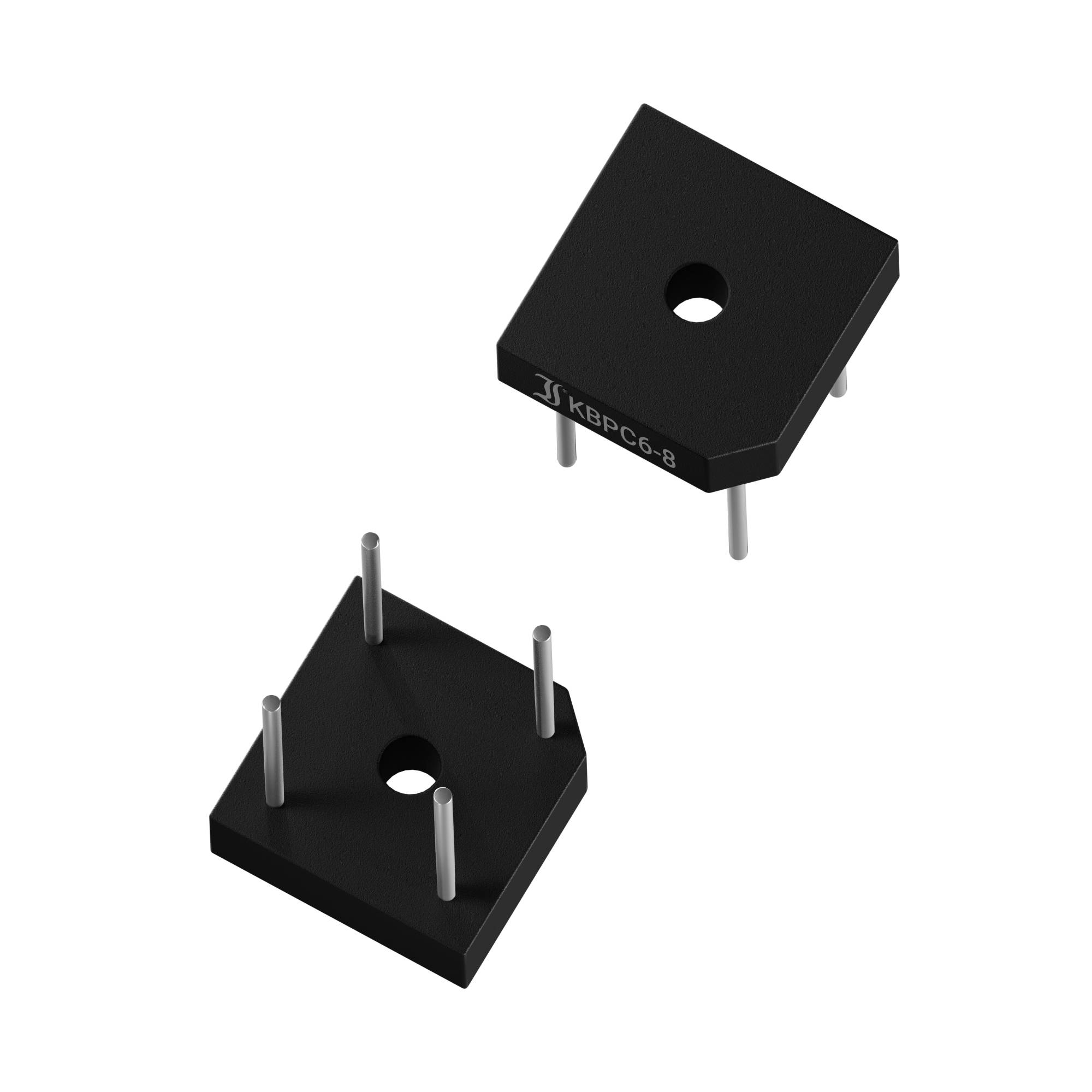

Two black rectifier bridges, each with four pins.

Image similar

Product type

Diode bridge

Enclosure

KBPC8-PB10

U(RRM)

400 V

Forward current I(F)

4 A

Forward voltage U(F)

1.20 V

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 5 Nov

326 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 20

Total (€ 1.15391 / piece)

€ 1.15

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type wire-leadHousing KBPC8-PB10Periodic Peak Reverse Voltage - VRRM 400 VContinuous current - IFAV 8.00 AJunction temperature - Tjmax 150 °CReverse delay time - trr: NsSurge current - IFSM 135.00 AForward voltage - VF 1.20 VIF 4.00 AReverse current - IR 5,000 µAVR 400 VLock layer capacity - CJ: PFVR V

Type: KBPC804

Product type: Diode bridge

Enclosure: KBPC8-PB10

Manufacturer: Diotec

Manuf. code: DIO

U(RRM): 400 V

Forward current I(F): 4 A

Forward voltage U(F): 1.20 V

Forward voltage reference: 4.00 A

I(FSM) 50Hz: 135 A

Reverse leakage current I(r): 5 µA

Reverse leakage current I(r) reference: 400 V

Operating temperature (max.): 150 °C

Mounting type: Through-hole mounting

RoHS-compliant: Yes

UKCA: yes
