Name: Diotec LDI1117-05H Voltage regulator - linear SOT 223 1 A
Brand: Diotec
SKU: 2809882
Availability: SoldOut

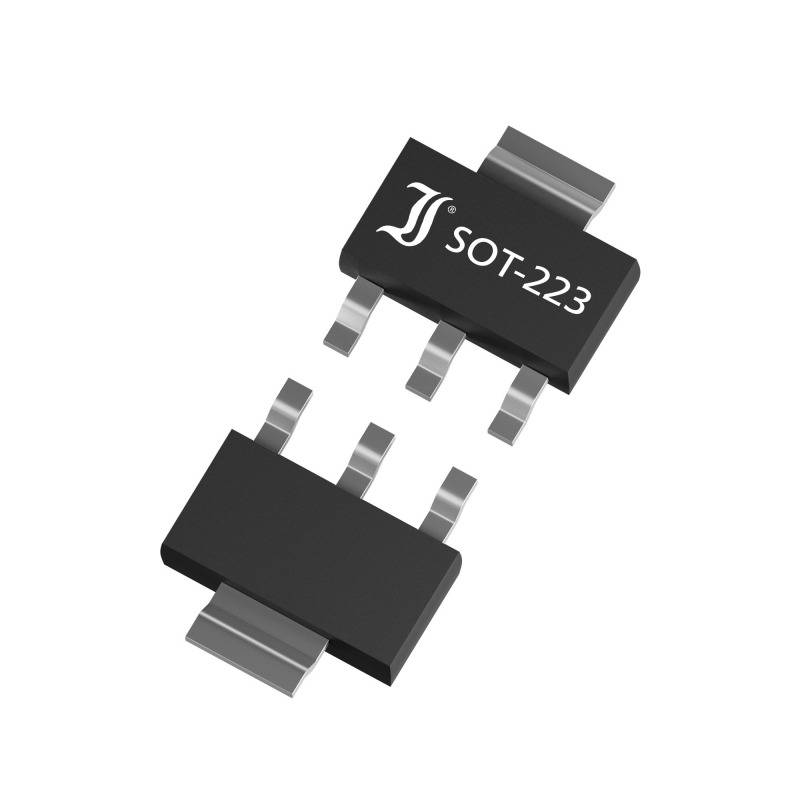

Semiconductor component with three terminals, surface-marked with 'SOT-223', a typical package for transistors or voltage regulators.

Image similar

Product type

Voltage regulator - linear

Enclosure

SOT 223

Output voltage (min.)

4.95 V

Power output

1 A

Mounting type

Surface-mount

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 0.06 / piece)

€ 151.40

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type SMDSOT-223 housingInput Voltage - Vin 20 VOutput voltage - VOUTmin 4,950 VVOUTmax 5,050 VJunction temperature - Tjmax 125 °CQuiescent current - IQ 5,000 mADropout voltage - VD 1.00 VOutput current IO 1.00 A

Type: LDI1117-05H

Product type: Voltage regulator - linear

Enclosure: SOT 223

Manufacturer: Diotec

Manuf. code: DIO

Input voltage (max.): 20 V

Output voltage (min.): 4.95 V

Power output: 1 A

Topology: LDO (1)

Output voltage (max.): 550 V

Drop-out voltage U(d): 1 V

Operating temperature (max.): 125 °C

Mounting type: Surface-mount

RoHS-compliant: Yes

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Enclosure

Output voltage (min.)

Diotec LDI1117-05H Voltage regulator - linear SOT 223 1 A

Item no:2809882

Unavailable

Conrad Electronic

This article

SOT 223

4.95 V

Piece(s)

Minimum order quantity: 2500

Multiple: 2500

€ 0.06056^*
