Name: Diotec LDI1117-1.5H Voltage regulator - linear SOT 223 1 A
Brand: Diotec
SKU: 2809888
Availability: InStock

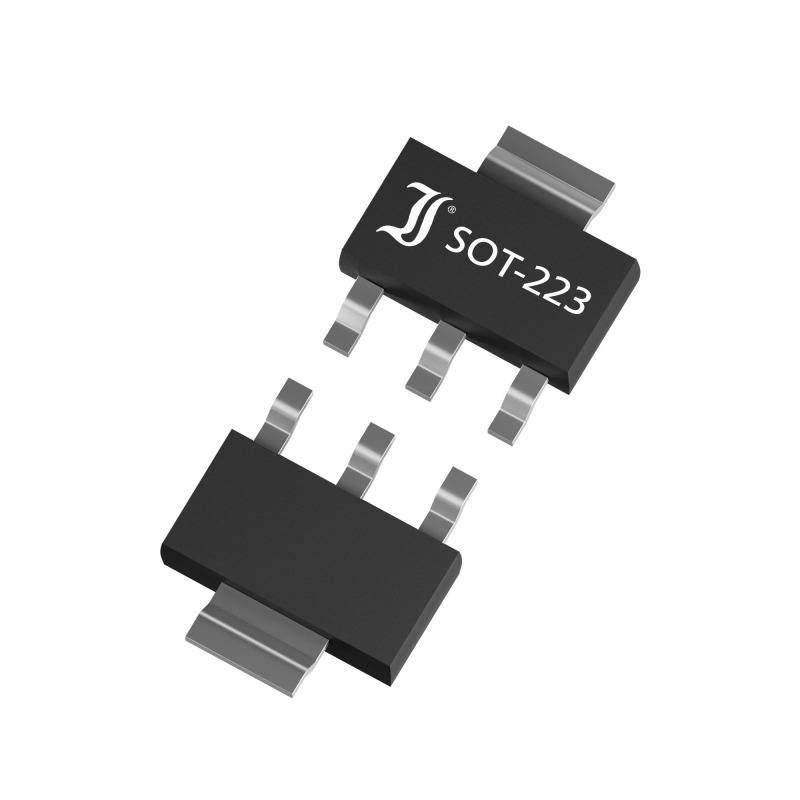

A black SOT-223 semiconductor with connection contacts and the inscription 'SOT-223' in white text on the surface.

Image similar

Product type

Voltage regulator - linear

Enclosure

SOT 223

Output voltage (min.)

1.485 V

Power output

1 A

Mounting type

Surface-mount

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

2380 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 0.05 / piece)

€ 0.05

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type SMDSOT-223 housingInput Voltage - Vin 20 VOutput voltage - VOUTmin 1,485 VVOUTmax 1,515 VJunction temperature - Tjmax 125 °CQuiescent current - IQ 5,000 mADropout voltage - VD 1.00 VOutput current IO 1.00 A

Type: LDI1117-1.5H

Product type: Voltage regulator - linear

Enclosure: SOT 223

Manufacturer: Diotec

Manuf. code: DIO

Input voltage (max.): 20 V

Output voltage (min.): 1.485 V

Power output: 1 A

Output voltage (max.): 1.515 V

Drop-out voltage U(d): 1 V

Operating temperature (max.): 125 °C

Mounting type: Surface-mount

RoHS-compliant: Yes

UKCA: yes
