Name: Diotec Rectifier GL1MR13 DO 213AA 1000 V 1 A
Brand: Diotec
SKU: 2807820
Availability: BackOrder

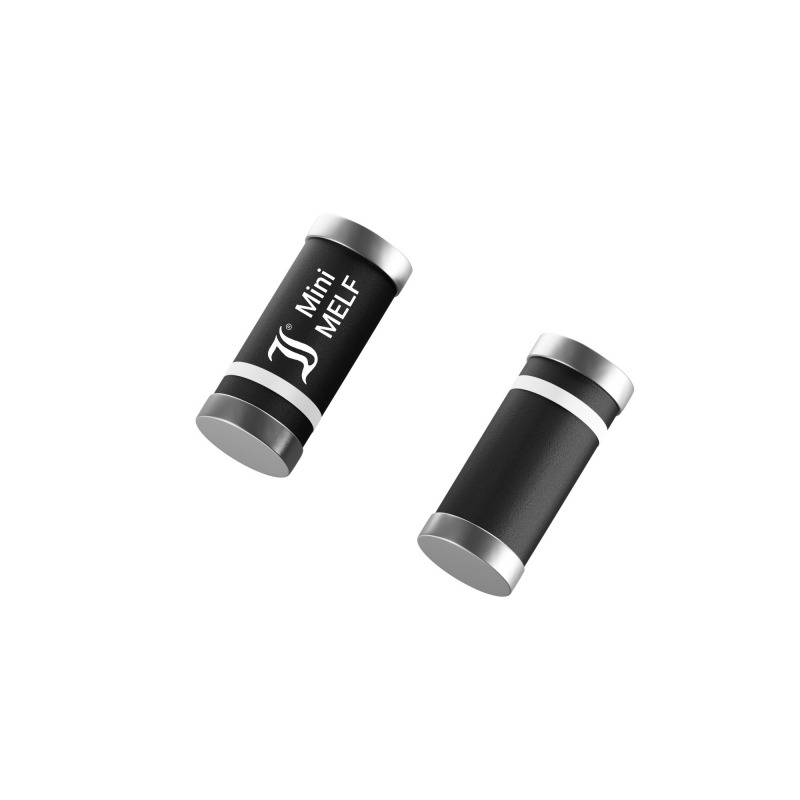

Two cylindrical, electronic components with a black surface and silver caps, labelled 'Mini MELF'.

Image similar

Product type

Rectifier

Enclosure

DO 213AA

Forward current I(F)

1 A

Reverse voltage U(R)

1000 V

Forward voltage U(F)

1.30 V

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 750

Total (€ 0.05523 / piece)

€ 0.06

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Rectifier

Our service for you

Technical specifications

Type SMDHousing DO-213AA/MiniMelfPeriodic Peak Reverse Voltage - VRRM 1000 VContinuous current - IFAV 1.00 AJunction temperature - Tjmax 175 °CForward voltage - VF 1.30 VIF 1.00 ASurge current - IFSM 27.00 AReverse current - IR 5,000 µAVR 1000 VLock layer capacity - CJ: PFVR V

Type: GL1MR13

Product type: Rectifier

Enclosure: DO 213AA

Manufacturer: Diotec

Forward current I(F): 1 A

Reverse voltage U(R): 1000 V

Forward voltage U(F): 1.30 V

Reverse leakage current I(r): 5 µA

Operating temperature (max.): 175 °C

Mounting type: Surface-mount

I(FSM) 50Hz: 27 A

RoHS-compliant: Yes
