Buy Diotec Rectifier RAL1J DO 213AA 600 V 1 A | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

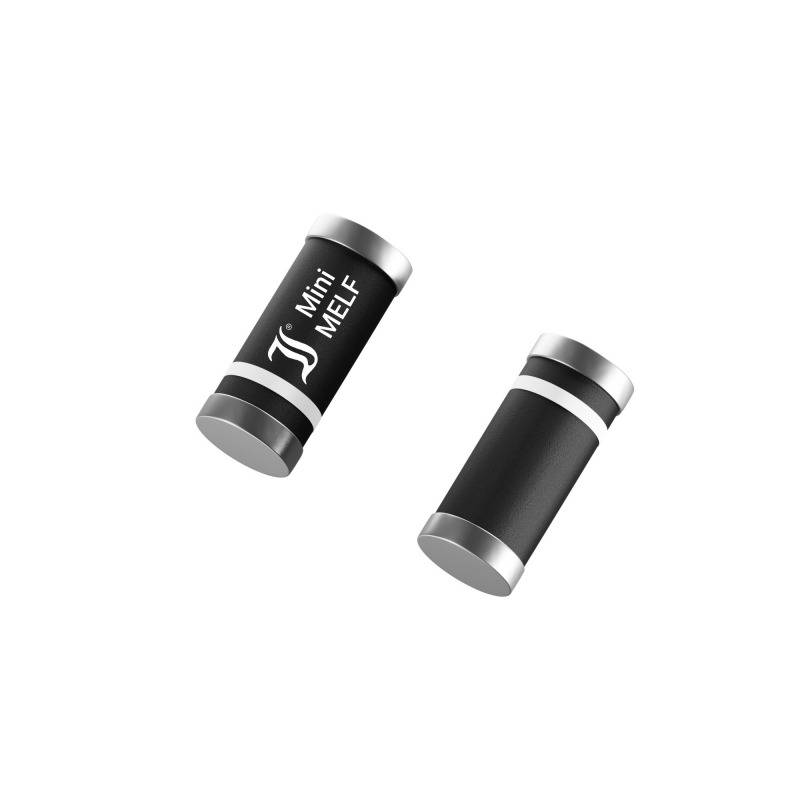

Two black cylindrical electronic components with the inscription 'Mini MELF', designed for resistance applications.

Two black cylindrical electronic components with the inscription 'Mini MELF', designed for resistance applications.

Image similar

Diotec

Product type

Rectifier

Enclosure

DO 213AA

Forward current I(F)

1 A

Reverse voltage U(R)

600 V

Forward voltage U(F)

1.30 V

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 2 Nov

2500 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 300

Total (€ 0.08143 / piece)

€ 24.43

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Rectifier

Our service for you

Technical specifications

Type SMDHousing DO-213AA/MiniMelfPeriodic Peak Reverse Voltage - VRRM 600 VContinuous current - IFAV 1.00 AJunction temperature - Tjmax 175 °CReverse delay time - trr: 250 nsSurge current - IFSM 22.00 AForward voltage - VF 1.30 VIF 1.00 AReverse current - IR 3,000 µAVR 600 VLock layer capacity - CJ: PFVR V

Type: RAL1J

Product type: Rectifier

Enclosure: DO 213AA

Manufacturer: Diotec

Forward current I(F): 1 A

Reverse voltage U(R): 600 V

Forward voltage U(F): 1.30 V

Reverse leakage current I(r): 3 µA

Operating temperature (max.): 175 °C

Mounting type: Surface-mount

I(FSM) 50Hz: 22 A

Reverse recovery time T(rr): 250 ns

RoHS-compliant: Yes

Documents & Downloads

Datasheet

Datasheet 2808693 Diotec Rectifier RAL1J DO 213AA 600 V 1 A

User & Safety Instructions

User & Safety Instructions 2808693 Diotec Rectifier RAL1J DO 213AA 600 V 1 A
