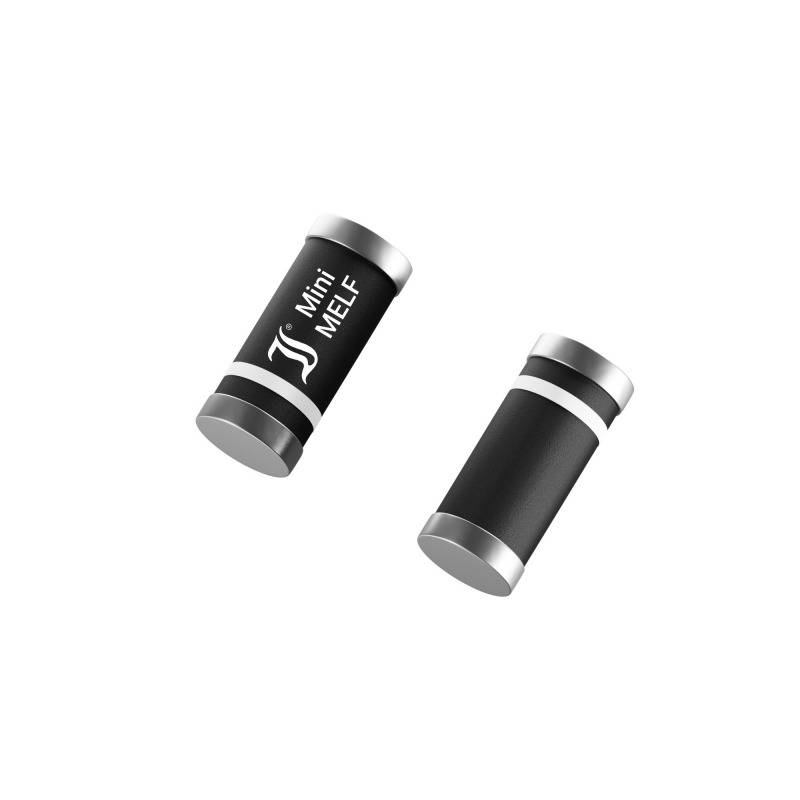

Two cylindrical electronic components with 'Mini MELF' inscription, black with silver end caps, on a white background.

Two cylindrical electronic components with 'Mini MELF' inscription, black with silver end caps, on a white background.

Image similar

Diotec

Product type

Rectifier

Enclosure

DO 213AA

Forward current I(F)

1 A

Reverse voltage U(R)

1000 V

Forward voltage U(F)

1.30 V

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 250

Total (€ 0.08933 / piece)

€ 22.33

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Rectifier

Our service for you

Technical specifications

Type SMDHousing DO-213AA/MiniMelfPeriodic Peak Reverse Voltage - VRRM 1000 VContinuous current - IFAV 1.00 AJunction temperature - Tjmax 175 °CReverse delay time - trr: 500 nsSurge current - IFSM 22.00 AForward voltage - VF 1.30 VIF 1.00 AReverse current - IR 5,000 µAVR 1000 VLock layer capacity - CJ: PFVR V

Type: RGL1MR13

Product type: Rectifier

Enclosure: DO 213AA

Manufacturer: Diotec

Forward current I(F): 1 A

Reverse voltage U(R): 1000 V

Forward voltage U(F): 1.30 V

Reverse leakage current I(r): 5 µA

Operating temperature (max.): 175 °C

Mounting type: Surface-mount

I(FSM) 50Hz: 22 A

Reverse recovery time T(rr): 500 ns

RoHS-compliant: Yes

Documents & Downloads

Datasheet

Datasheet 2808702 Diotec Rectifier RGL1MR13 DO 213AA 1000 V 1 A

User & Safety Instructions

User & Safety Instructions 2808702 Diotec Rectifier RGL1MR13 DO 213AA 1000 V 1 A
