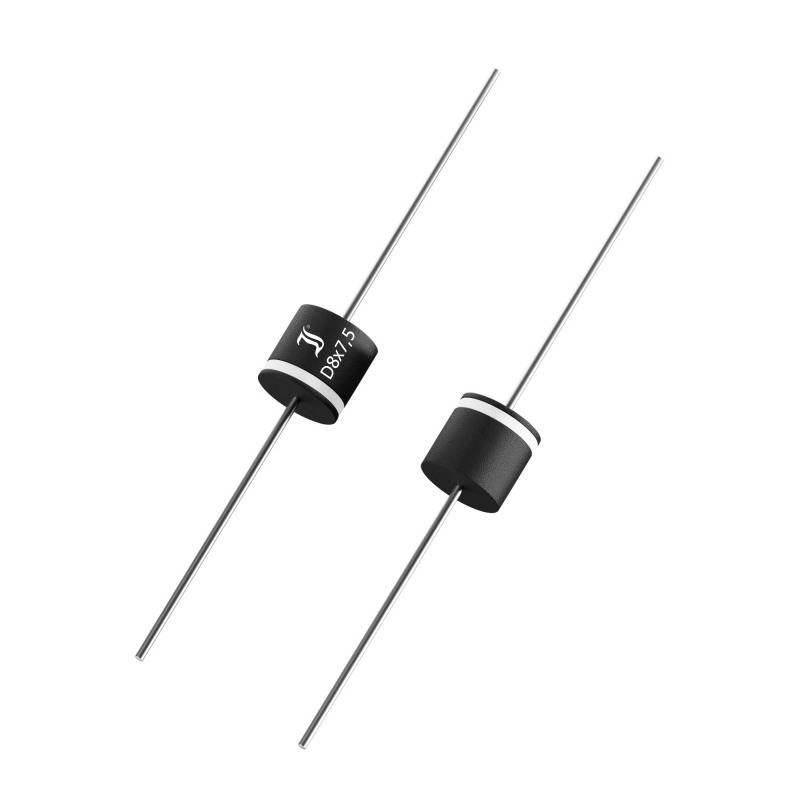

Two electronic diodes with black bodies and long metal connections. They are used for rectifying electrical currents.

Two electronic diodes with black bodies and long metal connections. They are used for rectifying electrical currents.

Image similar

Diotec

Product type

Rectifier

Enclosure

D8x7.5

Forward current I(F)

5 A

Reverse voltage U(R)

1000 V

Forward voltage U(F)

1.70 V

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Mon 9 Nov

2421 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 10

Total (€ 0.3516 / piece)

€ 0.35

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type AxialHousing: D8x7.5Periodic Peak Reverse Voltage - VRRM 1000 VContinuous current - IFAV 6.00 AJunction temperature - Tjmax 175 °CReverse delay time - trr: 100 nsSurge current - IFSM 270.00 AForward voltage - VF 1.70 VIF 5.00 AReverse current - IR 10,000 µAVR 1000 VLock layer capacity - CJ: PFVR V

Type: UF600M

Product type: Rectifier

Enclosure: D8x7.5

Manufacturer: Diotec

Forward current I(F): 5 A

Reverse voltage U(R): 1000 V

Forward voltage U(F): 1.70 V

Reverse leakage current I(r): 10 µA

Operating temperature (max.): 175 °C

Mounting type: Through-hole mounting

I(FSM) 50Hz: 270 A

Reverse recovery time T(rr): 100 ns

RoHS-compliant: Yes

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2808853 Diotec Rectifier UF600M D8x7.5 1000 V 5 A

User & Safety Instructions

User & Safety Instructions 2808853 Diotec Rectifier UF600M D8x7.5 1000 V 5 A
