Name: Drive System Europe by MSW Linear actuator DSAK4-24-100-500-IP54 10070185 Stroke length 500 mm Thrust 100 N 24 V DC 1 pc
Brand: Drive System Europe by MSW
SKU: 191828
Availability: InStock

Cylindrical, silver-coloured metal shock absorber with a black end, suitable for mechanical or industrial applications.

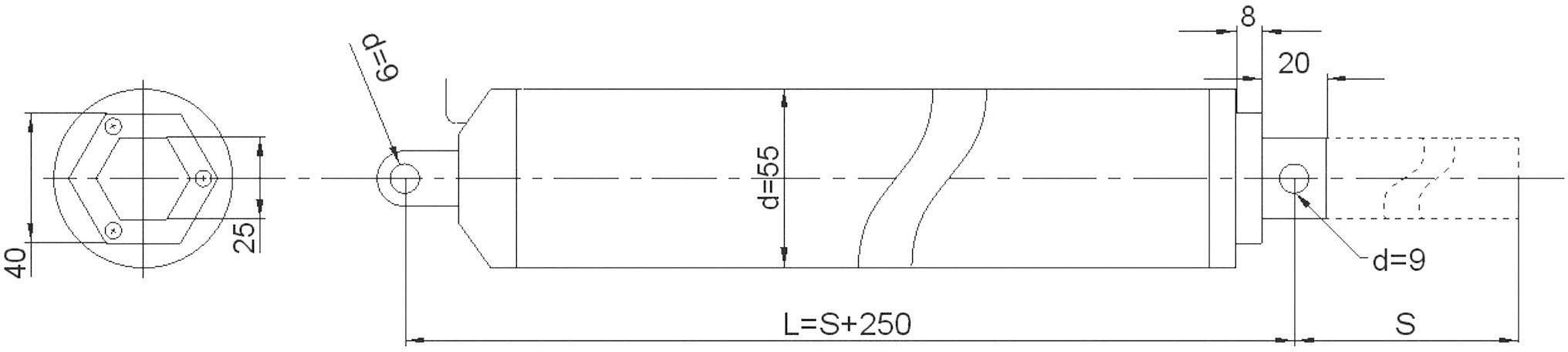

Technical drawing of a cylindrical component with detailed dimensions. Length: L=S+250, Diameter: d=55, Ends: d=9.

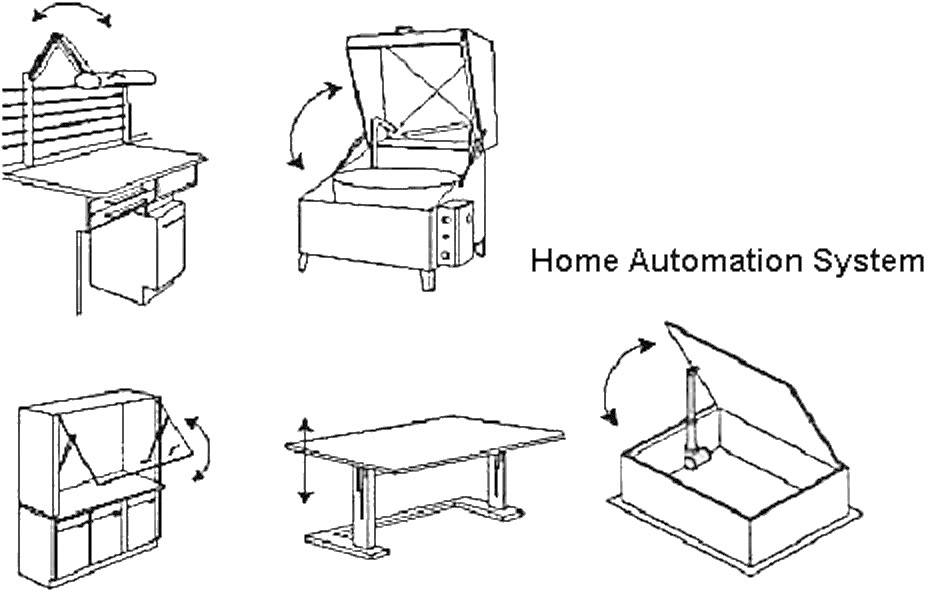

Sketch of five automated furniture pieces with arrows indicating movements. On the right, it reads 'Home Automation System'.

1/3

Product type

Linear actuator

Stroke length

500 mm

Nominal current - rounded value

4.5 A

Speed (max.)

140 mm/s

Nominal voltage

24 V DC

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 224.99 / piece)

€ 270.00

-17 %

€ 224.99

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

DC-electric cylinder DSAK 4

Very quiet
High speed
Integrated end switch

Technical specifications

Static Holding force: up to 400 N
Switch-on duration: up to 20% (e.g. 2 minutes of operating under full load, within 10 minutes)

Product type: Linear actuator

Nominal current: 4.5 A

Stroke length: 500 mm

Nominal current - rounded value: 4.5 A

Speed (max.): 140 mm/s

Nominal voltage: 24 V DC

Thrust: 100 N

Manufacturer part #: 10070185

Type: DSAK4-24-100-500-IP54

Operating temperature: -26 °C (min)

Min. operating temperature: -26 °C

Holding force: 400 N

Thrust power: 100 N

: IP54

Max. temperature: +65 °C

Min. temperature: -26 °C

Max. ambient temperature: +65 °C

Min. ambient temperature: -26 °C

Variants(All information include VAT, plus shipping costs)

Nominal current - rounded value

Nominal voltage

Speed (max.)

Stroke length

Thrust

Drive System Europe by MSW Linear actuator DSAK4-24-100-500-IP54 10070185 Stroke length 500 mm Thrust 100 N 24 V DC 1 pc(s)

Item no:191828

Fast track dispatch on Thu 29 Oct

2 Piece(s)Conrad Electronic

This article

4.5 A

24 V DC

140 mm/s

500 mm

100 N

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 224.99^*

Drive System Europe by MSW Linear actuator DSAK4-12-100-300-IP54 10070183 Stroke length 300 mm Thrust 100 N 12 V DC 1 pc(s)

Item no:191759

Fast track dispatch on Thu 29 Oct

5 Piece(s)Conrad Electronic

9.4 A

12 V DC

140 mm/s

300 mm

100 N

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 214.99^*

Drive System Europe by MSW Linear actuator DSAK4-12-200-300-IP54 10070190 Stroke length 300 mm Thrust 200 N 12 V DC 1 pc(s)

Item no:191788

Fast track dispatch on Thu 29 Oct

2 Piece(s)Conrad Electronic

9.4 A

12 V DC

45 mm/s

300 mm

200 N

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 179.99^*

Drive System Europe by MSW Linear actuator DSAK4-24-100-300-IP54 10070186 Stroke length 300 mm Thrust 100 N 24 V DC 1 pc(s)

Item no:191814

Fast track dispatch on Thu 29 Oct

3 Piece(s)Conrad Electronic

4.5 A

24 V DC

140 mm/s

300 mm

100 N

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 214.99^*

Drive System Europe by MSW Linear actuator DSAK4-24-200-300-IP54 10070187 Stroke length 300 mm Thrust 200 N 24 V DC 1 pc(s)

Item no:191844

Fast track dispatch on Thu 29 Oct

5 Piece(s)Conrad Electronic

4.5 A

24 V DC

45 mm/s

300 mm

200 N

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 214.99^*

Drive System Europe by MSW Linear actuator DSAK4-24-200-500-IP54 10070188 Stroke length 500 mm Thrust 200 N 24 V DC 1 pc(s)

Item no:191858

Available soon

Conrad Electronic

4.5 A

24 V DC

45 mm/s

500 mm

200 N

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 224.99^*

Drive System Europe by MSW Linear actuator DSAK4-12-100-500-IP54 10070184 Stroke length 500 mm Thrust 100 N 12 V DC 1 pc(s)

Item no:191773

Unavailable

Conrad Electronic

9.4 A

12 V DC

140 mm/s

500 mm

100 N

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 214.99^*

Drive System Europe by MSW Linear actuator DSAK4-12-200-500-IP54 10070189 Stroke length 500 mm Thrust 200 N 12 V DC 1 pc(s)

Item no:191801

Unavailable

Conrad Electronic

9.4 A

12 V DC

45 mm/s

500 mm

200 N

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 224.99^*

Documents & Downloads

Datasheet

Datasheet 191828 Drive System Europe by MSW Linear actuator DSAK4-24-100-500-IP54 10070185 Stroke length 500 mm Thrust 100 N 24 V DC 1 pc

User & Safety Instructions

User & Safety Instructions 191828 Drive System Europe by MSW Linear actuator DSAK4-24-100-500-IP54 10070185 Stroke length 500 mm Thrust 100 N 24 V DC 1 pc

Conformity certificate

Conformity certificate 191828 Drive System Europe by MSW Linear actuator DSAK4-24-100-500-IP54 10070185 Stroke length 500 mm Thrust 100 N 24 V DC 1 pc

Description

Tube cylinder with trapezoidal threaded spindle and built-in planetary gear with 12 or 24 V/DC electric motor. By special smoothness is also very good for office or apartment, and the large temperature range from -26 to +65 °C can, however, also in outdoor applications. The integrated limit switches stop the movement in the respective end positions and thus also protect against mechanical damage. Through an integrated diode circuit, a fast direction reversal by simple voltage reversal of the DC-motor.

This text is machine translated.
