Name: E+E Elektronik 310183 TEE501 Temperature sensor -40 up to 135 °C
Brand: E+E Elektronik
SKU: 2587947
Availability: InStock

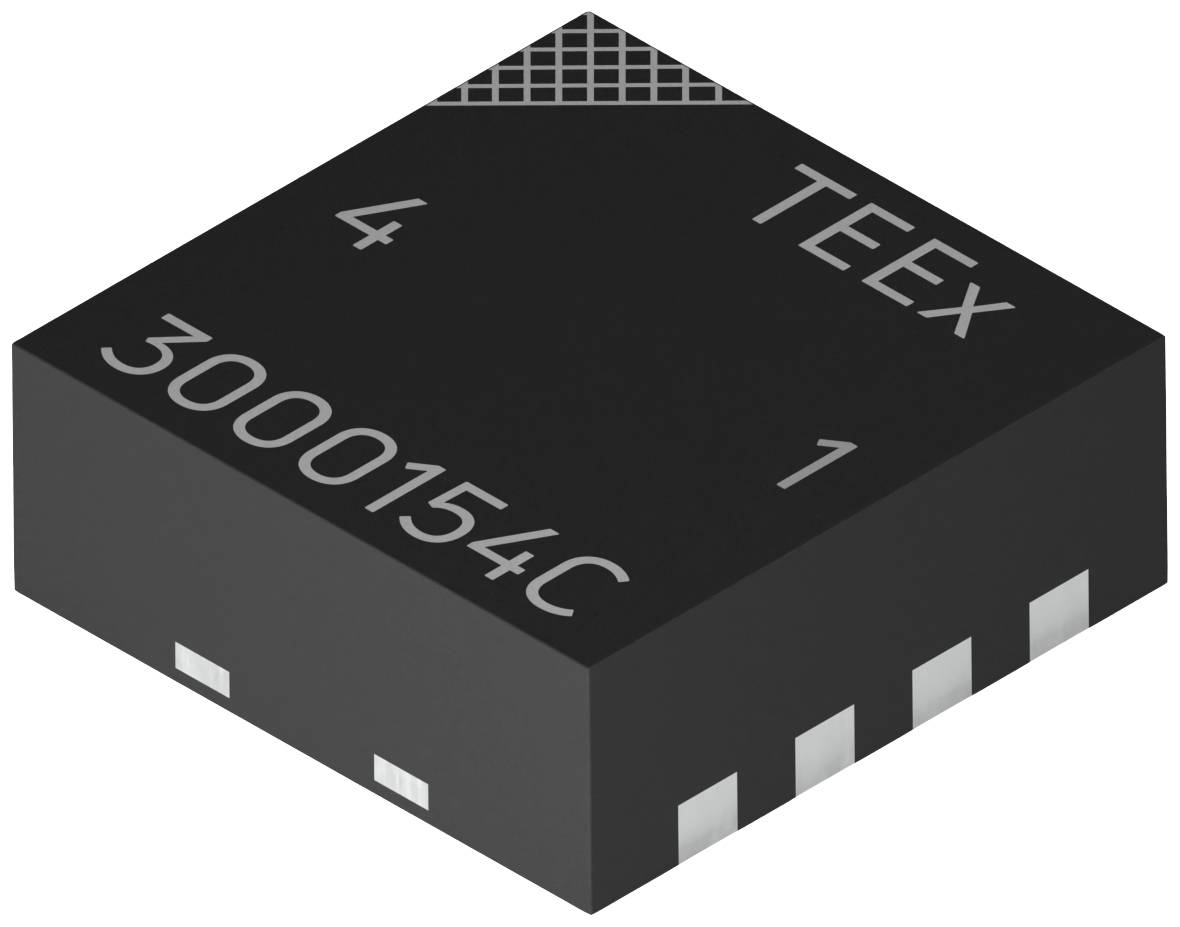

Black microchip with white markings: 'TEEX', '4', '1', '3000154C'. The image shows a top view with three visible metal contacts.

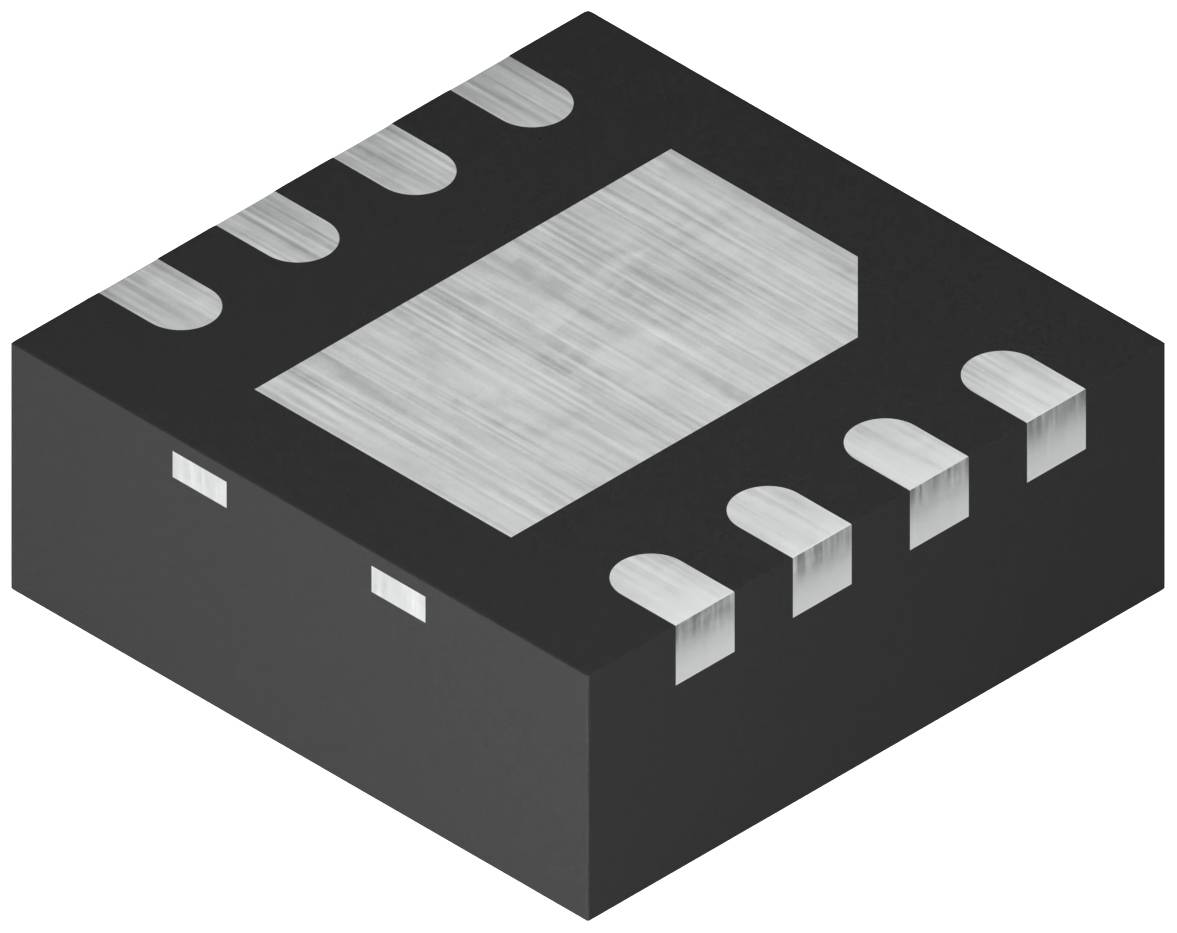

A black, square microchip with multiple connections on its sides shows the connection points for electronic interfaces.

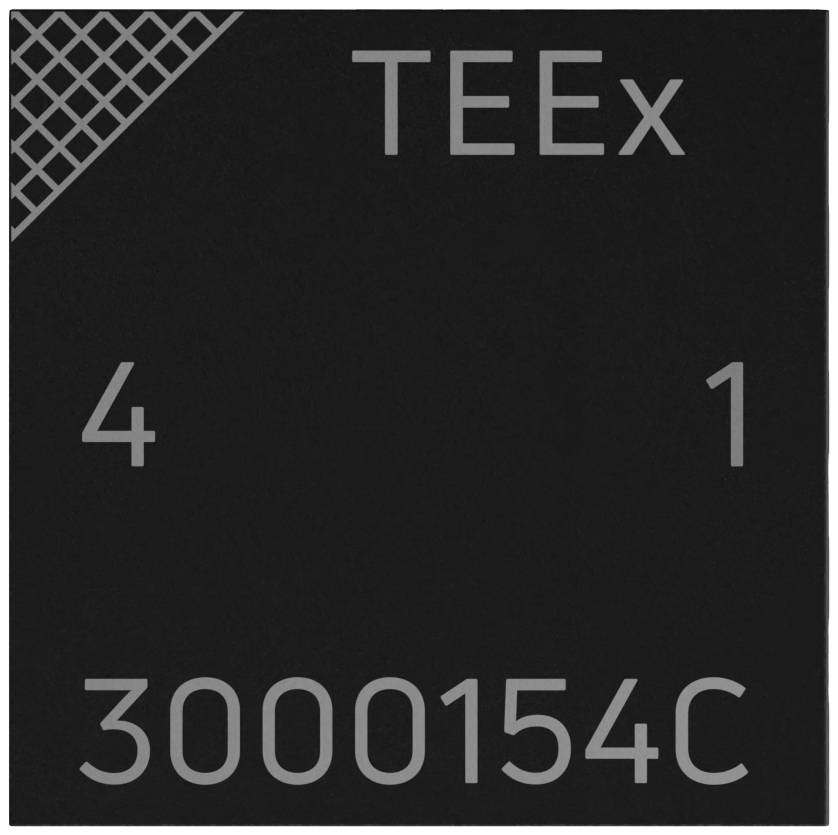

Black chip with the inscription 'TEEx', numbers '4' and '1', and the number '3000154C' on it.

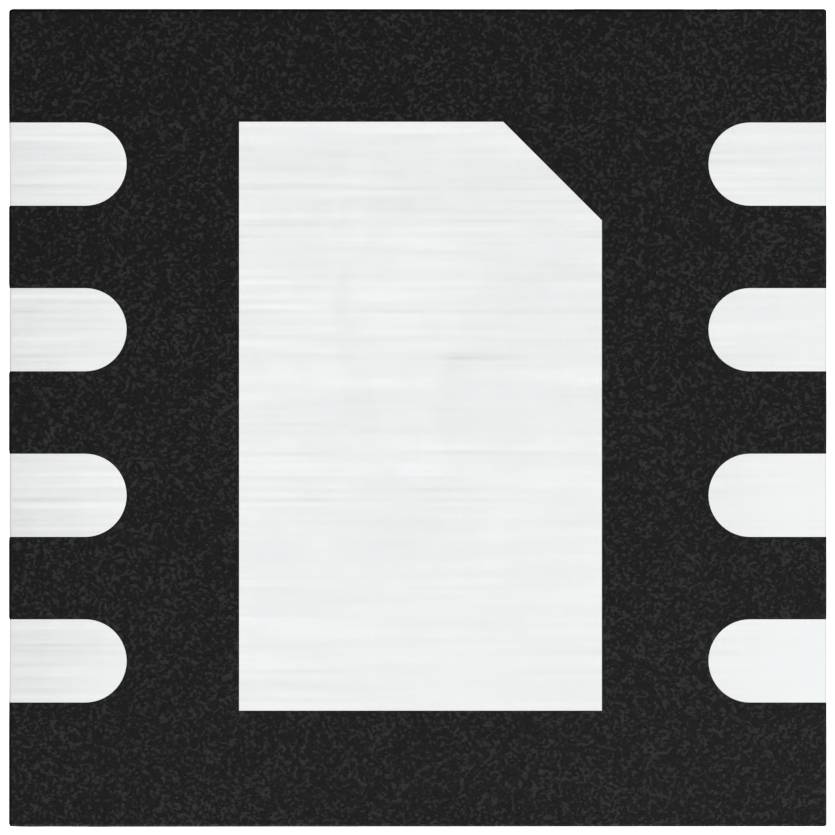

A stylised icon of a computer hard drive or chip, depicted in black and white with a rectangular central element.

1/4

Product type

Temperature sensor

Temperature reading range (max.)

135 °C

Type

TEE501

Temperature reading range (min.)

-40 °C

Temperature reading range

-40 up to 135 °C

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

65 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 4.79 / piece)

€ 14.99

-68 %

€ 4.79

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

E+E Electronics TEE501 highly accurate digital temperature sensor element

Excellent measuring accuracyI²C Interface with direct measured value output as 16 bit integerIntegrated I²C pull-up resistorExcellent repeatability8-pin DFN PackageI²C Interference suppressionI²C Interface with pin selectable addresses

Technical specifications

MEASUREMENT RANGE: -40...135 °C.ACCURACY: Up to ± 0.2 °C.DIGITAL INTERFACE: I²CSUPPLY: 2.35 - 3.6 V

Product type: Temperature sensor

Type: TEE501

Temperature reading range (min.): -40 °C

Temperature reading range (max.): 135 °C

Temperature reading range: -40 up to 135 °C

Documents & Downloads

Datasheet

Datasheet 2587947 E+E Elektronik 310183 TEE501 Temperature sensor -40 up to 135 °C

Description

Highly accurate and versatileThe sensor element is suitable for temperature measurement in a working range from -40 °C to 135 °C. The factory-set multi-point temperature adjustment ensures excellent measuring accuracy of up to ± 0.2 °C. The excellent measurement performance and excellent reproducibility make the sensor element the optimum solution for demanding measuring tasks.Easy to integrate DFN packageThe small dual-flat-no-leads (DFN) housing has a base area of only 2.5 x 2.5 mm2 and can therefore be used in almost any application. The integrated pull-up resistors make the design-in even easier. For operation, the sensor element requires a supply voltage of 2.35 – 3.60 V.Data communication via I²C interface interfaceThe I²C interface ensures trouble-free data communication with the TEE501 and supports communication speeds of 100 / 400 / 1000 kHz. The measured values are output in 16-bit integer format and can be processed directly.Robust I2C interface communication is ensured by a CRC checksum and interference suppression.Individually adjustable I²C addresses enable up to 8 sensor elements to be operated on a I²C bus.Typical applications- Building automation- Consumer electronics- Household appliances- Industrial automation- Medical equipment- smart home- Wearables- White goods
