Name: Eaton 170124 EU5C-SWD-PROFINET Gateway 24 V DC 1 pc(s)
Brand: Eaton
SKU: 2306841
Availability: BackOrder

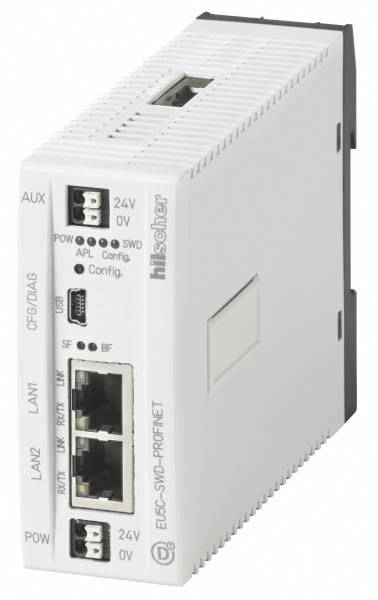

A white industrial communication module with multiple ports and LED indicators for system monitoring and configuration.

Image similar

Datasheet (PDF)

Dispatches on Fri 27 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 519.00 / piece)

€ 519.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Explosion protection category for gas: None
Explosion protection category for dust: None
Fieldbus connection via separate bus coupler possible: No.
Front installation possible: No.
Bluetooth wireless standard: No.
Radio standard GPRS: No.
GSM radio standard: No.
UMTS radio standard: No.
WLAN 802.11 wireless standard: No.
Suitable for safety functions: Yes
Height: 90
IO-Link master: No.
With potential separation: No.
Performance level according to EN ISO 13849-1: None
Rack mounting possible: No.
Protection class (IP): IP20
SIL according to IEC 61508: None
Voltage type of supply voltage: DC
System component: Yes
Depth: 127
Rail mounting possible: Yes
Supply voltage at DC 20.4
Wall/direct mounting possible: Yes
Associated equipment (Ex ia): No.
Associated equipment (Ex ib): No.

Product type: Gateway

Type: EU5C-SWD-PROFINET

Operating voltage: 24 V DC

Max. operating temperature: +55 °C

Min. operating temperature: -25 °C

Operating temperature: -25 up to +55 °C

Dim: (W x H) 35 mm x 90 mm

Max. current consumption: 3 A

Height: 90 mm

Width: 35 mm

Manufacturer part #: 170124

Interfaces: PROFINET

Current consumption: 0.7 A

: 35 mm

: 90 mm

: 127 mm

: TRUE

: DC

: FALSE

: 0

: 0

: 0

: 0

: 0

: 1

: 0

: 0

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: TRUE

: None

: None

: FALSE

: TRUE

: FALSE

: FALSE

: IP20

: FALSE

: FALSE

: 2

: 0

: FALSE

: FALSE

: TRUE

: FALSE

: FALSE

: FALSE

: None

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: TRUE

: FALSE

: FALSE

: 0-0 V

: 0-0 V

: 20.4-28.8 V

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: None

: 0

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2306841 Eaton 170124 EU5C-SWD-PROFINET Gateway 24 V DC 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2306841 Eaton 170124 EU5C-SWD-PROFINET Gateway 24 V DC 1 pc(s)

Description

For connection to the PROFINET fieldbus as a PROFINET IO device

Connection of the SmartWire-DT communication system to industrial fieldbus systems. Supply of SWD nodes and switching devices

SmartWire-DT gateway for connecting up to 99 SmartWire-DT nodes to Industrial Ethernet and for supplying the SWD nodes and switching devices.
The connection to PROFINET as a PROFINET I/O device is made via the integrated 100 MBit Ethernet switch as slave.
The gateway has a separate USB diagnostics interface (mini USB).

This text is machine translated.
