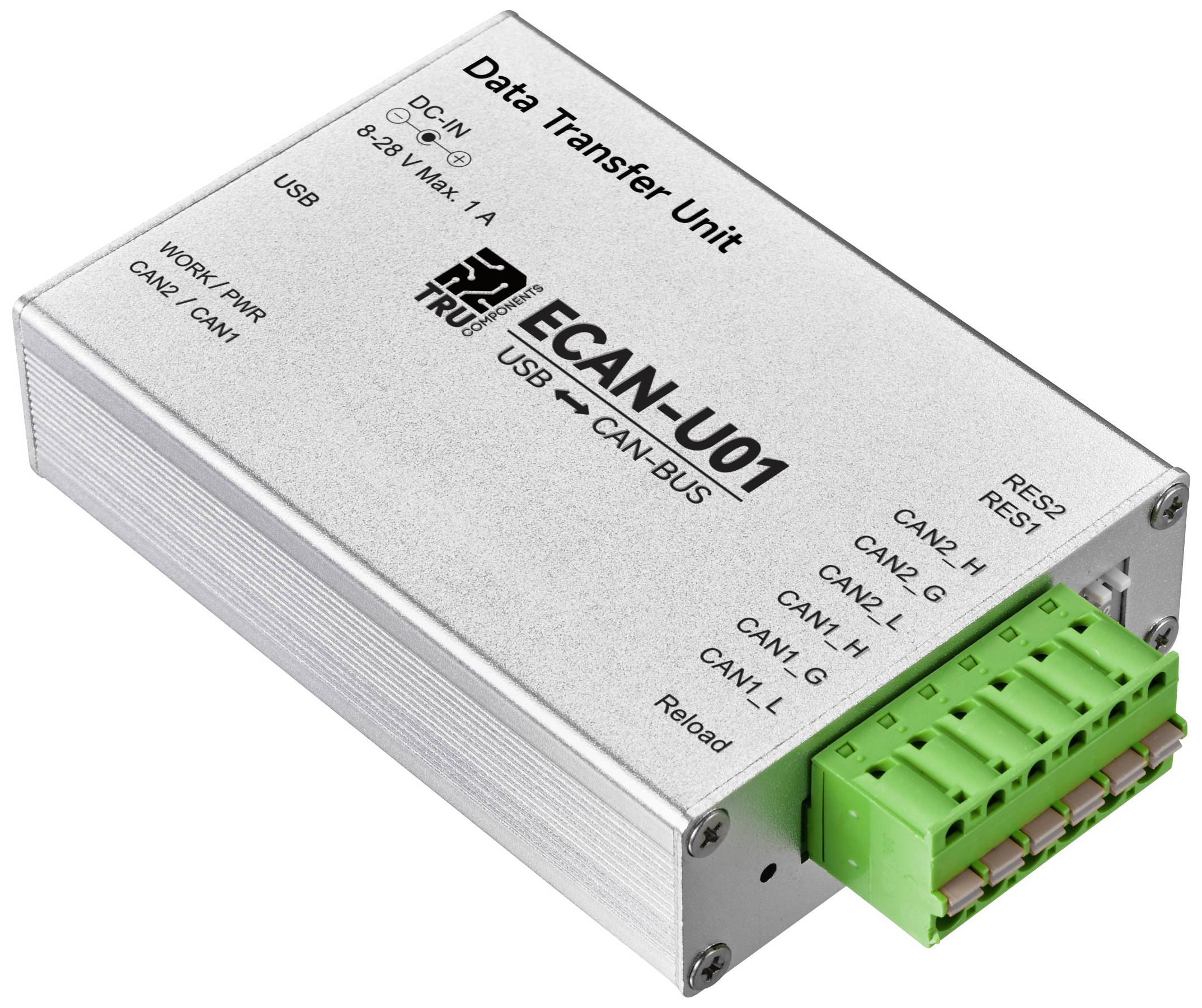

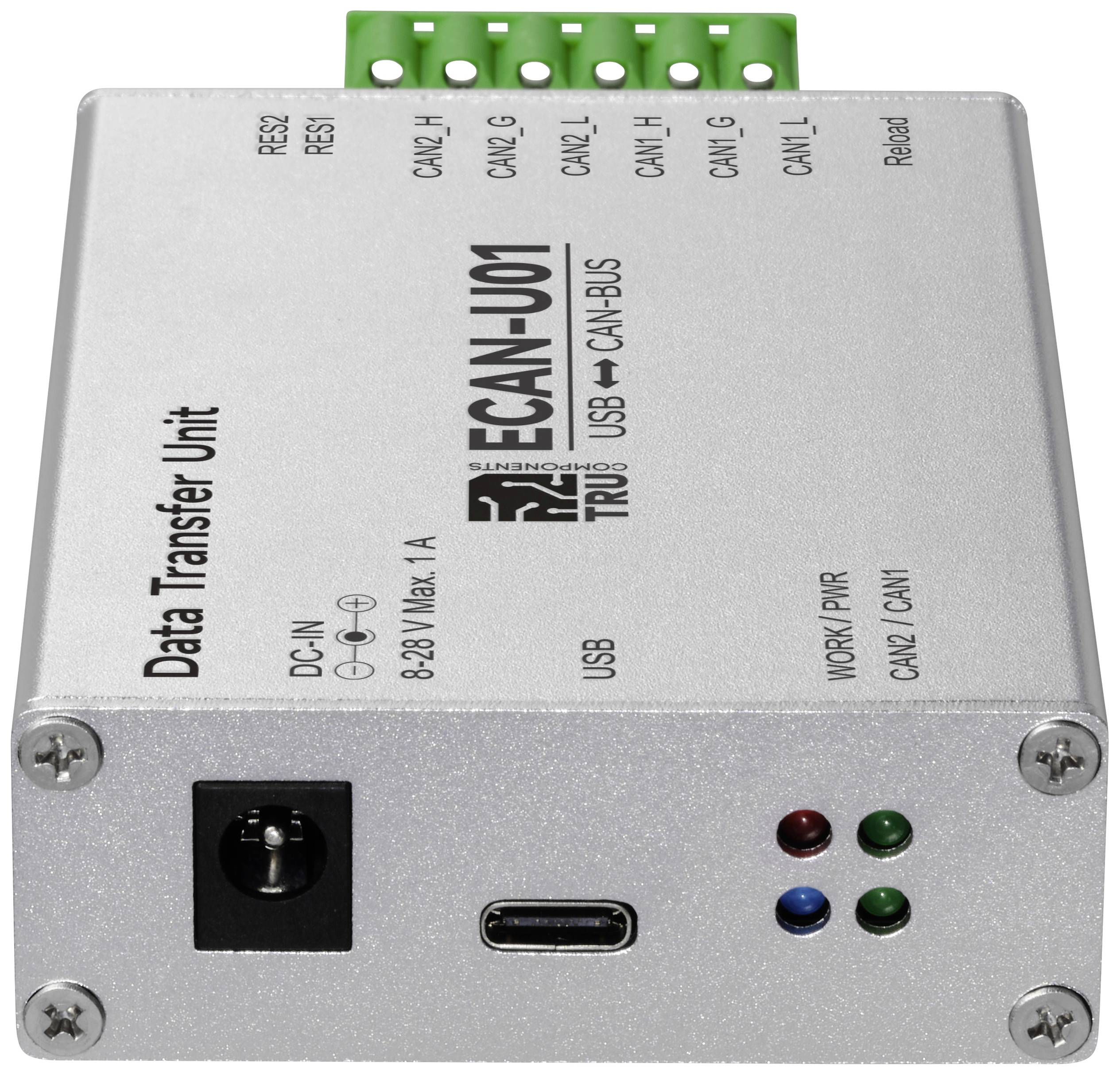

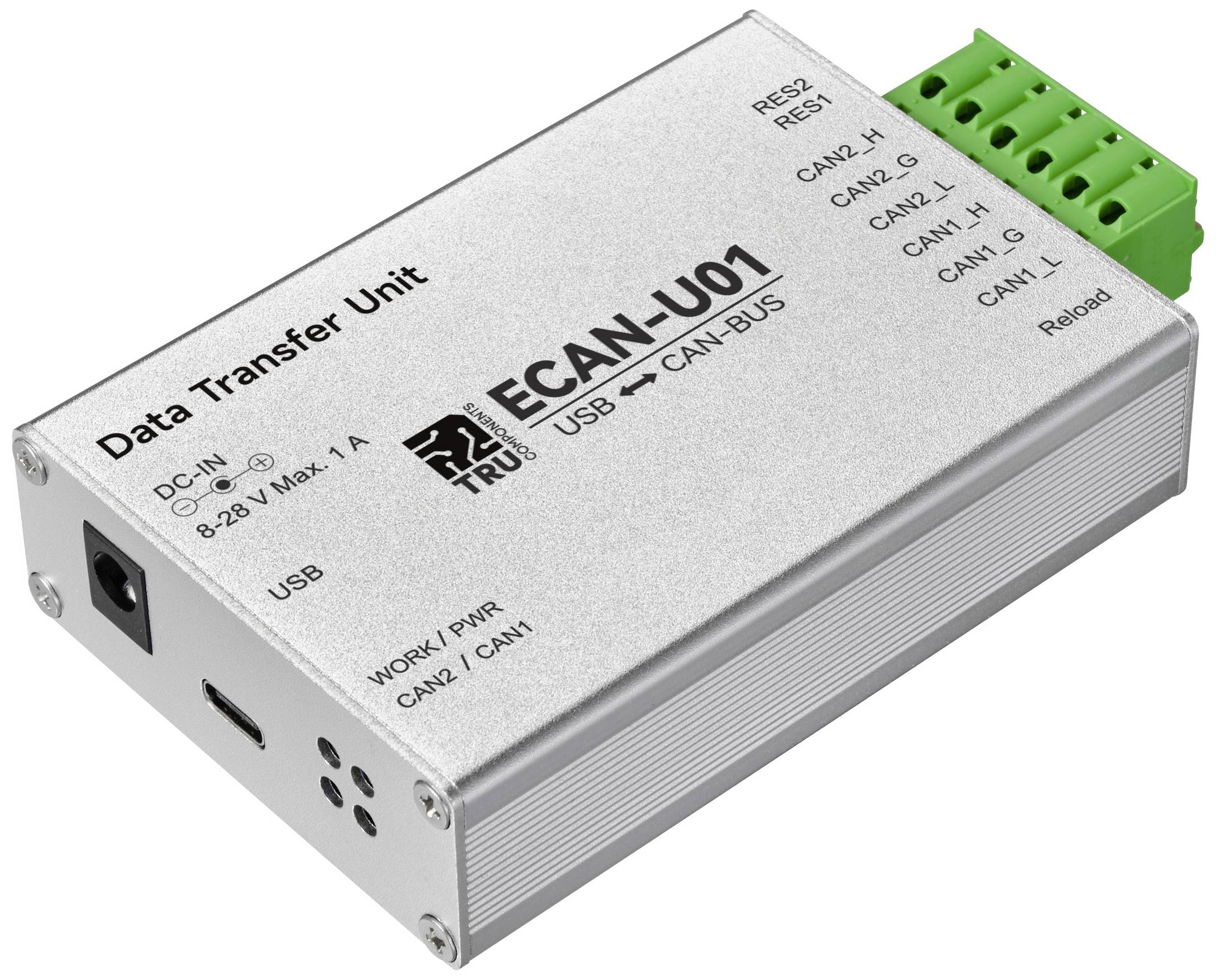

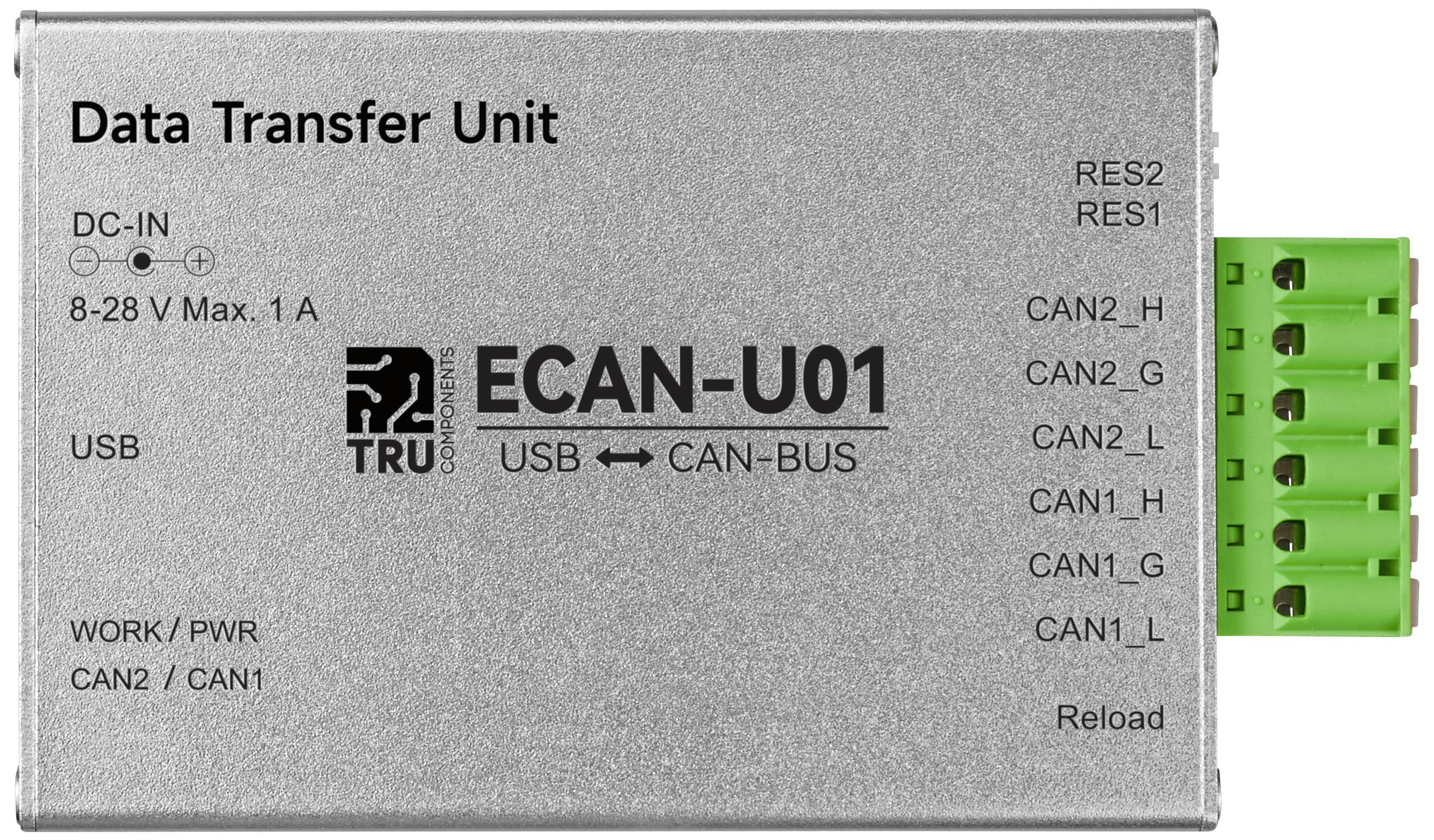

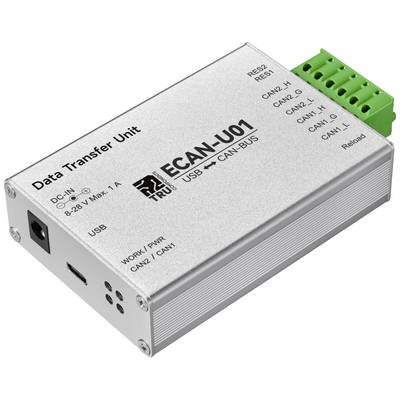

TRU COMPONENTS TC-ECAN-U01 CAN bus USB, CAN bus 5 V DC 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 41.17 / piece)
€ 41.17
plus VAT.
Highlights & Details
Isolated (galvanically isolated) converter with 2 x CAN and 1 x USB-C®
- USB-C® interface
- Plug-in terminal block
- PC interface conforms to the USB 2.0 full-speed specification and is compatible with USB 1.1
- 2-way CAN-bus interface with plug-in terminal wiring method
- CAN 2.0 A and CAN 2.0 B frame format, conforms to ISO/DIS 11898 specification
- The baud rate of CAN-bus communication is freely programmable between 5 Kbps - 1 Mbps
- Uses USB bus power supply or external power supply (8 - 28 V DC)
- Received data flow: 17000 fps
- The time stamp accuracy of the received message at the CAN end can reach 1 us
- Isolation voltage: 5000 V/DC
Technical specifications
- Product type
CAN bus
- Interfaces
USB
CAN bus
- Type
TC-ECAN-U01
- Operating voltage
5 V DC
- Max. operating temperature
85 °C
- Min. operating temperature
-40 °C
- Operating voltage
8 V DC
28 V DC
- Operating temperature
-40 up to 85 °C
- Dim
(W x H) 64 mm x 102 mm
- Height
102 mm
- Width
64 mm
- Manufacturer part #
TC-12626060
- Type
CAN converter
- Interfaces
2 CAN interface
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3156515 TRU COMPONENTS TC-ECAN-U01 CAN bus USB, CAN bus 5 V DC 1 pc(s)
Download
Download 3156515 TRU COMPONENTS TC-ECAN-U01 CAN bus USB, CAN bus 5 V DC 1 pc(s)
Description
Features

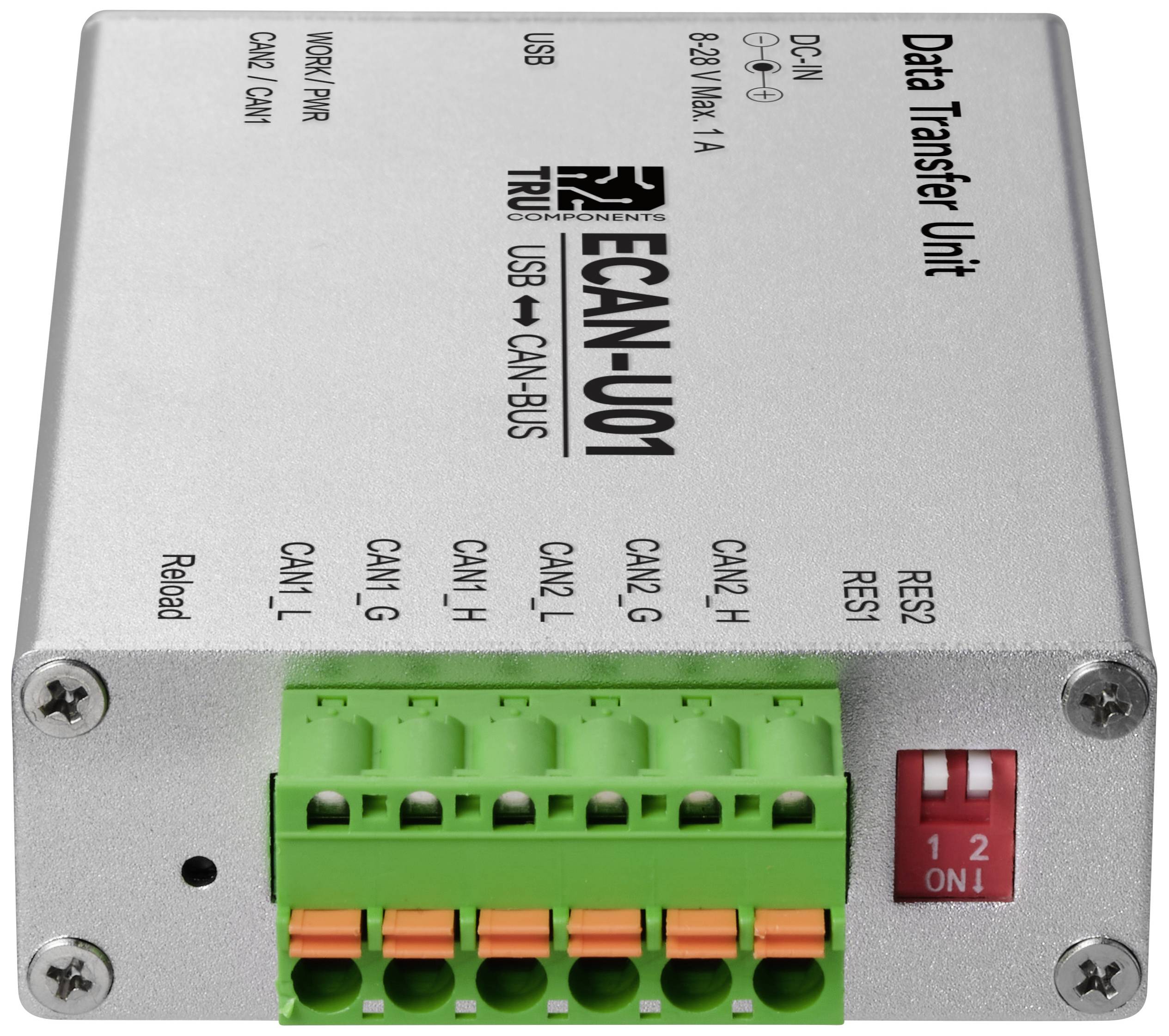

- Built-in 120Ω matching resistor
- Supports data filtering by time, channel, frame ID, etc.
Scope of delivery
- Converter
