Name: EWON EC7133J_00MA EC7133J_00MA Remote maintenance router Wi-Fi, USB, Ethernet No. of inputs: 2 x No. of outputs: 1 x 12
Brand: EWON
SKU: 2735097
Availability: InStock

A blue electronic device with an antenna and multiple ports, most likely a communication module for industrial applications.

Industrial device with a black antenna, multiple Ethernet ports and green status LEDs. Used for wireless network connection.

An industrial router in a blue enclosure with multiple Ethernet ports and an antenna on the top surface.

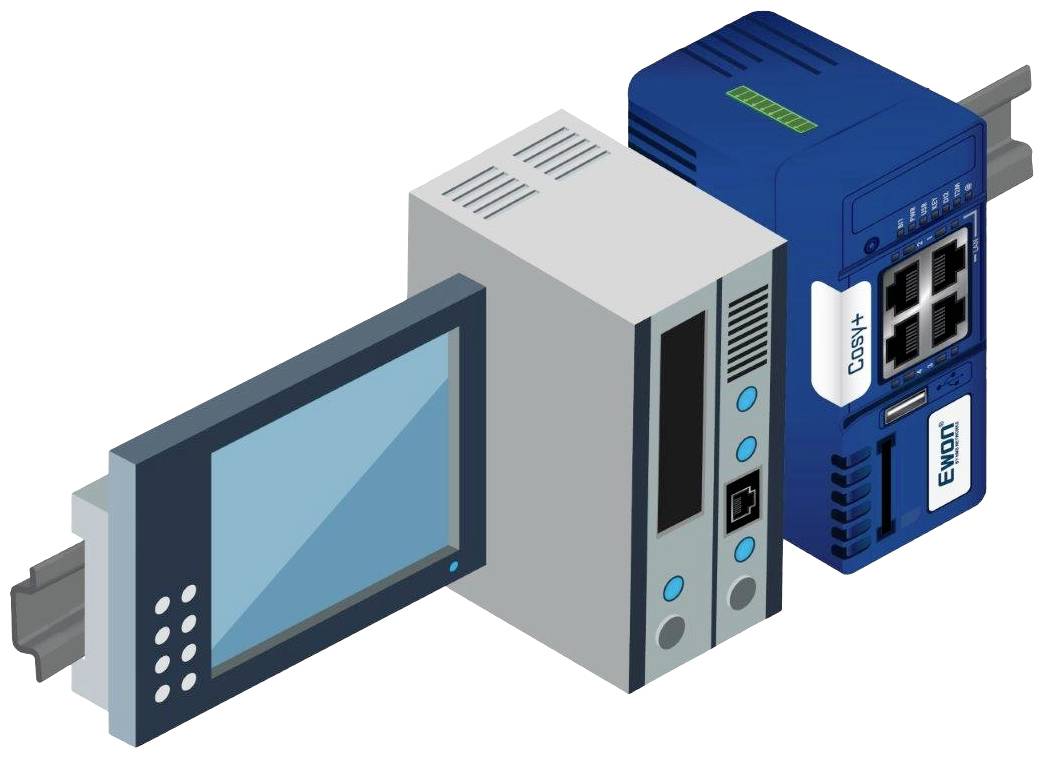

Industrial Electronics: Touchscreen panel on the left, central control unit in the middle, and a module with network connections on the right.

1/4

Datasheet (PDF)

Fast track dispatch on Tue 27 Oct

14 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 815.00 / piece)

€ 815.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Temperature range:Operating: -25°C to +60°C, 10 to 95% relative humidity (non-condensing)Storage: -30°C to +70°C, 10 to 95% relative humidity (non-condensing)

Product type: Remote maintenance router

Interfaces: Wi-Fi
USB
Ethernet

Type: EC7133J_00MA

Operating voltage: 12 V DC
24 V DC

Max. operating temperature: 60 °C

Min. operating temperature: -25 °C

Operating voltage: 12-24 VDC +/-20% LPS

Operating temperature: -25 up to 60 °C

No. of inputs: 2 x

No. of outputs: 1 x

Dim: (W x H) 43.60 mm x 108.80 mm

Max. current consumption: 450 mA

Height: 108.80 mm

Width: 43.60 mm

Manufacturer part #: EC7133J_00MA

Outputs: 1xDO: Open drain (MOSFET) 200mA; insulation 1.5kV

Inputs: 0 to 24 V DC; 1.5 kV insulation

Interfaces: WAN Ethernet: Up to 3 ports, 10/100 MB EthernetLAN Ethernet: Up to 4 ports, 10/100 MB EthernetField interface: Up to 10 USB 2.0 connections, female connector 2.0

Current consumption: 175 mA

UKCA: yes

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 2735097 EWON EC7133J_00MA EC7133J_00MA Remote maintenance router Wi-Fi, USB, Ethernet No. of inputs: 2 x No. of outputs: 1 x 12

User & Safety Instructions

User & Safety Instructions 2735097 EWON EC7133J_00MA EC7133J_00MA Remote maintenance router Wi-Fi, USB, Ethernet No. of inputs: 2 x No. of outputs: 1 x 12

Description

The EWON Cozy+ is an industrial VPN gateway which establishes a secure VPN connection between the machine (PLC, HMI or other equipment) and the remote maintenance engineer. The connection is via Talk2M, a highly secure industrial cloud service. Extensive IT knowledge is not required for the use of Cosy+.

This text is machine translated.

Features

Easy setup so a machine can be IIoT ready in just a few minutesNon-intrusive outbound connections - no change to existing network requiredHardware root-of-trust provides security for the hardware KernSecure element, the perfect place to store important secretsCertificate of origin to prevent cloning and counterfeitingProven Security Status:ISO 27001 certified and Cybersecurity partnership with NVISOSolution is based on the latest standard technologies.Manage connectivity from all your machines and employees from one placeWith only 2 clicks access to your attachments - no matter where these are present
