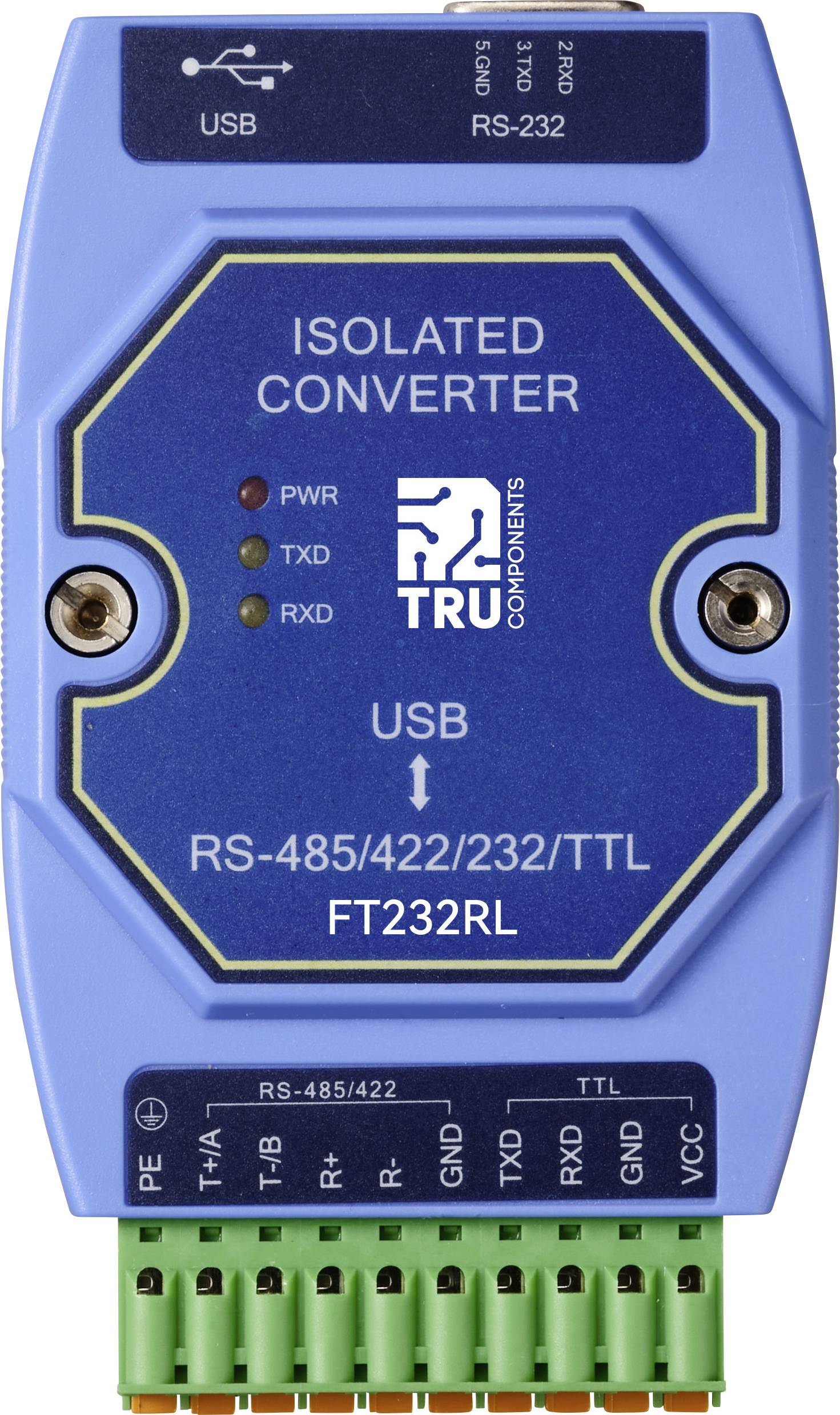

'Blue USB isolation converter with RS-485/422/232/TTL ports. Displays status LEDs for power, TXD and RXD.'

'Blue USB isolation converter with RS-485/422/232/TTL ports. Displays status LEDs for power, TXD and RXD.'

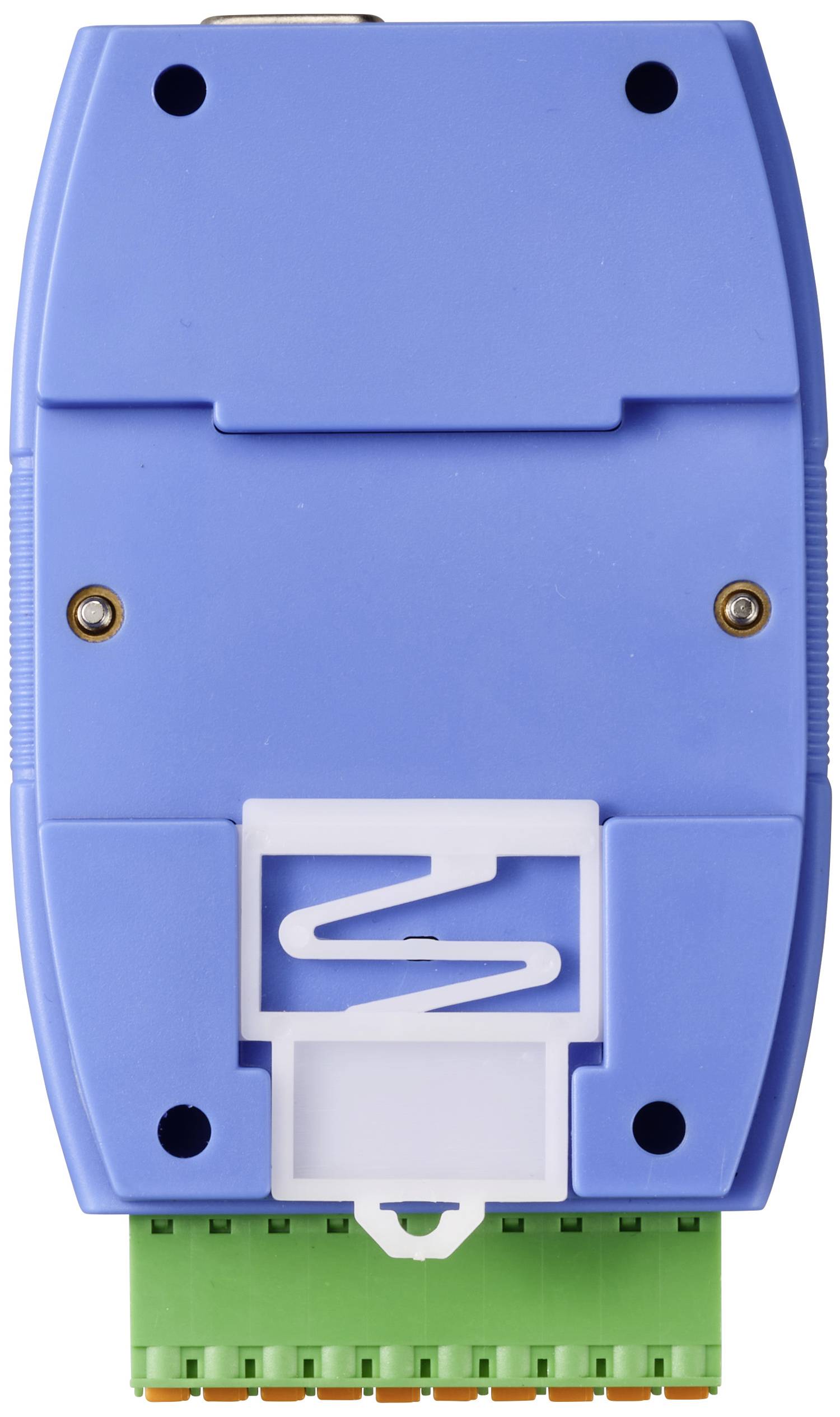

Blue electronic device with a green connector strip and multiple screw holes. Possibly an industrial sensor or converter.

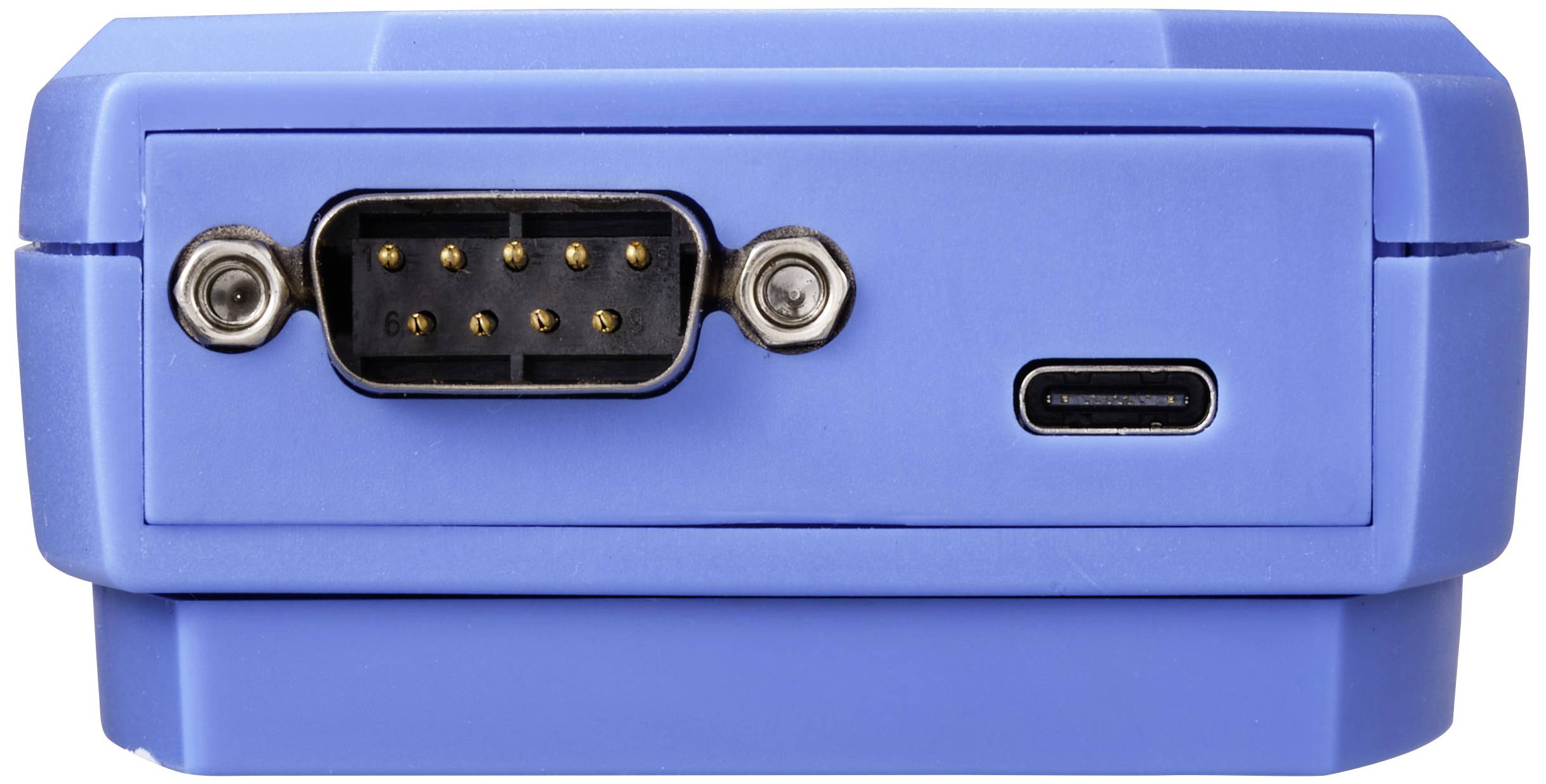

A blue electronic device with a 9-pin serial port and a USB-C port at the back.

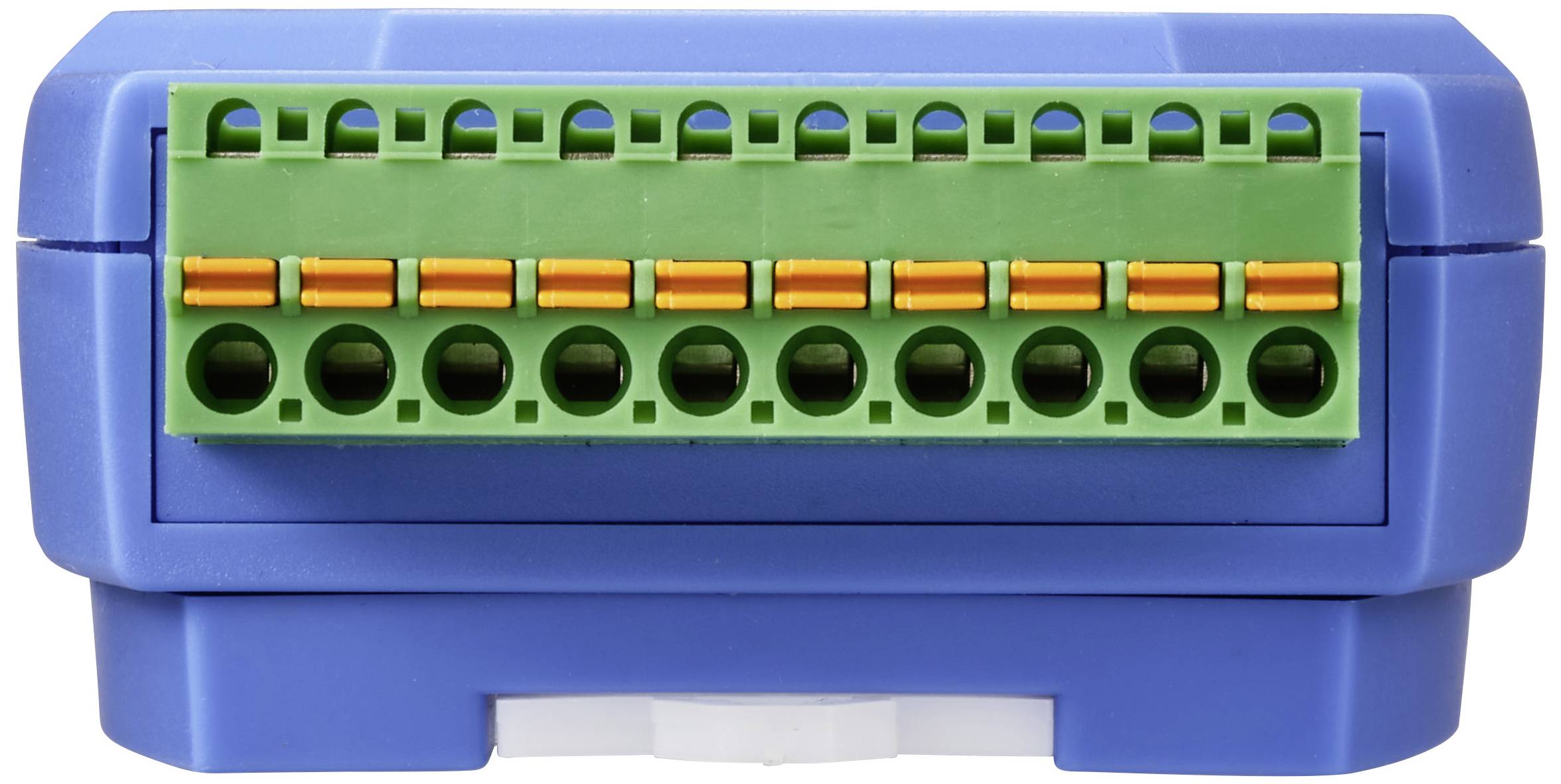

An electrical junction box with a blue casing and green connectors. The yellow terminals indicate where wires are to be connected.

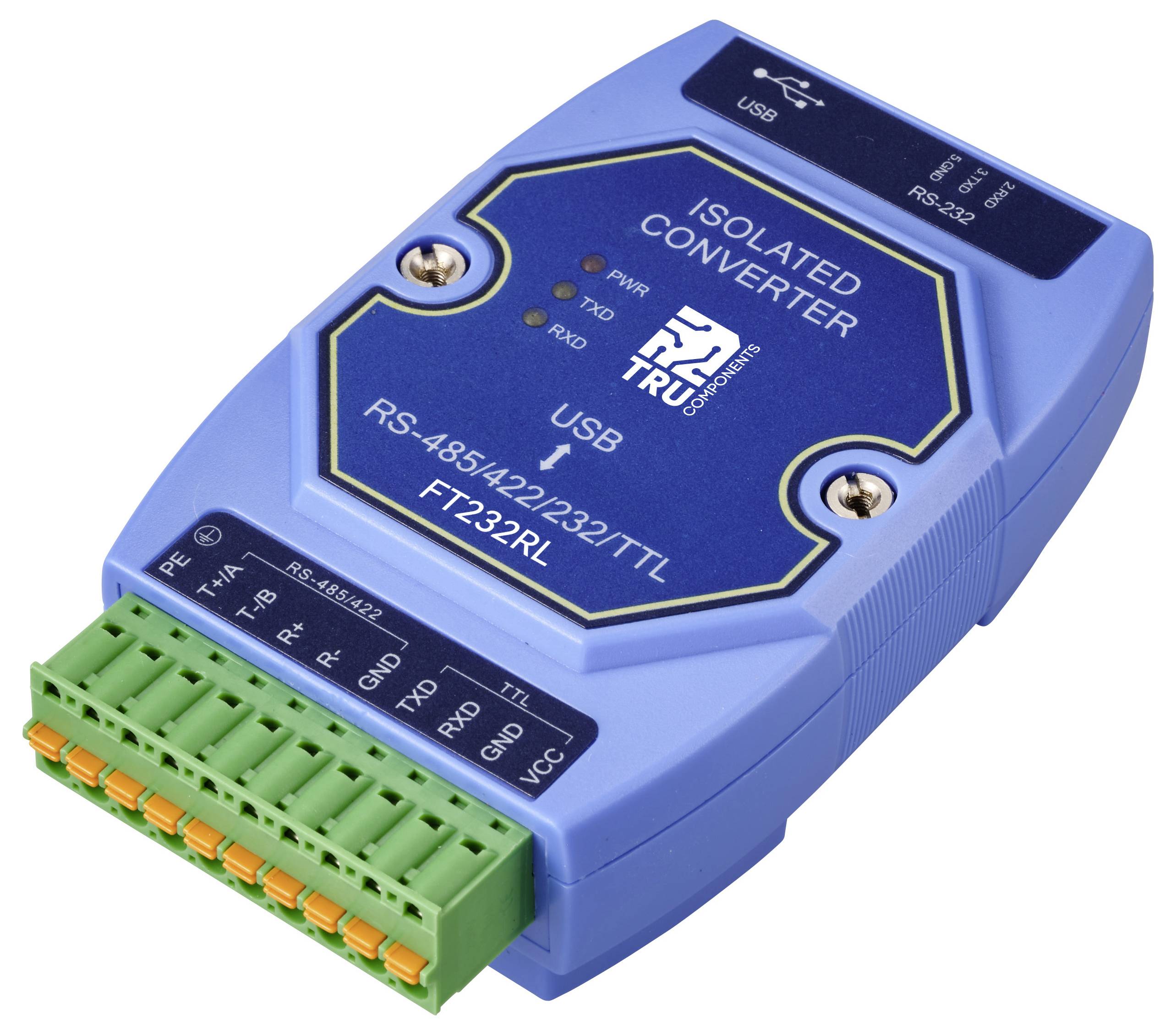

A blue isolated converter, model FT232RL, with USB and RS-485/422/232/TTL interfaces, used for interface conversion.

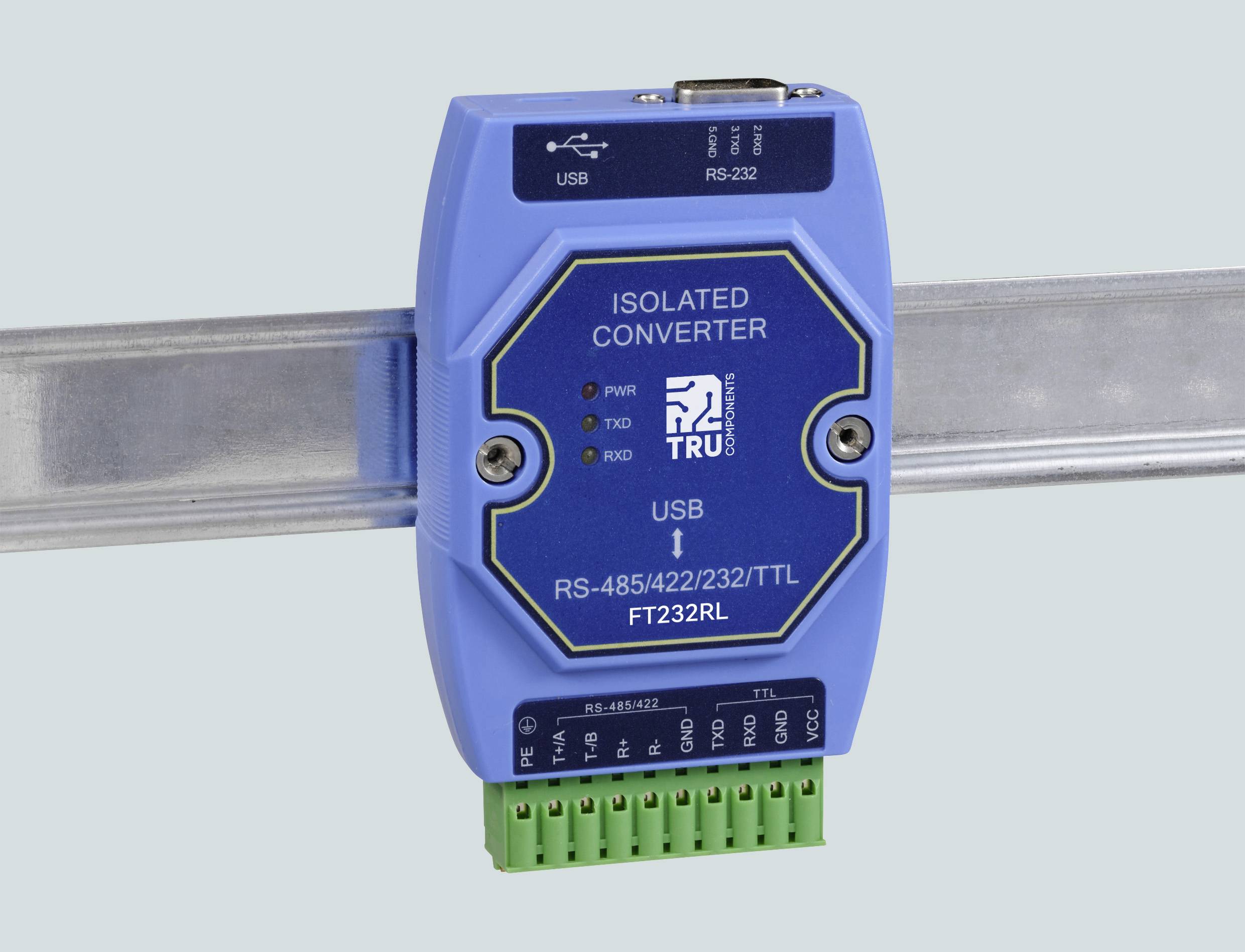

Blue isolated converter mounted on metal rail, with USB and RS-485/422/232/TTL interfaces, suitable for industrial applications.

1/6

TRU COMPONENTS

Our service for you

Fast track dispatch on Wed, 23 Sep

336 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 53.77 / piece)

€ 53.77

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

USB-C® to RS232/485/422 FTDI FT232RL chip

FTDI FT232RL chip
USB-C® interface
Plug-in terminal block
Supports multiple external devices
Isolation voltage: 1500 V
Supports 3.3V and 5V TTL full-duplex communication, which can be switched through internal jumpers
Supports three-wire RS-232 full-duplex communication
Supports four-wire RS-422 full-duplex communication
Supports two-wire RS-485 half-duplex communication
DIN rail installation

Technical specifications

Product type: Serial converter

Interfaces: USB
RS-422
RS-485
D-SUB9

Type: TC-E810-U15

Operating voltage: 3.3 V
5 V

Max. operating temperature: 85 °C

Min. operating temperature: -40 °C

Operating temperature: -40 up to 85 °C

Dim: (W x H) 73 mm x 34 mm

Height: 34 mm

Width: 73 mm

Manufacturer part #: TC-12626056

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3156514 TRU COMPONENTS TC-12626056 TC-E810-U15 Serial converter USB, RS-422, RS-485, D-SUB9 3.3 V, 5 V 1 pc(s)

Description

Scope of delivery

Converter
