Buy TRU COMPONENTS TC-13381240 TC-E18-DTU Z27-485 Data gateway 5 V DC, 28 V DC 1 pc(s)

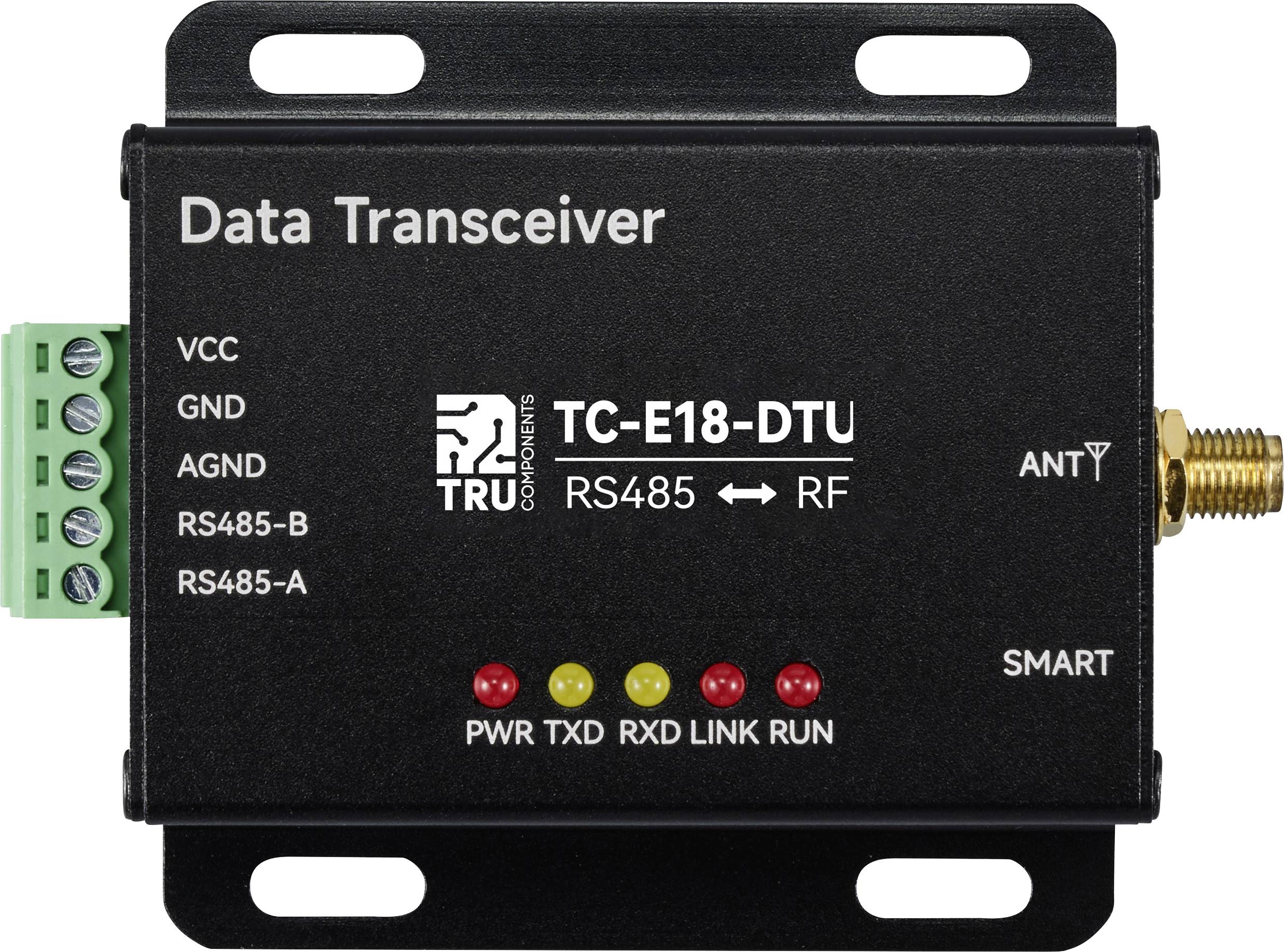

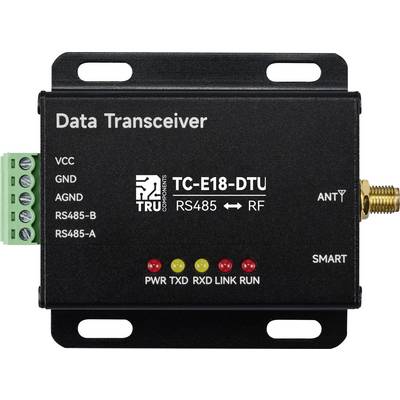

'Data Transceiver TC-E18-DTU' with connections and LEDs: 'PWR', 'TXD', 'RXD', 'LINK', 'RUN'. Supports RS485 to RF connection.

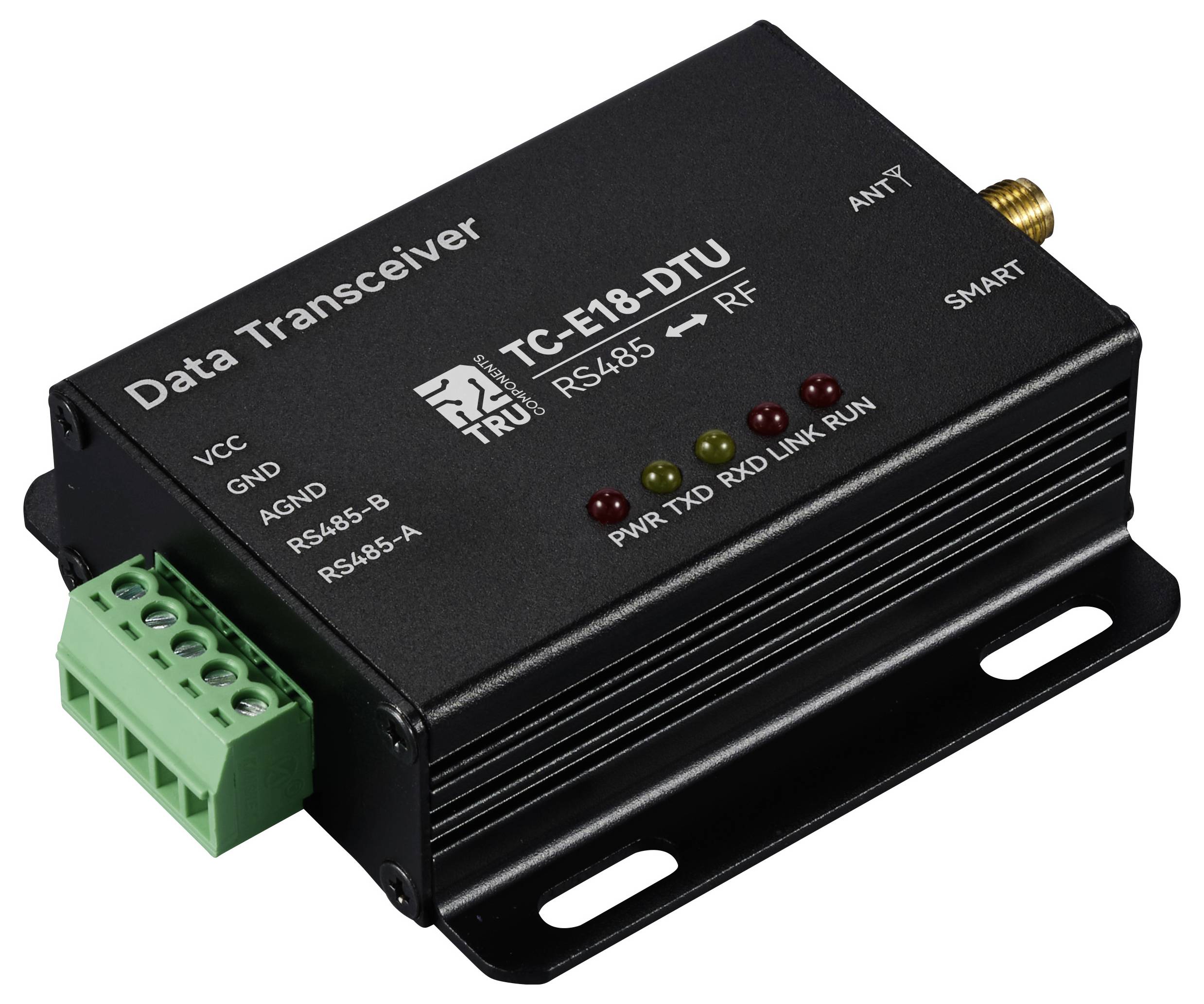

Data Transceiver 'TC-E18-DTU' with RS485 to RF Converter, black housing, green connection terminals and labelling on the top surface.

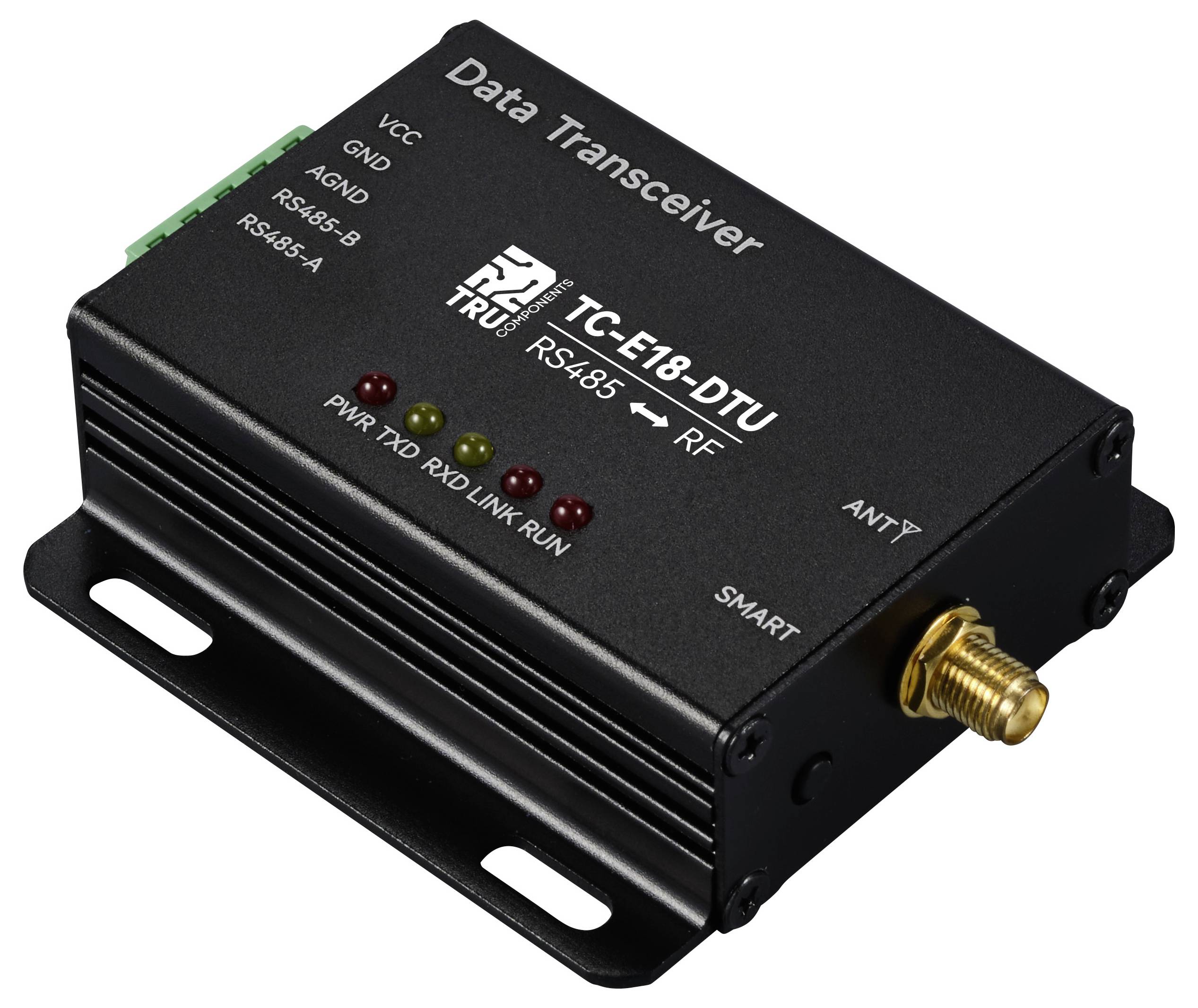

Wireless Data Transceiver with RS485 Interface and Antenna Connector, Model 'TC-E18-DTU', featuring four Status LEDs.

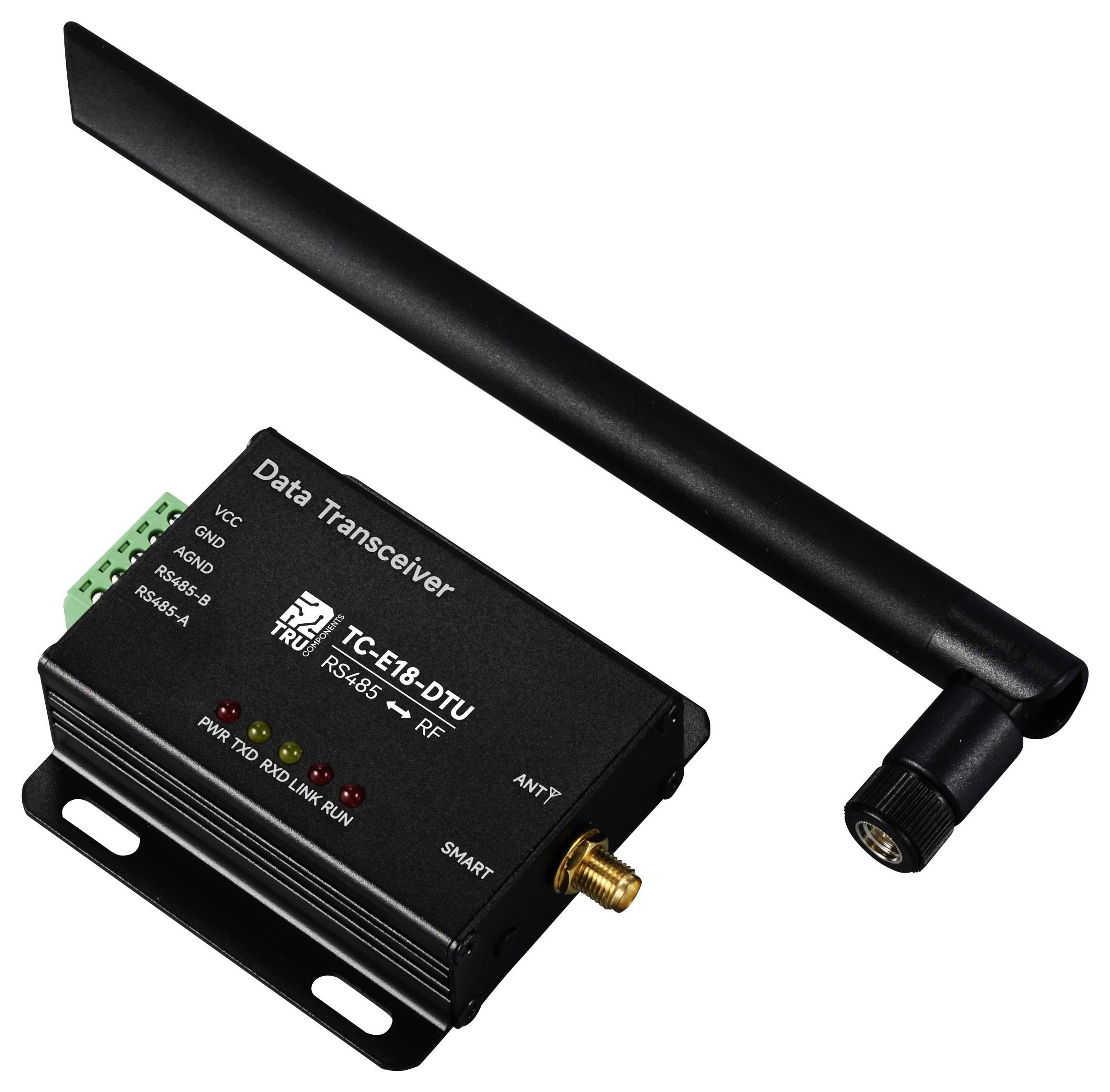

A black radio data transceiver with a long antenna, labelled 'Data Transceiver TC-E18-DTU'. It features multiple ports.

Data transmission system at the centre, surrounded by scenarios: agriculture with tablet, industrial manufacturing, smart home control, hotel service.

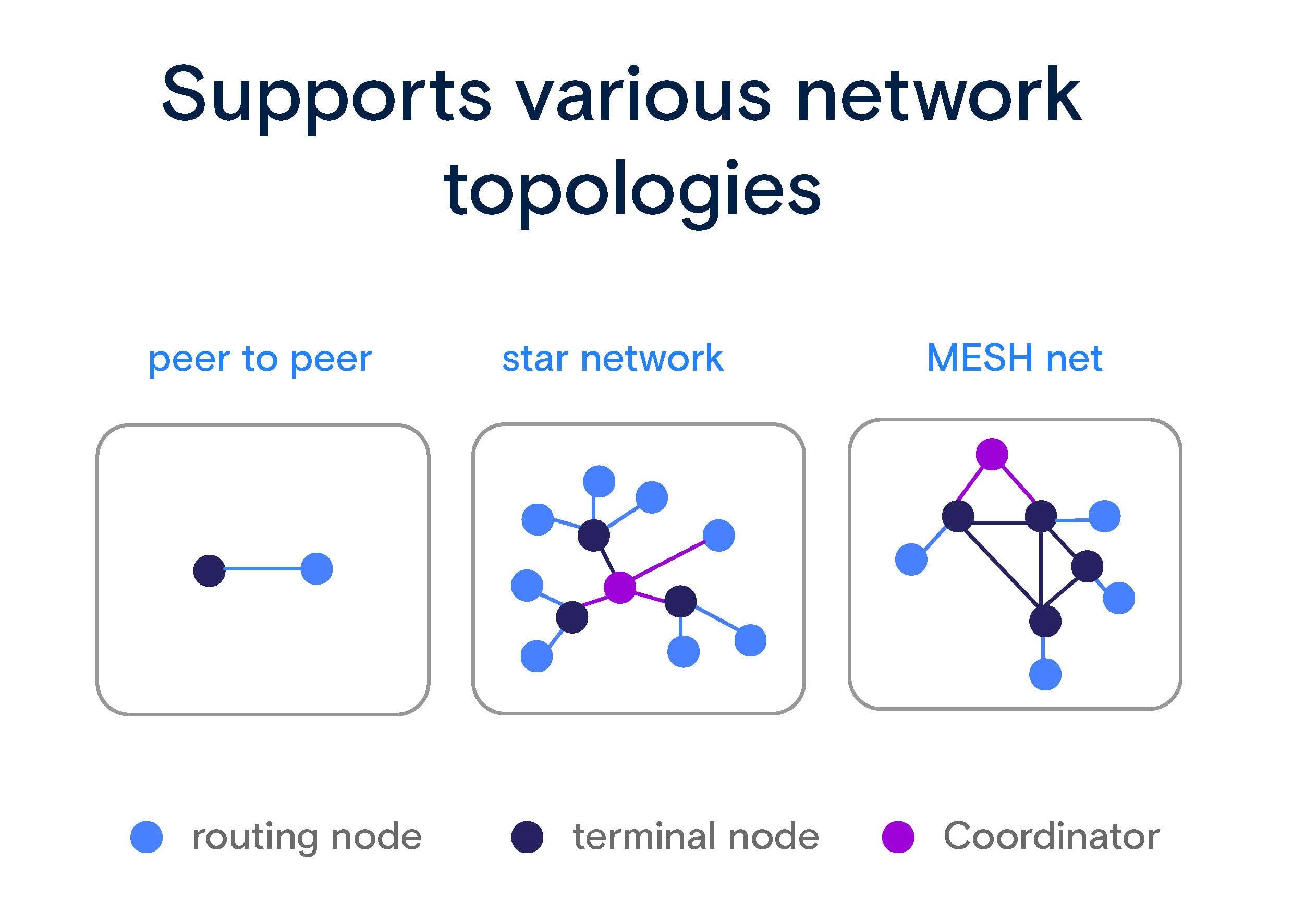

'Three diagrams: Peer-to-Peer, Star Topology and Mesh Network, illustrating different network topologies with nodes and coordinators.'

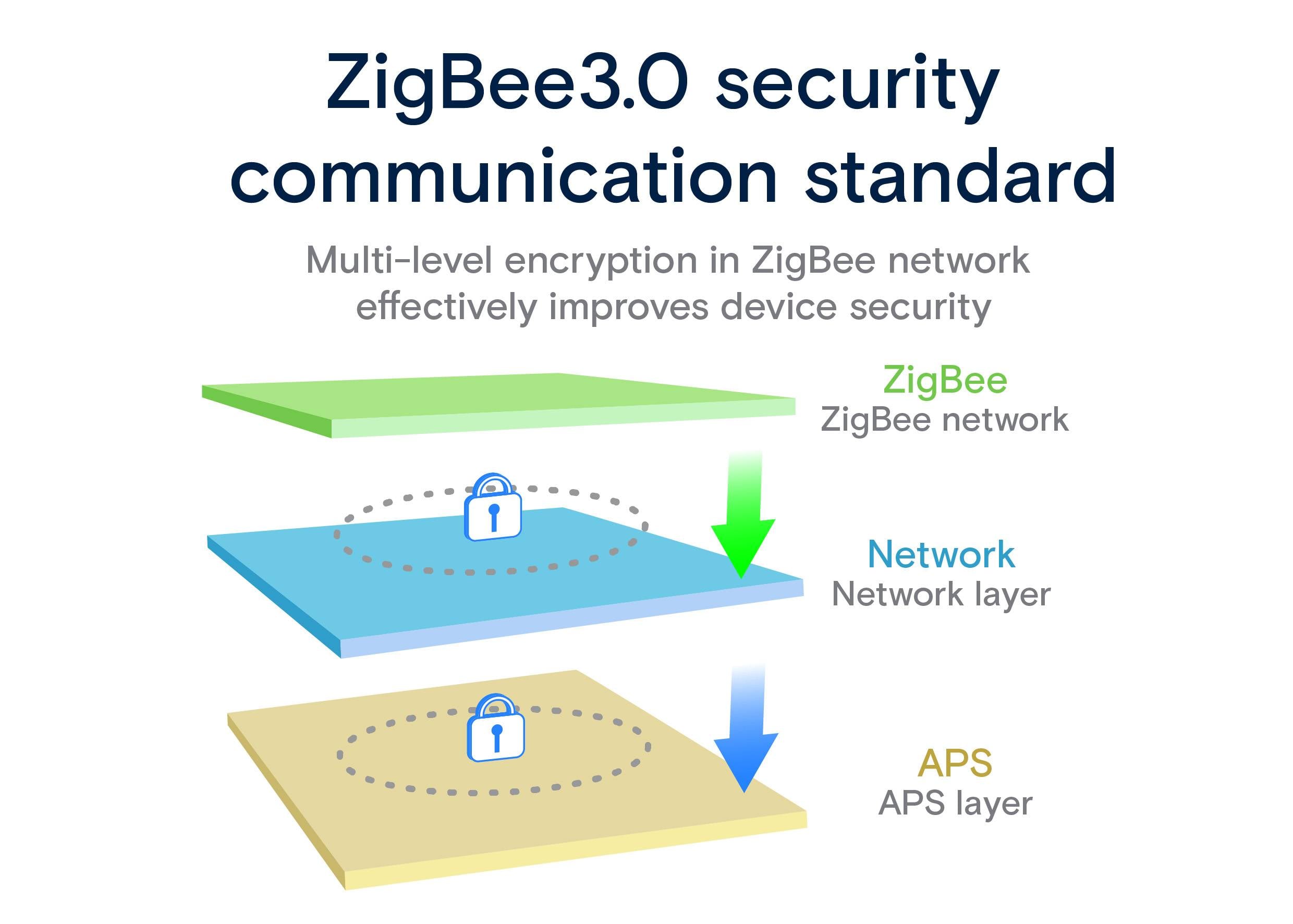

'Representation of the ZigBee 3.0 Security Communication Standard with Multi-Level Encryption to Enhance Device Security.'

1/7

Our service for you

Fast track dispatch on Wed, 23 Sep

290 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 45.37 / piece)

€ 45.37

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Zigbee 3.0 - RS485 Transceiver, 1.2 Km

RF chip: CC2630
Communication interface: RS485
Zigbee 3.0 Standard
Transmission distance: 1.2 Km
Support various network topologies: peer-to-peer, star network, MESH net
Compatible with ZHA, ZLL and other network protocols
Flash: 256K, RAM: 8K

Technical specifications

RF chip: CC2630
Communication interface: RS485
Zigbee 3.0 standard
Transmission distance: 1.2 km
Supports various network topologies
Compatible with ZHA, ZLL and other network protocols
Operating voltage: 5 - 28 VDC
Flash: 256K, RAM: 8K
Role switch
Centralized network management
Supports various network topologies: peer-to-peer, star network, MESH net
Touchlink intelligent and efficient
Network self-healing
Automatic routing
Address search
Serial port configuration
Network PAN-ID change
Module reset
Air configuration
Reset
One-key restore baud rate

Product type: Data gateway

Type: TC-E18-DTU Z27-485

Operating voltage: 5 V DC
28 V DC

Manufacturer part #: TC-13381240

Interfaces: RS485
Zigbee

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3345310 TRU COMPONENTS TC-13381240 TC-E18-DTU Z27-485 Data gateway 5 V DC, 28 V DC 1 pc(s)

Download

Download 3345310 TRU COMPONENTS TC-13381240 TC-E18-DTU Z27-485 Data gateway 5 V DC, 28 V DC 1 pc(s)

Description

The TRU COMPONENTS TC-13381240 TC-E18-DTU Z27-485 is an interface converter, which enables a reliable and powerful radio communication according to the Zigbee 3.0 standard. The TC-E18-DTU Z27-485 interface converter provides a reliable solution for wireless data transmission in industrial applications and enables the easy integration of RS485-enabled devices into modern Zigbee networks.

This text is machine translated.

Scope of delivery

RS485 - Zigbee Transceiver
Antenna
