Eaton EP-501954 SPPVRT12-06-INSERT Surge protection module Surge protection for: PV systems 1 pc(s)

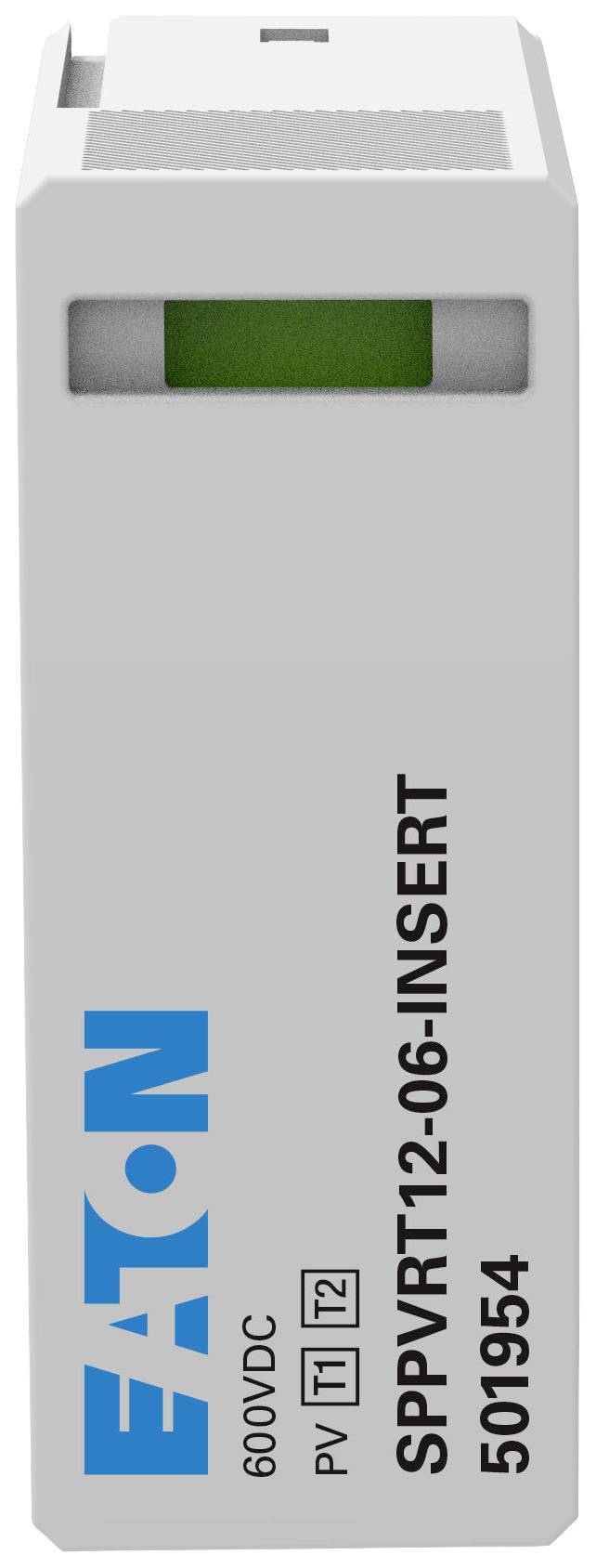

Device deployment module with 'Eaton' inscription, voltage 600VDC, type designation SPPVRT12-06-INSERT, serial number 501954, brand logo on the side.

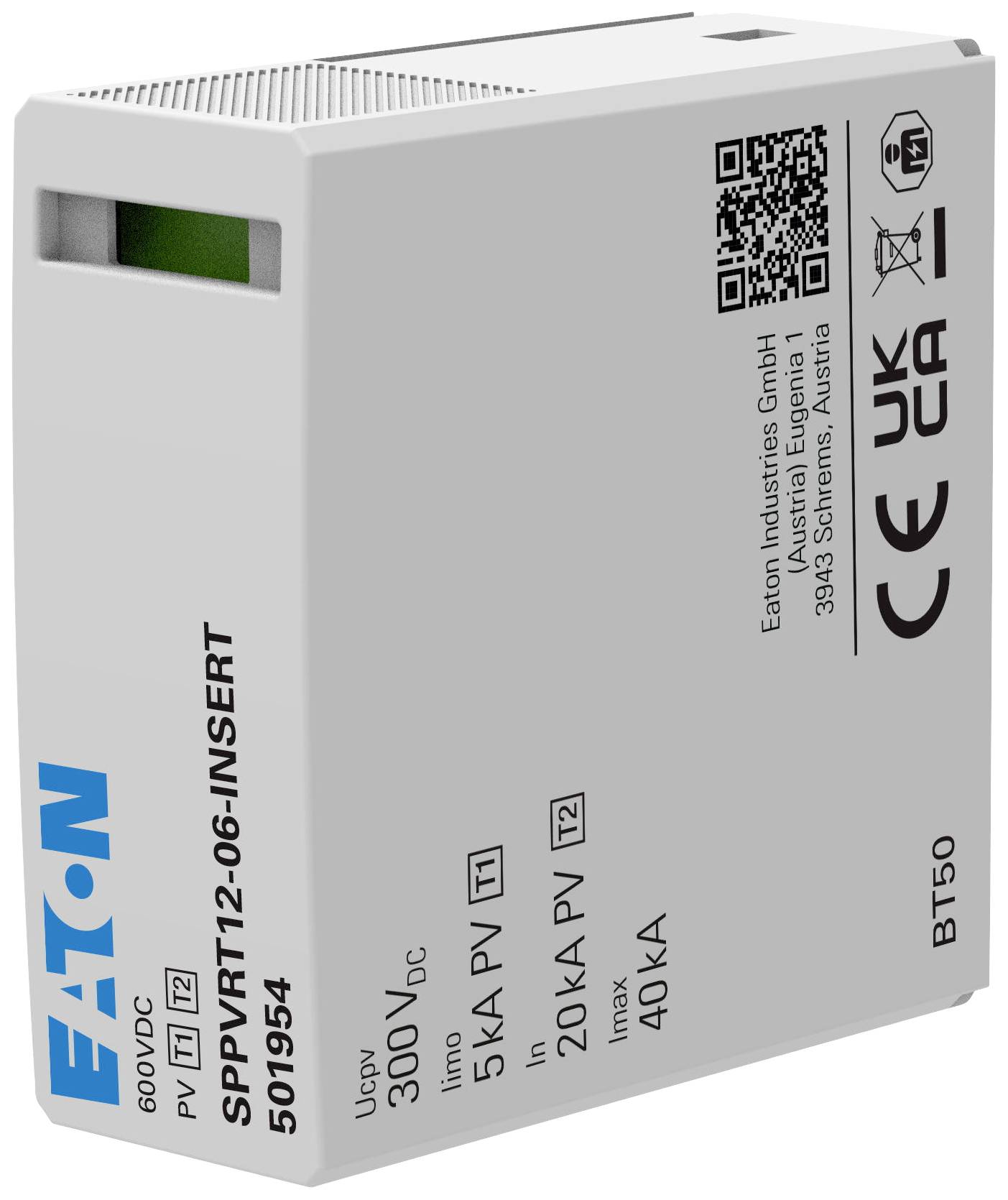

A rectangular electrical component by Eaton with model number 'SPP/V/T2-06-INSERT', technical specifications, and company logo.

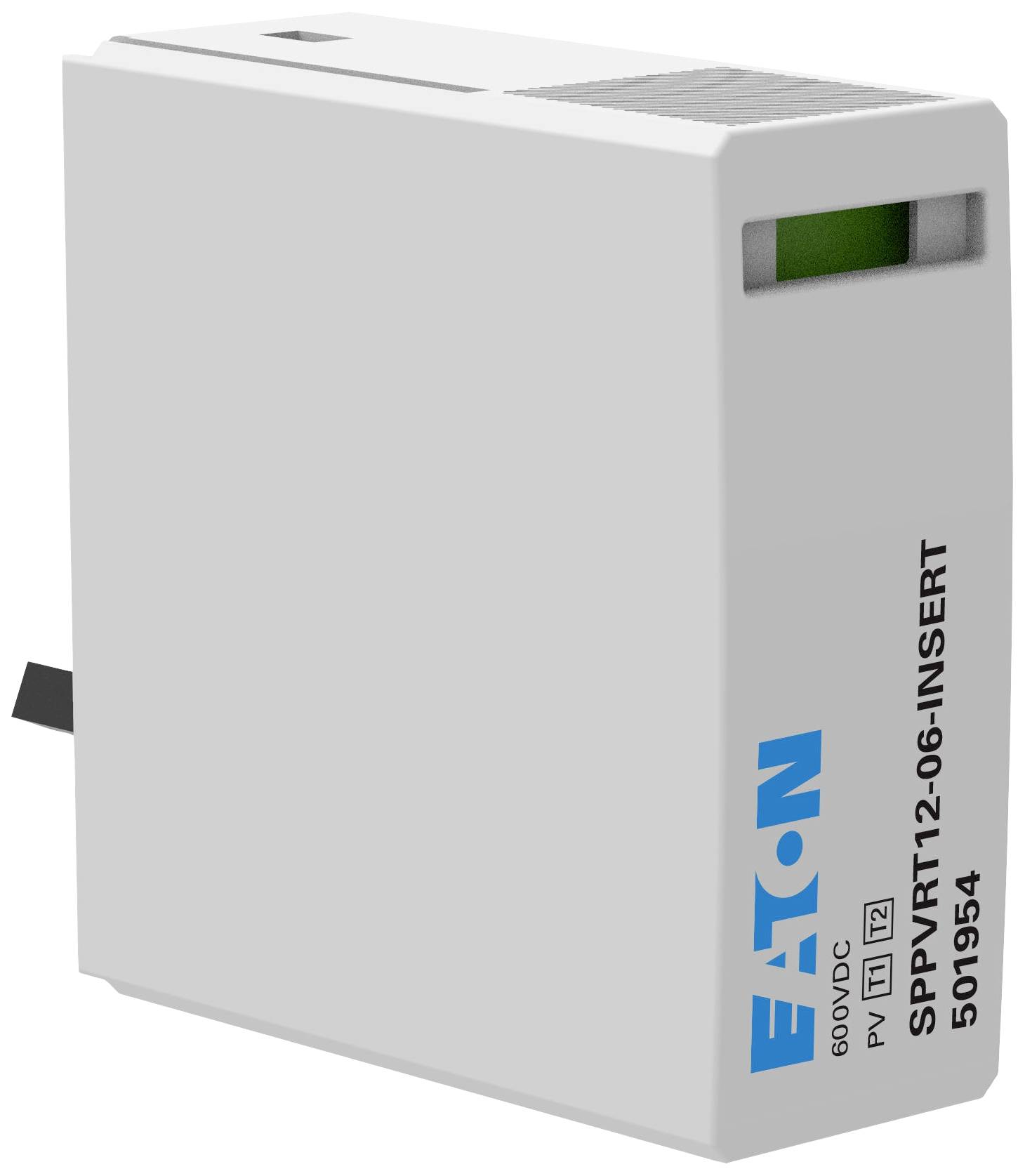

A white device with a blue 'EATON' inscription and model number 'SPPVRT12-06-INSERT'. It has a rectangular shape and side openings.
1/3
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Wed 18 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 224.99 / piece)
€ 224.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Product type

Surge protection module

Surge protection for

PV systems

Nominal voltage

600 V

Manufacturer part #

EP-501954

Factory colour

Grey

Dim

(W x H x D) 18 x 45 x 45 mm

Width

18 mm

Height

45 mm

Depth

45 mm

RoHS-compliant

Yes

Content

1 pc(s)

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 3193607 Eaton EP-501954 SPPVRT12-06-INSERT Surge protection module Surge protection for: PV systems 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3193607 Eaton EP-501954 SPPVRT12-06-INSERT Surge protection module Surge protection for: PV systems 1 pc(s)

Description

Overvoltage protection for protection of PV systems on the DC side, for use according to IEC/EN 60364-5-53. SPPVR is a separate product line for protective devices for photovoltaic systems. SPPVR products can be used in residential areas (distribution boxes) or commercial applications (array protection boxes in photovoltaic systems).

This text is machine translated.

Features

  • For all models, the auxiliary switches are included in the "-AX" types
  • Class 1 and Class 2 Combined Devices for use with direct lightning damage risk
  • Class 2 tested devices for the majority of applications
  • Can be used universally thanks to its design at high temperatures
  • Wide range of products covering 600 to 1,500 VDC applications
  • Special overvoltage protection that protects two MPPTs with one device
  • Future-proof series for all possible application cases
