Eaton P1-40/V/SVB On/Off switch + kill switch, lockable 40 A 690 V 1 x 90 ° Red, Yellow 1 pc(s) Piece

Pictured is a main switch, with a red-yellow housing, used for disconnecting electrical circuits, commonly employed in industrial applications.
A red rotary switch on a yellow plate, marked with 'ON' and 'OFF' positions. Manufacturer name 'EATON' is visible.

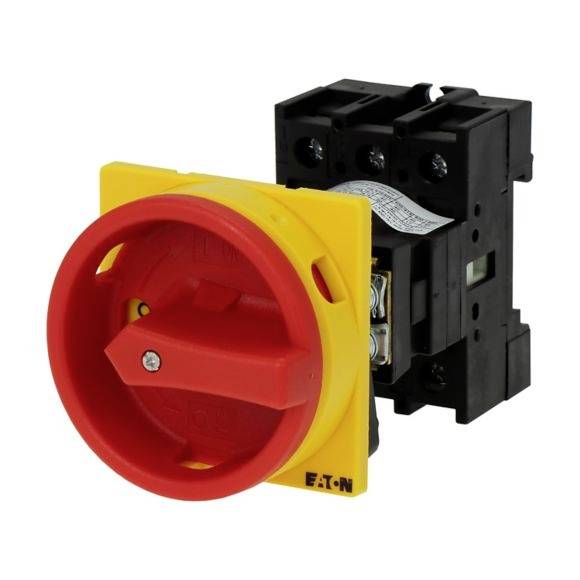

A red rotary switch in front of a black housing, with a yellow frame bearing the 'EATON' logo. Used in electrical applications.
1/3
Packaging type
Piece
Product type
On/Off switch
Operation type
Toggle
Switching angle
1 x 90 °
Mounting type
Stacking kit
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Thu 12 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 97.99 / piece)
€ 97.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Main switch, P1, 40 A, intermediate, 3-pole, Emergency-OFF function, with red rotary handle and yellow locking collar, lockable in 0 position

  • P1-40/V/SVB
  • This text is machine translated.

Technical specifications

Packaging type

Piece

Product type

On/Off switch

Switch/button features

+ kill switch

lockable

Casing/button colour

Red

Yellow

Operation type

Toggle

Switching angle

1 x 90 °

Type

On-off switch, intermediate construction

Mounting type

Stacking kit

Switch position

1 x On/Off

Print motif

OFF/ON

No. of contacts

3

Number of pins

3

Connection

Screws

Switching voltage

690 V

Switching current (max.)

40 A

22 kW

Min. temperature

-25 °C

Max. temperature

+50 °C

Depth

90 mm

Width

54 mm

Height

70 mm

IP65

Content

1 pc(s)

Type

P1-40/V/SVB

Dim

(W x H x D) 54 x 70 x 90 mm

UKCA

not relevant
